Aussie 6TV1S00KP1 - Burner Removal and Cleaning

21

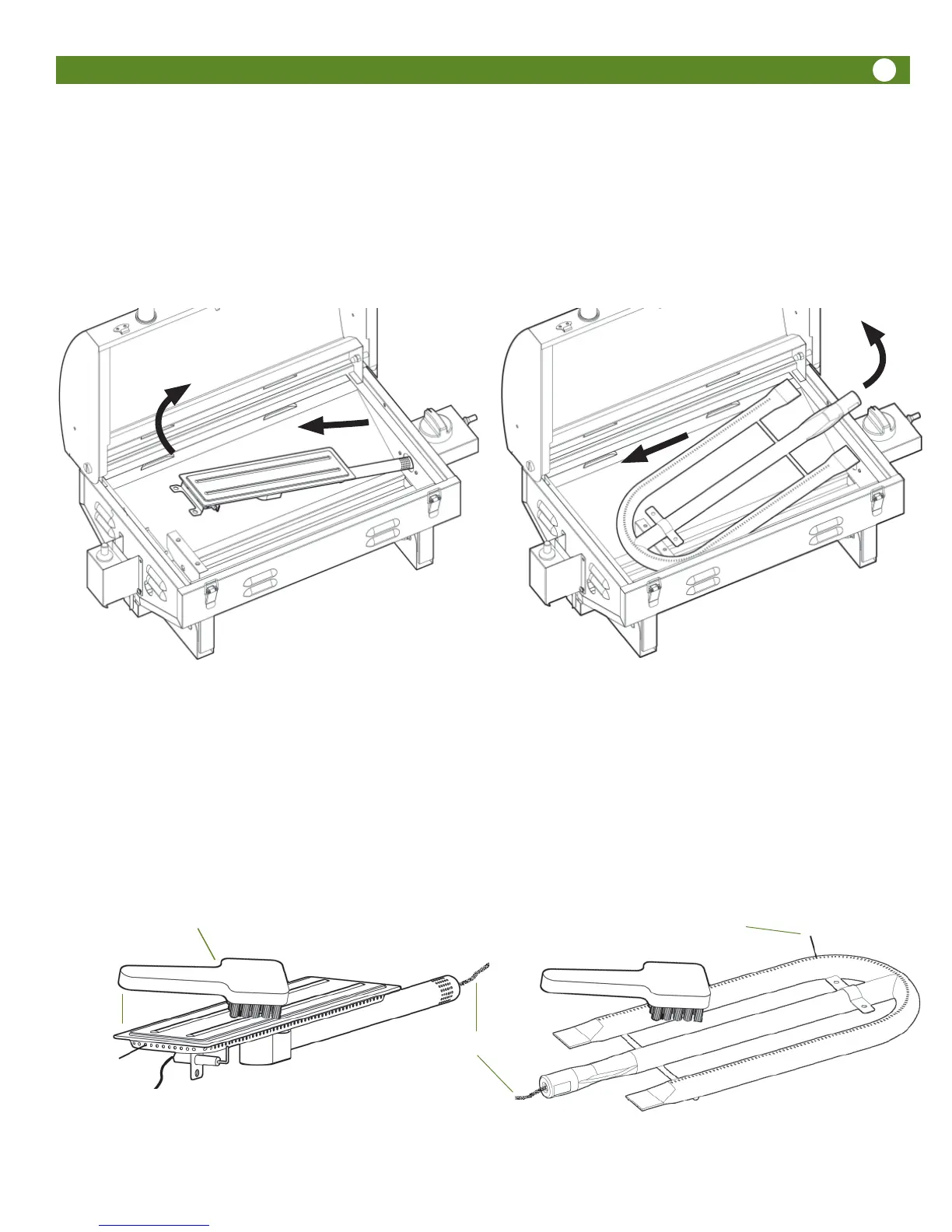

4a.(6TV1S) Detach the electrode wire from the igniter and lift up gently on the back of the burner while sliding the
end of the burner off of the valve nozzle (Fig. 8). Gently pull the electrode wire back through the firebowl until it
comes free with the burner.
4a.(6TV1U) Slide U-Tube burner to the left so that the end of the burner is off of the valve nozzle and inside the fire-
bowl. Lift the venturi end of the burner up first then slide the burner out from under the electrode (Fig. 8).
Fig. 8
6TV1S
Fig. 8
6TV1U
5. Use a pipe cleaner to clear insect nests or debris from the inlet hole of Main Burner (Fig. 9)
6. Open up the Burner holes (Fig. 9) with a small nail or wire. Use a non-metallic brush to remove food particles and
corrosion from the Burner surfaces.
Fig. 9
Non-metallic
Wire Brush
Pipe Cleaner
Open up Main Burner holes
with a small nail or wire.
Open up Main Burner holes
with a small nail or wire.
