Hanger Bracket Assembly and Use
Hanger and Leg Brackets Assembly

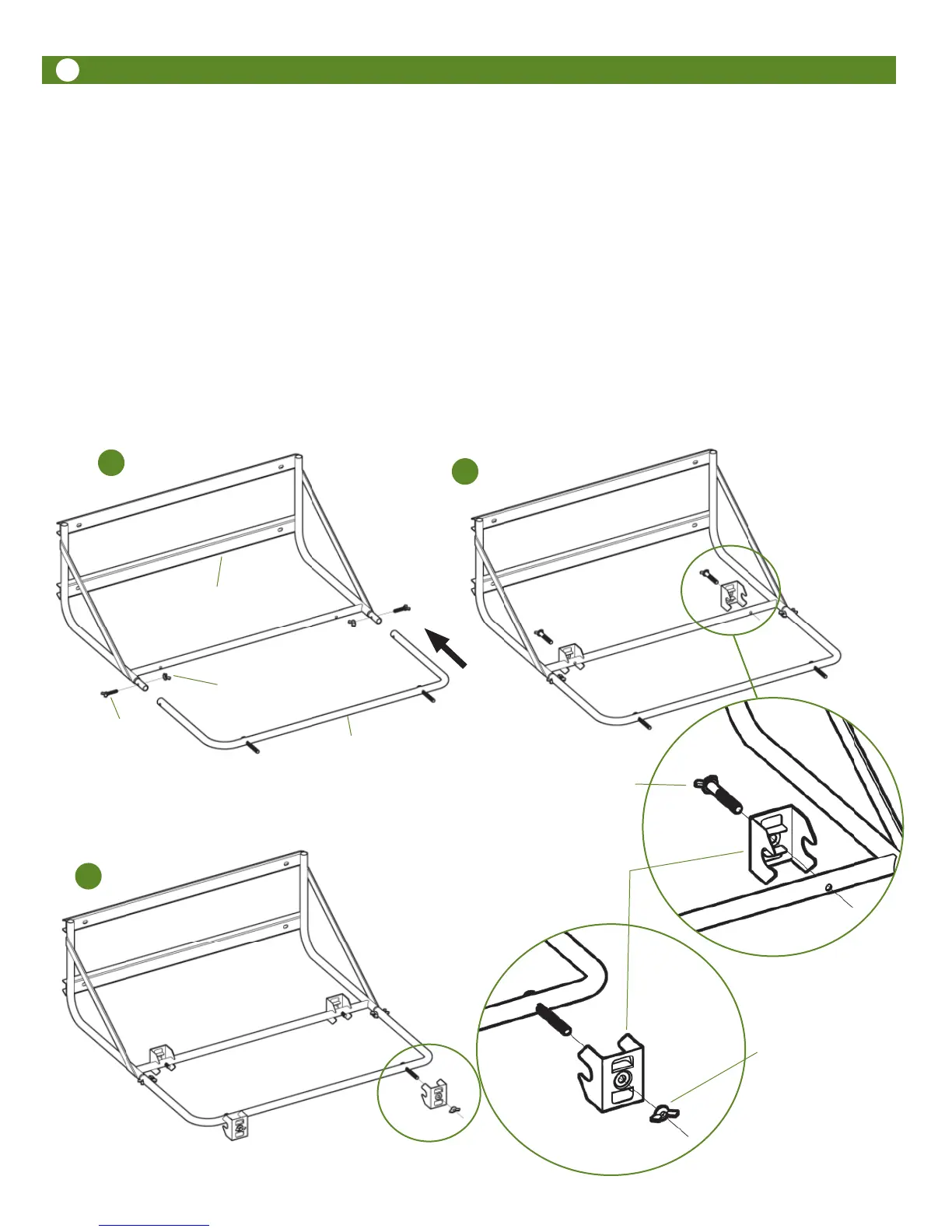

A. Slide the U-Tube on to the tapered ends of the Hanger Bracket Frame. Align holes in both parts and fasten in place
with two 10-24 wingbolts and wingnuts.
B. Attach two Leg Brackets to the crosstube of the Hanger Bracket Frame oriented as shown. Insert the 1/4-20 Leg
Bracket Wingbolt through the hole in the Leg Bracket and into the threaded hole on the crosstube. Tighten wingbolt
securely by hand.
C. Place a Leg Bracket onto each threaded stud that extends from the front of the U-Tube. Start threading a 1/4-20 Leg
Bracket Wingnut onto each threaded stud. DO NOT TIGHTEN AT THIS STAGE. (Only 2 or 3 turns)
A
B
C
U-Tube
Hanger Bracket Frame
Hanger Bracket
Wingbolt
Hanger Bracket
Wingnut
Leg Bracket
Wingbolt
Leg Bracket
Leg Bracket
Wingnut
