Signal Meaning
The green LED [B] is lit with a steady
light and the red LED [A] blinks two
times per second during start up.
The START pushbutton is activated.
The green [B] and red [A] LEDs blink
alternating.
30 s left before the Transmitting Unit automatically
switches o.
The green LED [B] repeats the
sequence: 3 blinks and a pause, and
the red LED [A] is steady on during
start up.
The UNPAIR procedure has been carried out.

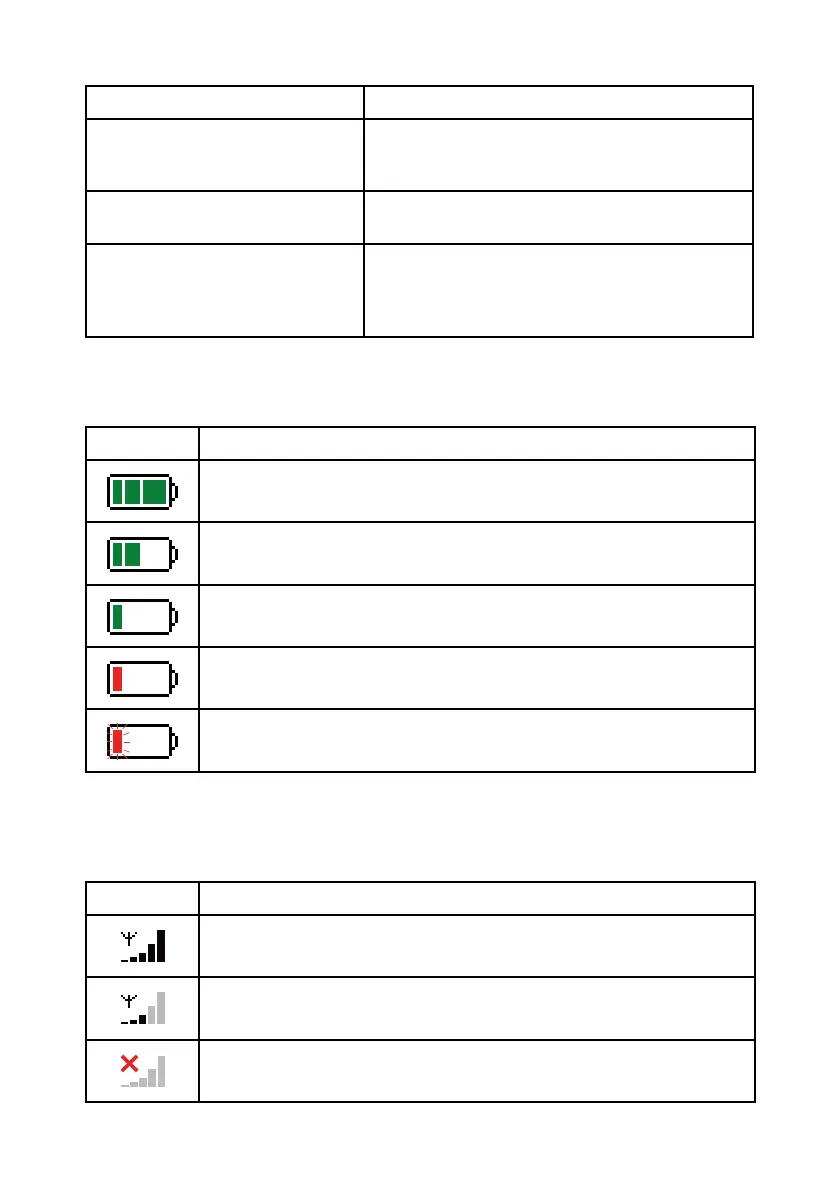

7.2.2 Battery [D]
The Battery icon [D] has a bar, whose length and colour indicate the battery power level.
Symbol Meaning
High power level (green bar).
Medium power level (green bar).
Low power level (green bar): the battery has less than 1h run time from the
beginning of this signal.
Very low power level (red bar): the battery has 10min run time from the beginning
of this signal.
The Unit is about to switch o (blinking red bar): the battery has 2min run time
from the beginning of this signal.
7.2.3 Radio link [E]
The Radio link icon [E] consists of ve vertical bars. The amount of dark bars is proportional
to the quality of radio link.
Symbol Meaning
Strong radio link signal.
Medium radio link signal.
No radio link.
AUTEC - AIR SERIES
Light signals 23
LIULK6N03_eng-00
