Live Data
On-Board Monitor
Component Test
Vehicle Information
Vehicle Status
NOTE
Some functions are supported only on certain vehicle manufacturers.
Function Descriptions
This section describes the various functions of each diagnostic option:
DTC & FFD
When this function is selected, the screen displays a list of Stored Codes
and Pending Codes. When Freeze Frame data of certain DTCs are
available for viewing, a snowflake button will display on the right side of the
DTC item. The erase codes function can be applied by tapping the Clear
DTC button at the bottom of the screen.

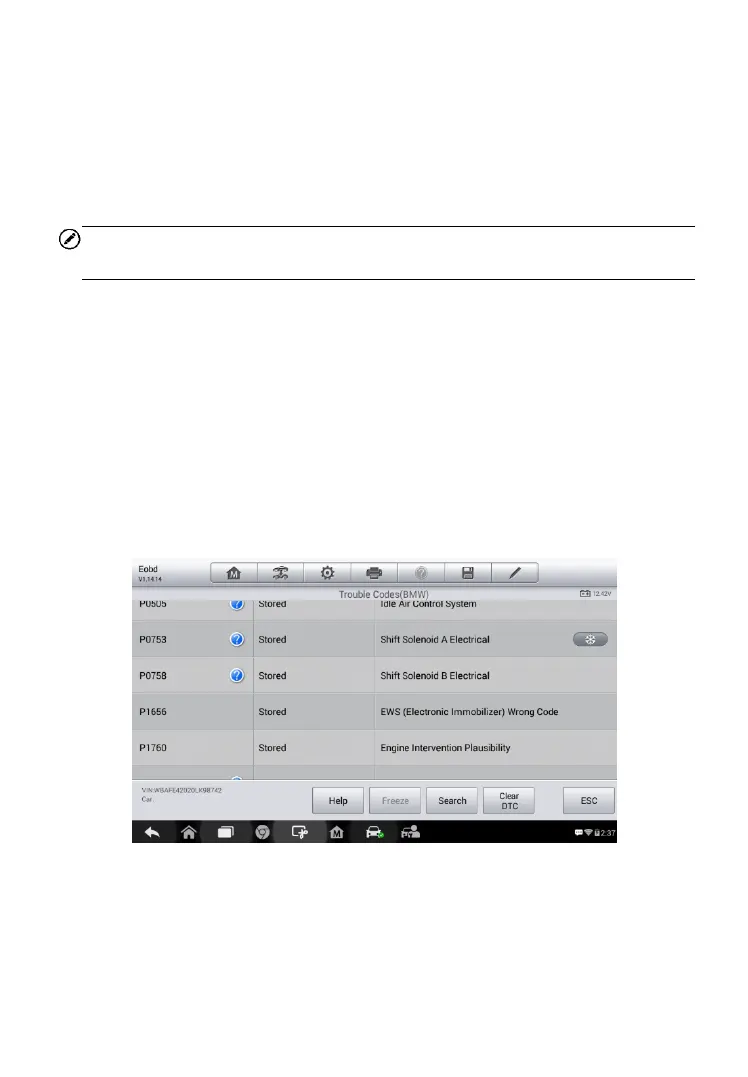

Figure 4-16 Sample DTC & FFD Screen
Stored Codes
Stored codes are the current emission related DTCs from the ECM of the
vehicle. OBD II/EOBD Codes have a priority according to their emission
severity, with higher priority codes overwriting lower priority codes. The
To Next Page
