1. Top Toolbar Buttons – navigates and makes various controls of
the application.
2. Main Section – displays all the vehicle history records.
To activate a test session for the recorded vehicle
1. Tap the Shop Manager application on the MaxiCheck Job Menu.
2. Select Vehicle History
3. Tap the Diagnostics button at the bottom of the thumbnail of a
vehicle record item. Or,
4. Select a vehicle record item by tapping the thumbnail.
5. A Historical Test record displays, check the recorded
information of the recorded test vehicle, and tap the Diagnostics
button on the upper right corner.
6. The vehicle’s Diagnostics screen displays, now a new
diagnostic session is activated, see Diagnosis on page 25
for detailed instructions on vehicle diagnostic operations.
Historical Test Record
The Historical Test record sheet of the tested vehicle is a detailed data
form that includes all general information of the vehicle such as vehicle
year, make and model and the retrieved diagnostic trouble codes from
the previous test sessions, as well as other service details that can be
added manually by the technician himself.

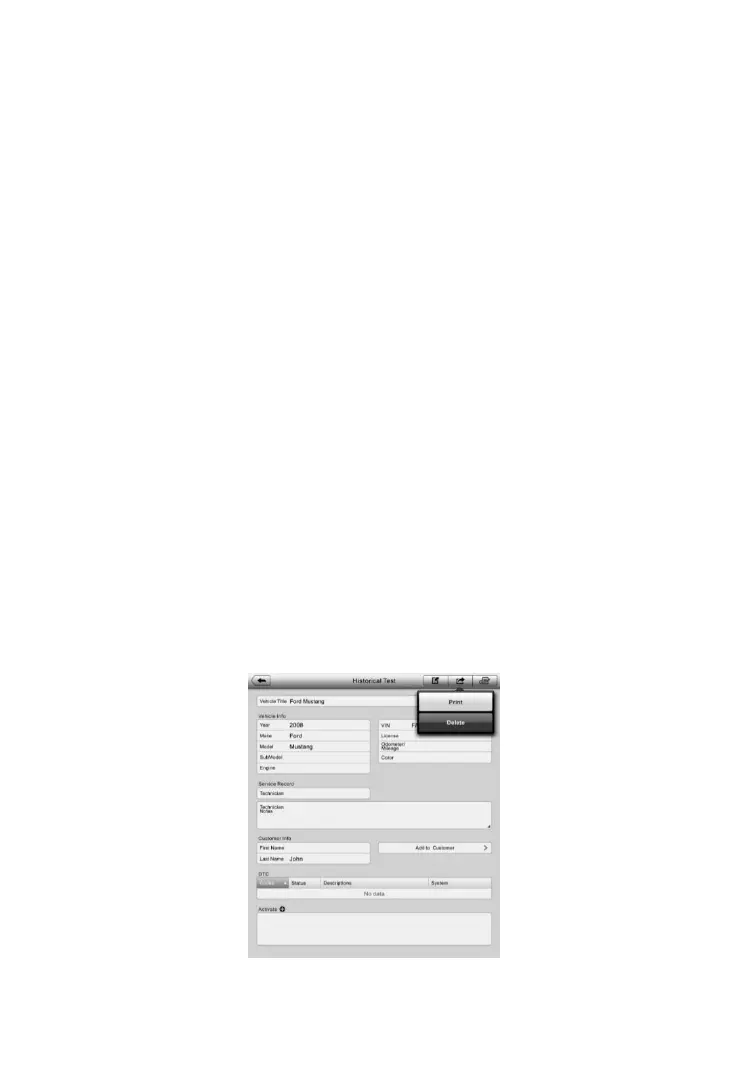

Figure 6-2 Sample Historical Test Record Sheet
