3

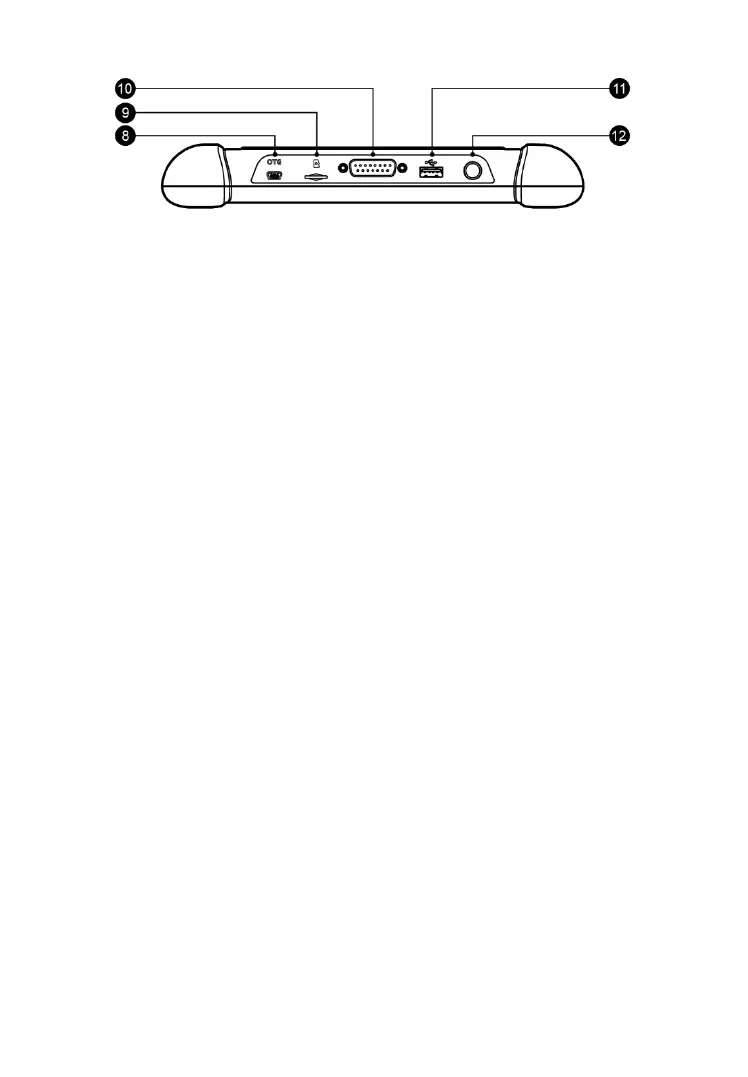

Figure 2-3 Display Tablet Top View
8. Mini USB OTG Port
9. Micro SD Card Slot – holds the micro SD card.
10. DB15-Pin Port – connects the main cable.
11. USB Port
12. Lock/Power Button – turns the device on & off with long press, or locks
the screen with short press.
Power Sources
The Display Tablet can receive power from any of the following sources:
Internal Battery Pack
Vehicle Power
External Power Supply
Internal Battery Pack
The Display Tablet can be powered with the internal rechargeable battery,
which if fully charged can provide sufficient power for about 4.5 hours of
continuous operation.
Vehicle Power
When the Display Tablet is connected to the test vehicle via the main cable,
the Display Tablet automatically receives power from the vehicle.
External Power Supply
The Display Tablet can be powered from a wall socket using the mini USB
cable and the USB external power adapter. The external power supply also
charges the internal battery pack.
