3 Tool Information
Functional Description

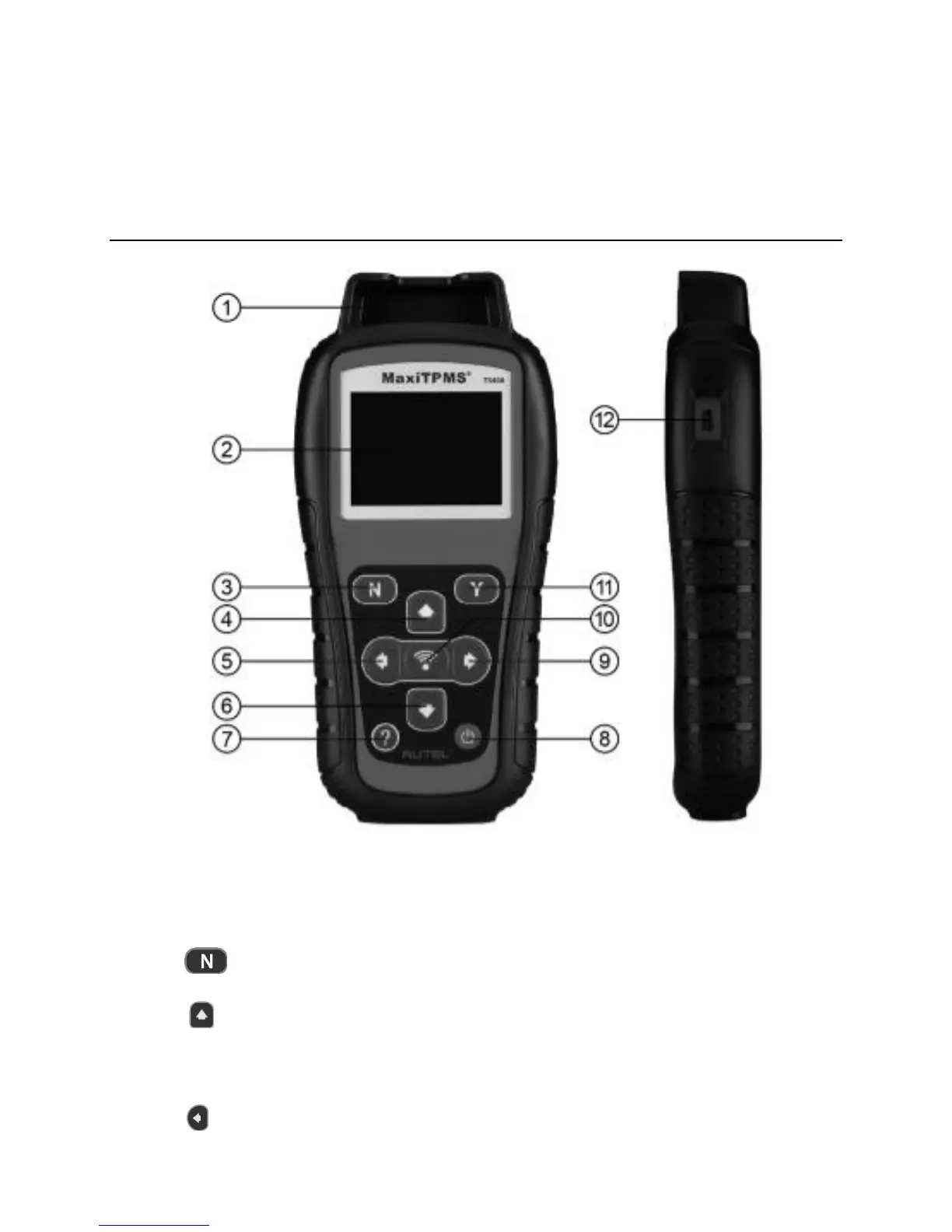

Figure 3-1 MaxiTPMS TS408
1. SENSOR SLOT – holds the MX-Sensor need to be programmed.
2. LCD DISPLAY – displays the menus and test screens.
3. N BUTTON – cancels a selection (or action) from a menu or return
to previous menu.
4. UP SCROLL BUTTON – moves up through menu and submenu
items in menu mode. When more than one set of data are retrieved, use
this button to move up to previous screens for additional data. It is also
used to view previous trouble code when viewing DTCs.
5. LEFT SCROLL BUTTON – when scrolling through a screen of data
or text, moves to previous character and views additional information on
