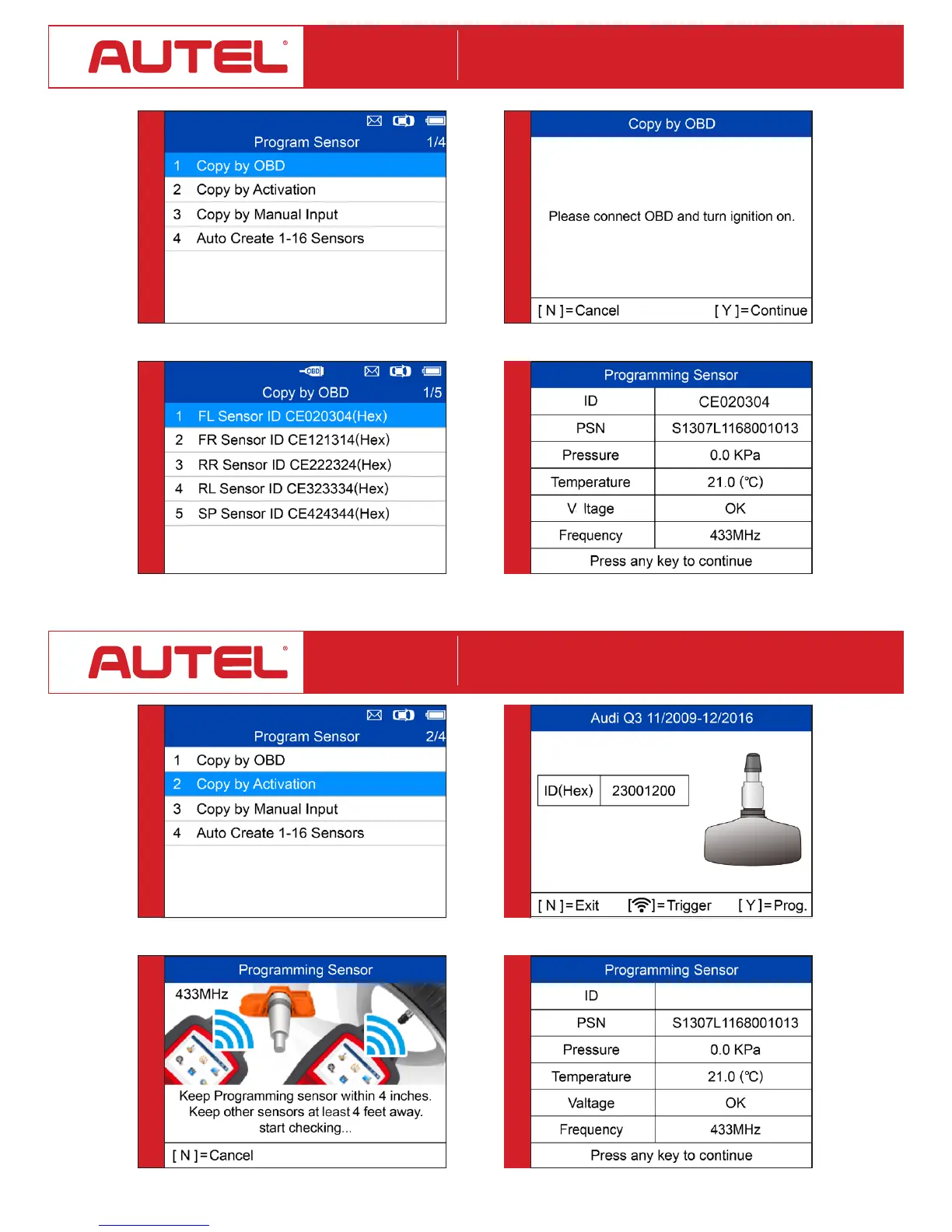

QuickStart Guide: MX-Sensor Programming
Advance Mode: Copy by OBD
QuickStart Guide: MX-Sensor Programming
Advance Mode: Copy by Activation
TS508
TS508
• PlaceoneMX-Sensornearthetopofthetool
• SelecttirelocationandIDtobecopiedandpressYto
programthenewMX-Sensor
3
• SelectCopy by Activation
• Placethetoolnearthesensortobecopied
• PlaceanewMX-Sensornearthetopofthedevice
toprogram
• SelectCopy by OBD
1
• ConnecttooltovehicleviaOBDIIcable,turnignitionon
• PressYtocontinue
2
- Sensor programmed.
- MX-sensor ID is copied from the sensor ID stored in
ECU.
4
- Trigger successful.
• PressYtoprogramtheoriginalsensorIDtoMX-Sensor
23001200
- Sensor programmed.
- MX-sensor ID is copied from the activated sensor ID.
3
1 2
4
