Auto Meter SB-5 - Page 19

BLACK RED
6 Volts6 Volts 6 Volts
BLACK RED
6 or 12 Volt
Battery
Parallel 6 or 12 Volt Batteries

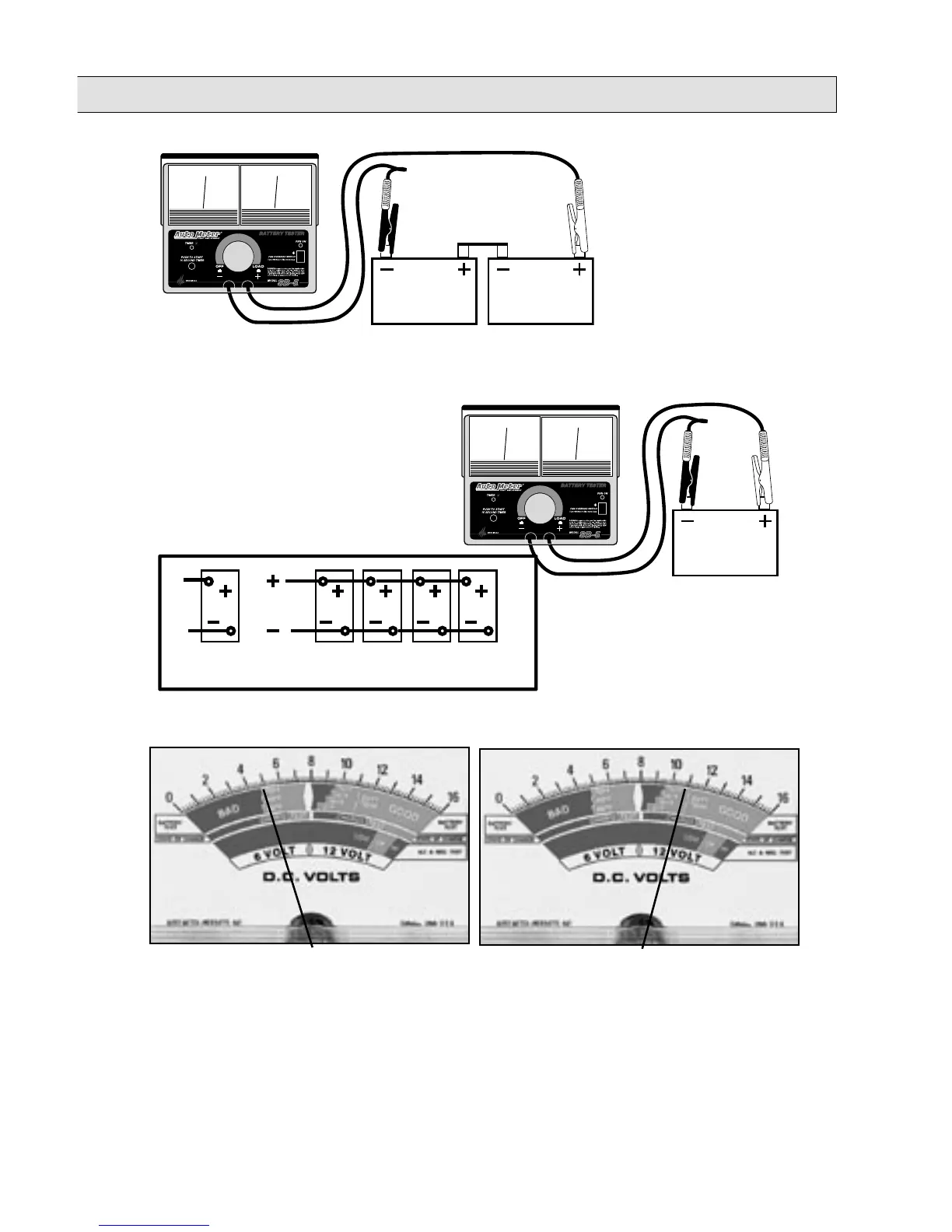

ALTERNATOR TESTS
12 Volt System Test
Using Two 6 Volt
Batteries In Series
Using the hookup above follow test procedures on page 12.
6 or 12 Volt System Tests
Using Single Or Multiple
Batteries Connected In Parallel
On 6 Volt systems use the 6
Volt scale
Use the scale appropriate
for the system test. Follow
the test procedures on
page 12.
On 12 Volt Systems use the
12 Volt scale.
6
19
