APPENDIX
BATTERY LOAD TEST
1. Turn load knob to apply a load equal to 1/2 the Cold Crank rating or 3
times the Amp-Hour rating for 15 seconds.
2. Hold proper load for 15 seconds, observe the voltage reading, and
then immediately decrease the load until the fan stops and the
ammeter reads zero.

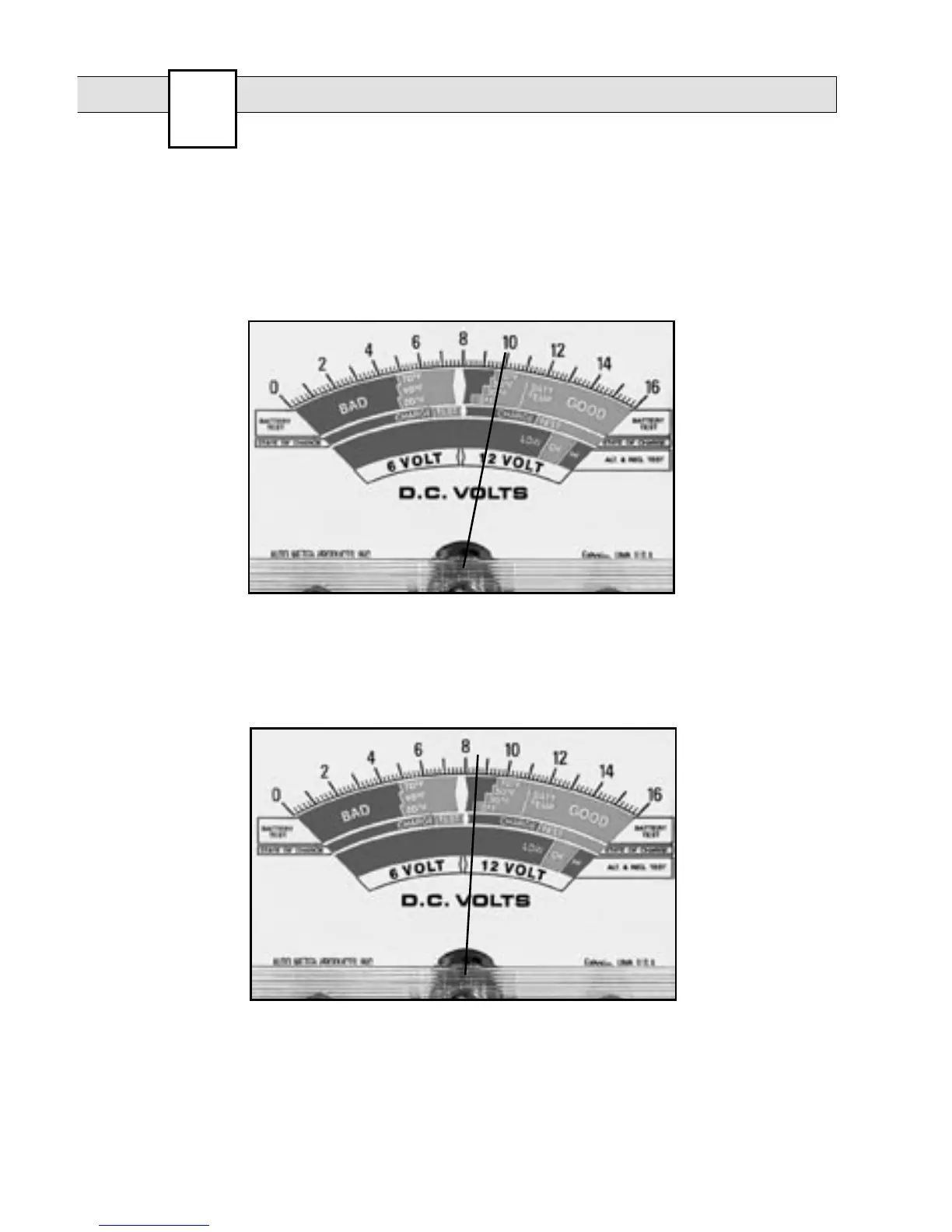

3. If the Voltmeter reads in the green zone for the approximate battery
temperature, the battery passed the load test (see example above).
If the Voltmeter reads in the red zone, replace the battery (see
example below). Use the battery Voltage Chart in Appendix B page
17 to compare test results.
NOTE: For Multiple Battery System Tests see Appendix C
WARNING: Be sure load is off before attaching or removing load clamps
to prevent arcing and potential explosion from battery gases. Always
shield eyes and keep sparks, ames or cigarettes away from batteries.
