Pilot Operating Handbook
Cavalon
SECTION 7
SYSTEM DESCRIPTION
AutoGyro_POH_Cavalon 915iS Revision 1.0 – Issue Date 08.MAY.2019 7-19

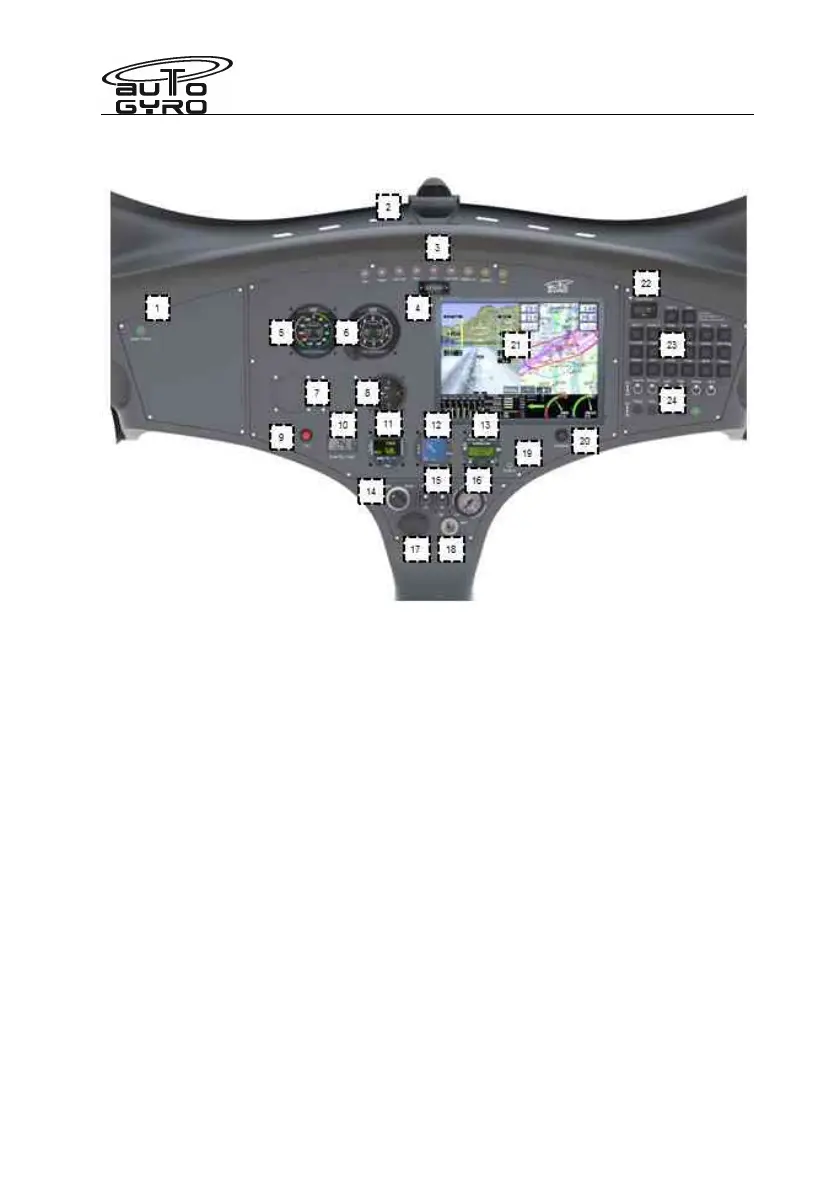

1 – Water temperature indication 15 – LANE switches
2 – Magnetic compass 16 – Trim/brake pressure gauge
3 – Warning lights 17 – 12V power receptacle (if installed)
4 – Lateral trim indicator 18 – Master/starter switch
5 – Air speed indicator 19 – Audio in (if installed)
6 – Altimeter 20 – Pre-rotator overdrive/override
7 – Cut-out 57mm / 2 ¼” for optional inst. 21 – Glass Cockpit
8 – Vertical Speed Indicator (if installed) 22 – Hour meter
9 – Cooling fan manual activation 23 – Circuit Breaker Panel
10 – deleted 24 – Switches
11 – ATC transponder (if installed)
12 – Collision Avoidance System (if inst.)
13 – Radio (if installed)
14 – Pneumatic mode selector
