Pilot Operating Handbook
Cavalon
SECTION 7
SYSTEM DESCRIPTION
AutoGyro_POH_Cavalon 915iS Revision 1.0 – Issue Date 08.MAY.2019 7-20

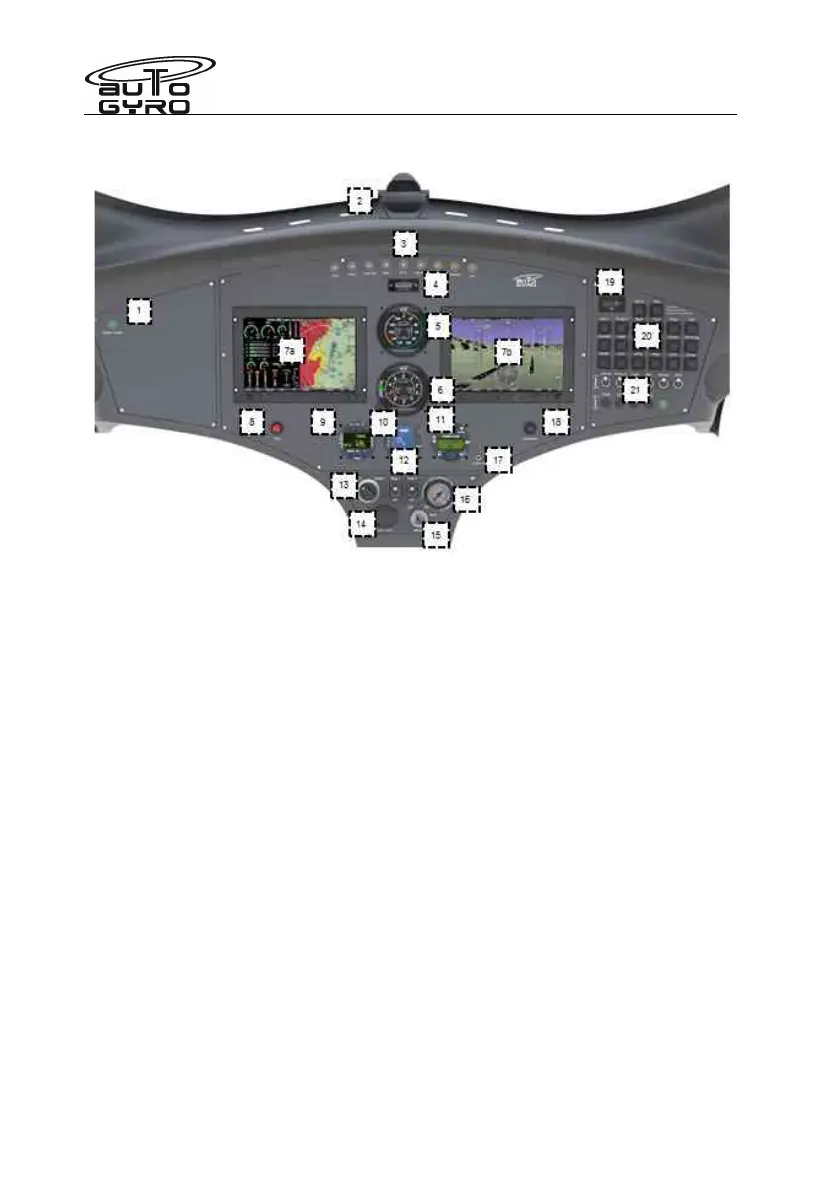

1 – Water temperature indication 13 – Pneumatic mode selector
2 – Magnetic compass 14 – 12V power receptacle (if installed)
3 – Warning lights 15 – Master/starter switch
4 – Lateral trim indicator 16 – Trim/brake pressure gauge
5 – Air speed indicator 17 – Audio in (if installed) OAT indicator
6 – Altimeter 18 – Pre-rotator overdrive/override
7a – Glass Cockpit Display I
7b – Glass Cockpit Display II
19 – Hour meter
20 – Circuit Breaker Panel
8 – Cooling fan manual activation 21 – Switches
9 – ATC transponder (if installed)
10 – Collision Avoidance System (if inst.)
11 – Radio (if installed)
12 – LANE switches
