8. PCB Detail
8.1 PCB Layout
D2606-1
Taken from Drawing No: 4280-001 Issue: Q Date:10.09.96
Conventional Components,
component side
Surface Mount Components,
component side
Conventional Components,
underside
Surface Mount Components,
underside

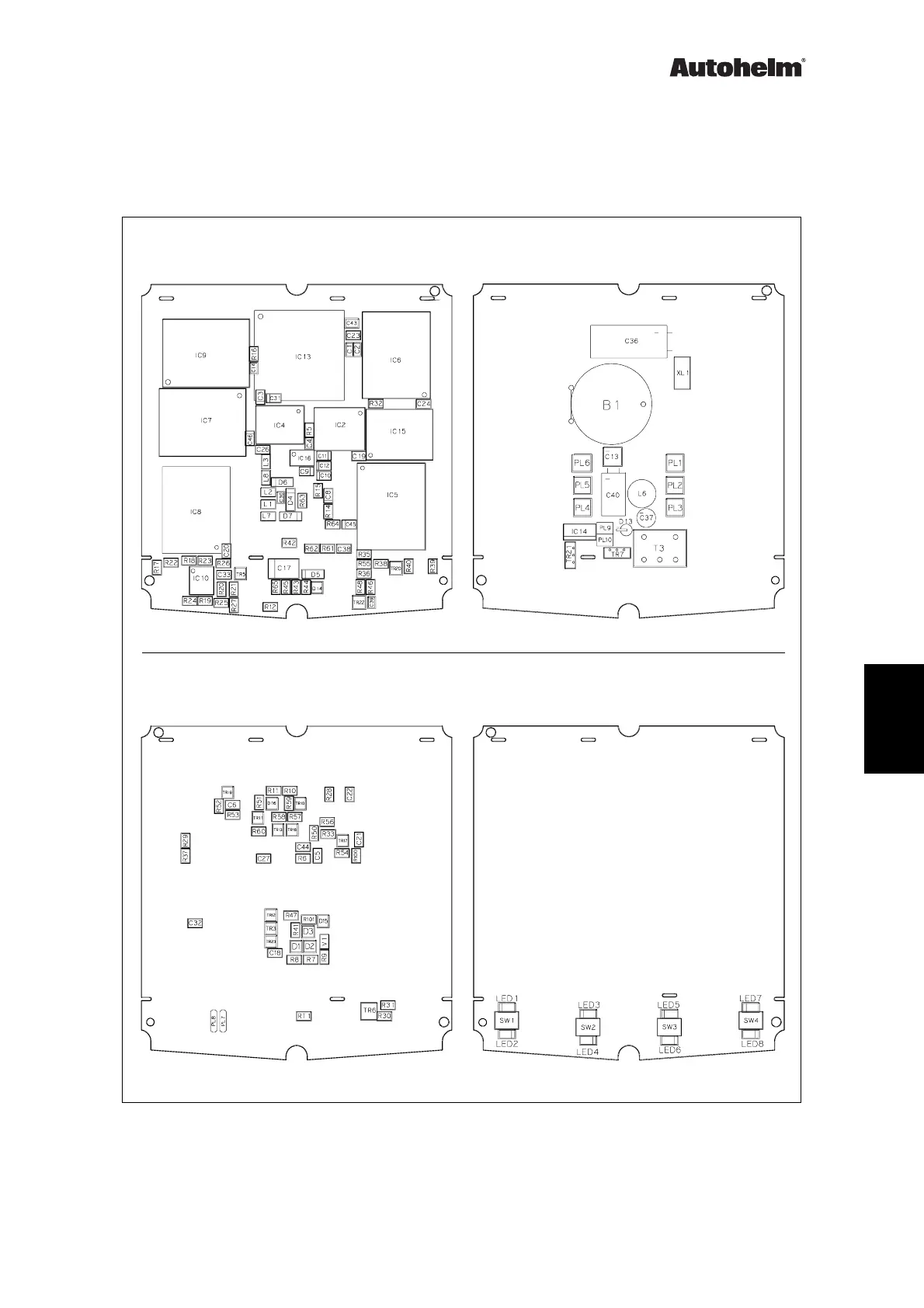

Figure 6 PCB Layout
Z211Z211 Z211Z211
Z211
ST80 Masterview
ST80 Masterview Service Manual 83028-1 19
