TABLE OF CONTENTS

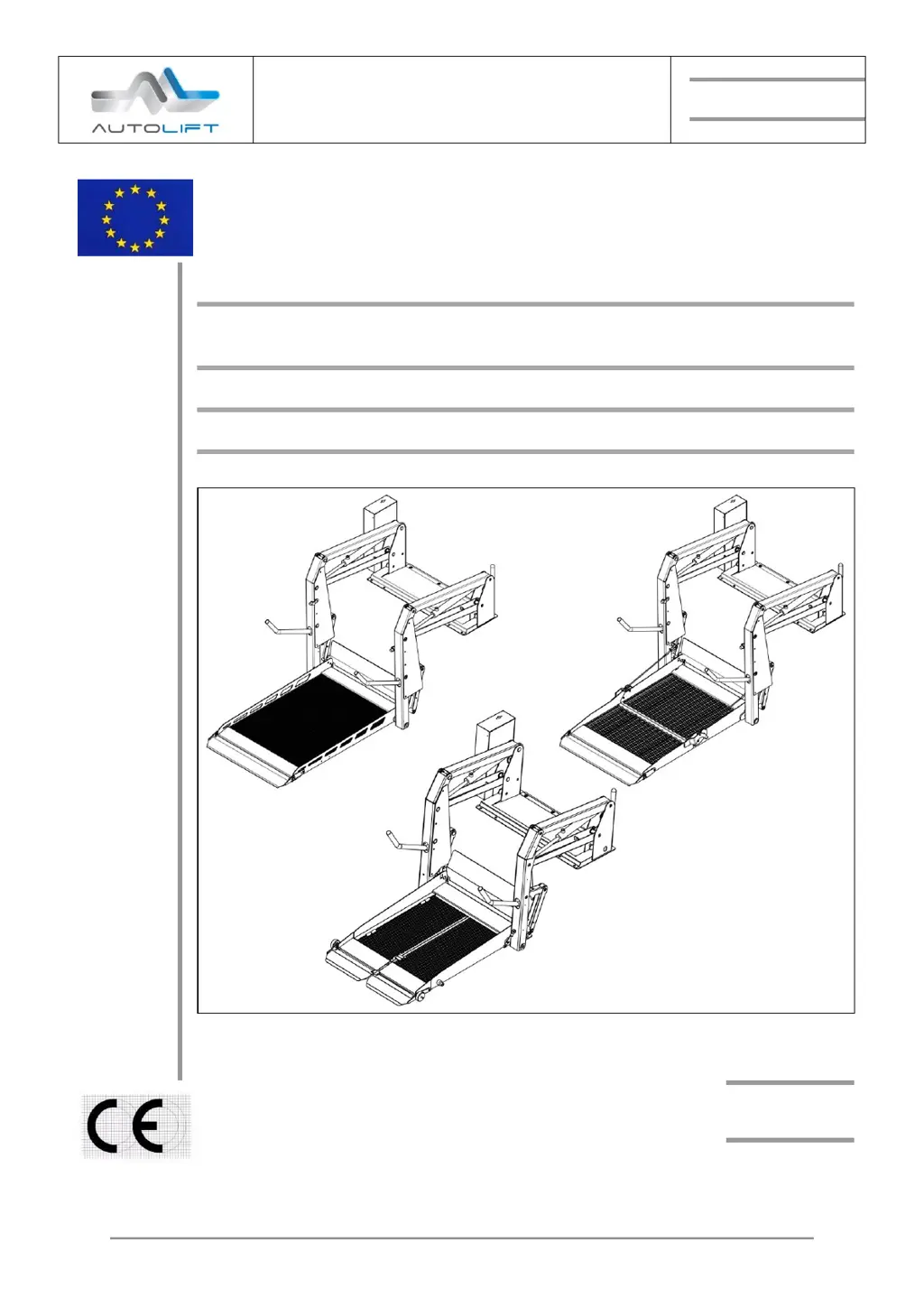

Lift
DEVICE
BB – SKY – BBW
MODEL
1
INSTRUCTION MANUAL
LIFT
DEVICE
BB series 1150 – 1350 – 1370 – 1401
SKY series: 1000M – 1150L – 1250 – 1395 – 1400
BBW series: 905M – 1030L – 1350 – 1600
MODELS
ORIGINAL INSTRUCTIONS
00
REVISION
2015
YEAR
BB SERIES
SKY SERIES
BBW SERIES

Table of Contents

Questions and Answers

  • E
    erobertsonAug 15, 2025
    How to fix warning light not coming on in AUTOLIFT BB?
    • J
      Joseph MillerAug 15, 2025
      If the warning light in the cab of your AUTOLIFT Lifting Systems isn't turning on, several issues could be the cause. First, check if the power switch is turned to the OFF position and switch it to ON. If that doesn't work, examine the hydraulic power unit fuse and reset it if it's open. Also, inspect the main power fuse and replace it if it's blown. The cab warning light itself might be broken, so consider replacing it. Lastly, check the electronic control unit fuse and replace it if necessary.
  • A
    Amy MillerAug 18, 2025
    What to do if AUTOLIFT Lifting Systems platform does not rise?
    • L
      Lucas MosleyAug 19, 2025
      If your AUTOLIFT Lifting Systems platform isn't rising, several factors could be at play. Ensure the lowering valve screw is properly tightened by closing the lowering valve. If the lowering valve is broken, replace it. A broken electro-pump remote switch or the electro-pump itself could also be the issue, requiring replacement. Check the push-button panel and the electronic control unit, replacing them if broken. Insufficient battery charge can prevent the platform from rising, so ensure the battery is charged. A dirty earth connection can also cause this problem, so clean it. If the hydraulic power unit is broken, it will need to be replaced. Finally, if the max speed control is set too low, calibrate the speed to an appropriate level.
  • R
    Randy WadeAug 22, 2025
    Why AUTOLIFT Lifting Systems platform does not open?
    • A
      Adam VillanuevaAug 22, 2025
      If the platform on your AUTOLIFT Lifting Systems is not opening, first ensure the push-button panel is correctly connected. If there is intermittent power on the solenoid line, restore continuous power. If the lowering valve solenoid or the lowering valve is broken, replace them. For SKY and BBW models, check if the hinges are locked and apply oil and grease. If the push-button panel or the electrical control unit is broken, they should be replaced.
  • M
    Matthew GuerreroAug 25, 2025
    What to do if AUTOLIFT BB platform does not descend?
    • L
      Luis HillAug 26, 2025
      If the platform on your AUTOLIFT Lifting Systems doesn't descend, start by checking the push-button panel connection and ensure it's correctly connected. Restore continuous power to the solenoid line if there's intermittent power. If the lowering valve solenoid or the lowering valve is broken, replace them.
  • R
    Robert RileyAug 28, 2025
    How to troubleshoot AUTOLIFT BB platform not closing?
    • D
      denise97Aug 29, 2025
      If the platform of your AUTOLIFT Lifting Systems is not closing, make sure the lowering valve screw is tightened by closing the lowering valve. Ensure the pressure switch is correctly calibrated. If the lowering valve, electro-pump remote switch, electro-pump, push-button panel, or electronic control unit are broken, replace them.
  • T
    Timothy SuttonSep 1, 2025
    Why AUTOLIFT BB Lifting Systems platform does not stop when opening?
    • M
      Mark JenningsSep 1, 2025
      If the platform on your AUTOLIFT Lifting Systems isn't stopping at the loading surface when opening, check the micro switch M1 connections and ensure the control wire is correctly connected. Restore continuous power to the micro M1 line if the power is intermittent. If the micro M1 cam is not adjusted correctly, adjust it. If the micro M1 is broken, replace it.
  • J
    jimenezcarlSep 4, 2025
    Why AUTOLIFT Lifting Systems platform does not stop when rising?
    • G
      greenjonathanSep 4, 2025
      If the platform on your AUTOLIFT Lifting Systems is not stopping at the loading surface when rising, check that the micro M1 is correctly connected. If there's intermittent power on the micro M1 line, restore continuous power. If the micro M1 cam isn't adjusted correctly, adjust it. If the micro M1 is broken, replace it.
  • B
    brentchapmanSep 7, 2025
    How to control descent of AUTOLIFT Lifting Systems platform?
    • W
      williamsbrianSep 7, 2025
      If the platform descent on your AUTOLIFT Lifting Systems is not properly controlled, ensure the lowering valve screw is tightened by closing the lowering valve. If the lowering valve is broken, replace it.
  • K
    Kenneth BaldwinSep 12, 2025
    What to do if AUTOLIFT BB Lifting Systems platform does not close completely?
    • N
      Nicholas SchneiderSep 12, 2025
      If the platform on your AUTOLIFT Lifting Systems does not close completely, ensure that the pressure switch is correctly calibrated and recalibrate the maximum speed.

Summary

General Warnings

Manufacturer

Details about the lift's manufacturer and contact information.

Marking

Explains the identification plate, CE marking, and compliance with EC directives.

Identification of Operators

Defines user roles, required physical, mental, and emotional characteristics, and responsibilities.

Structure and Use of the Manual

Outlines the manual's structure, purpose, and compliance with standards.

Warning Symbols

Explains hazard, importance, and information symbols used throughout the manual.

Safety - General Rules

Provides essential safety guidelines for using the hydraulic lift, including vehicle placement and pre-use checks.

General Description

Components

Identifies and labels the main parts of the lift, including the base, arms, power unit, and platform.

Dimensions

Illustrates and labels the different dimensions (A, B, C, D, E, F, G) of the lift.

Technical Data

Presents detailed technical specifications such as capacity, weight, power supply, and dimensions for various models.

Field of Use

Intended Use

Specifies that the lift is for transporting disabled persons in wheelchairs and requires trained operators.

Improper Use

Lists prohibited uses, including climbing on the lift, transporting animals/objects, and using on uneven surfaces.

Safety Devices

List of Safety Devices

Details safety features like gripper handles, stop flaps, overload limit valve, and anti-tipping switch.

Warning Signs

Markings and Pictograms

Shows and explains various warning signs and markings on the lift related to operation and safety.

Installation

Receipt and Inspection

Outlines procedures for checking the lift upon delivery, ensuring completeness and absence of damage.

Storing and Non-Use of the Lift

Provides guidelines for storing the lift when not in use, including environmental conditions and duration limits.

Transport

Describes packaging and shipping details, including pallet and carton dimensions for different models.

Use

Handling

Specifies safe handling procedures for the packaged lift, required PPE for staff, and unpacking instructions.

Installation on a Vehicle

States that installation must be performed by authorized personnel and disclaims liability for unauthorized work.

Normal Use

Explains the operation of the lift using the wired push-button panel for opening, lowering, and raising.

Cleaning

Use in Emergency Conditions

Details how to operate the hydraulic lift using the manual backup pump in case of power failure.

Up - Closing

Describes the manual procedure for closing the platform using the pump arm extension.

Opening - Down

Explains the manual procedure for opening and lowering the platform using the manual hydraulic release pipe.

Cleaning Procedures

Provides instructions on how to clean the lift using mild detergents and water, and warnings against aggressive cleaners.

Maintenance

Periodic Inspection

Outlines the requirements for annual inspections by qualified technicians, including checks and load tests.

Frequency of Controls

Presents a table detailing the recommended frequency (daily, monthly, yearly) for various operational checks.

Demolition and Disposal

Disposal Procedures

Instructs users to comply with laws for machine disposal, disassemble into homogeneous materials, and destroy ID plates.

Troubleshooting

Operating Faults and Remedies

Provides a table listing common anomalies, their potential faults, and suggested remedies for quick problem resolution.

Wiring Diagram

Hydraulic Diagram

Spare Parts

Ordering Spare Parts

Instructs users on how to contact the spare parts department and provides information for ordering.
