16 © 1999 Directed Electronics, Inc. Vista, CA

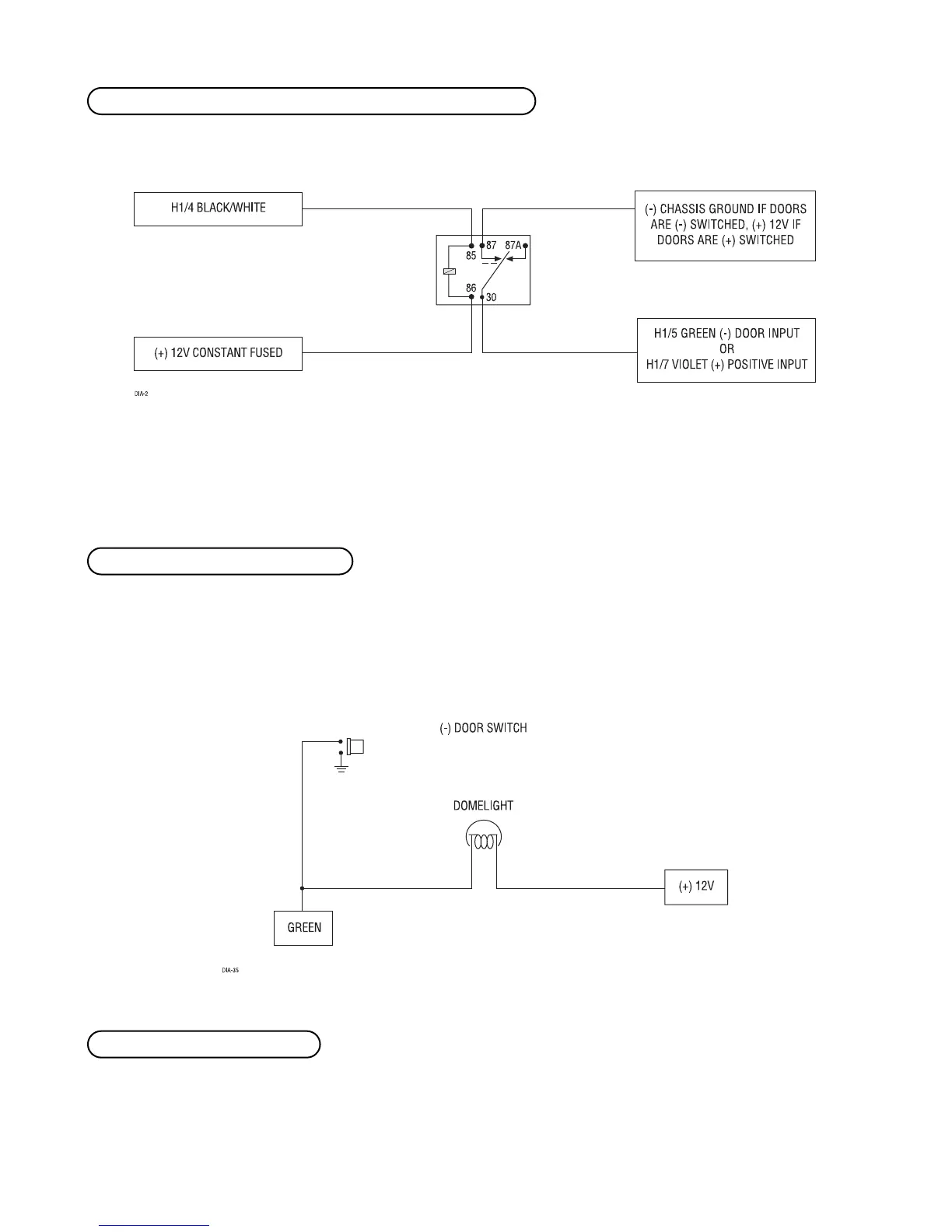

Connect this wire to the optional domelight supervision relay as shown below:
IMPORTANT! This output is only intended to drive a relay. It cannot be connected directly to the
domelight circuit, as the output cannot support the current draw of one or more bulbs.
Most vehicles use negative door trigger circuits. Connect the green wire to a wire which shows ground when any
door is opened. In vehicles with factory delays on the domelight circuit, there is usually a wire that is unaffected
by the delay circuitry.
This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk pins and will
report on zone one.
H1/6 BLUE (-) instant trigger
H1/5 GREEN (-) door trigger input
H1/4 BLACK/WHITE 200 mA (-) domelight supervision output
