four-pin optional sensor harness
The red wire supplies constant power to the optional sensor.
The black wire supplies ground to the optional sensor.
The blue and green wires are multiplex inputs. They are both tied to the same zone. If an input of less than 0.8
seconds is supplied to either wire the Warn-Away
®
response will occur. An input longer than 0.8 seconds to either
wire will initiate the triggered sequence and report zone 4.

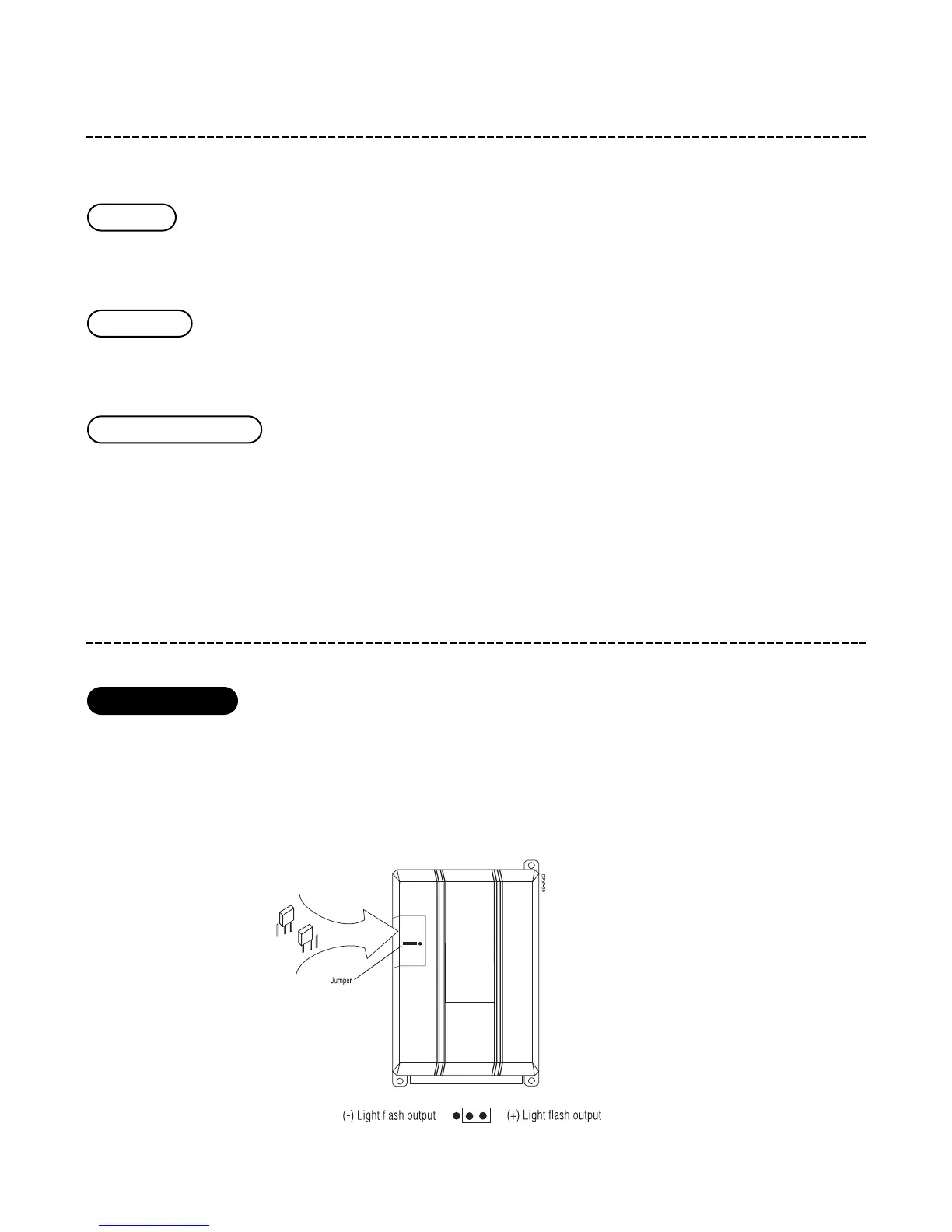

internal programming jumper
This jumper is used to determine the light flash output. In the (+) position, the on-board relay is enabled and
the unit will output (+)12V on the WHITE wire, H1/2. In the (-) position, the on-board relay is disabled. The
WHITE wire, H1/2, will supply a 200 mA (-) output suitable for driving factory parking light relays. To access this
jumper, you must open the control module.
