Automated Logic S6104 User Manual

Revised 7/30/02 • S6104 2 © 2002 Automated Logic Corporation
Using the S6104
The S6104 is part of the S-Line, designed
specifically for controlling rooftop Air
Handling Units (AHUs). The module can be
mounted directly in or on the rooftop
equipment.
The table below outlines the limitations and
requirements depending on whether you are
using WebCTRL or SuperVision to
communicate with your S6104.
For more information, see the appropriate
module driver document on the Automated
Logic website at www.automatedlogic.com.
The S6104 has:
• 6 digital outputs
• 10 universal inputs
• 4 analog outputs
A single board provides the power circuitry,
microprocessor, and non-volatile memory
(stores data even during a power failure). The
Access Port allows communication with
WebCTRL or SuperVision. The 4-pin LogiStat
Port provides the interface for a LogiStat
room sensor. With certain restrictions, the
LogiStat Port can also be used to
communicate with WebCTRL or SuperVision
(see Figure 1).
WebCTRL SuperVision
Module Driver DRV_S6104 SLM
Number of Function
Blocks*
11
Number of BACnet
Objects*
1000 1000
* depending on available memory

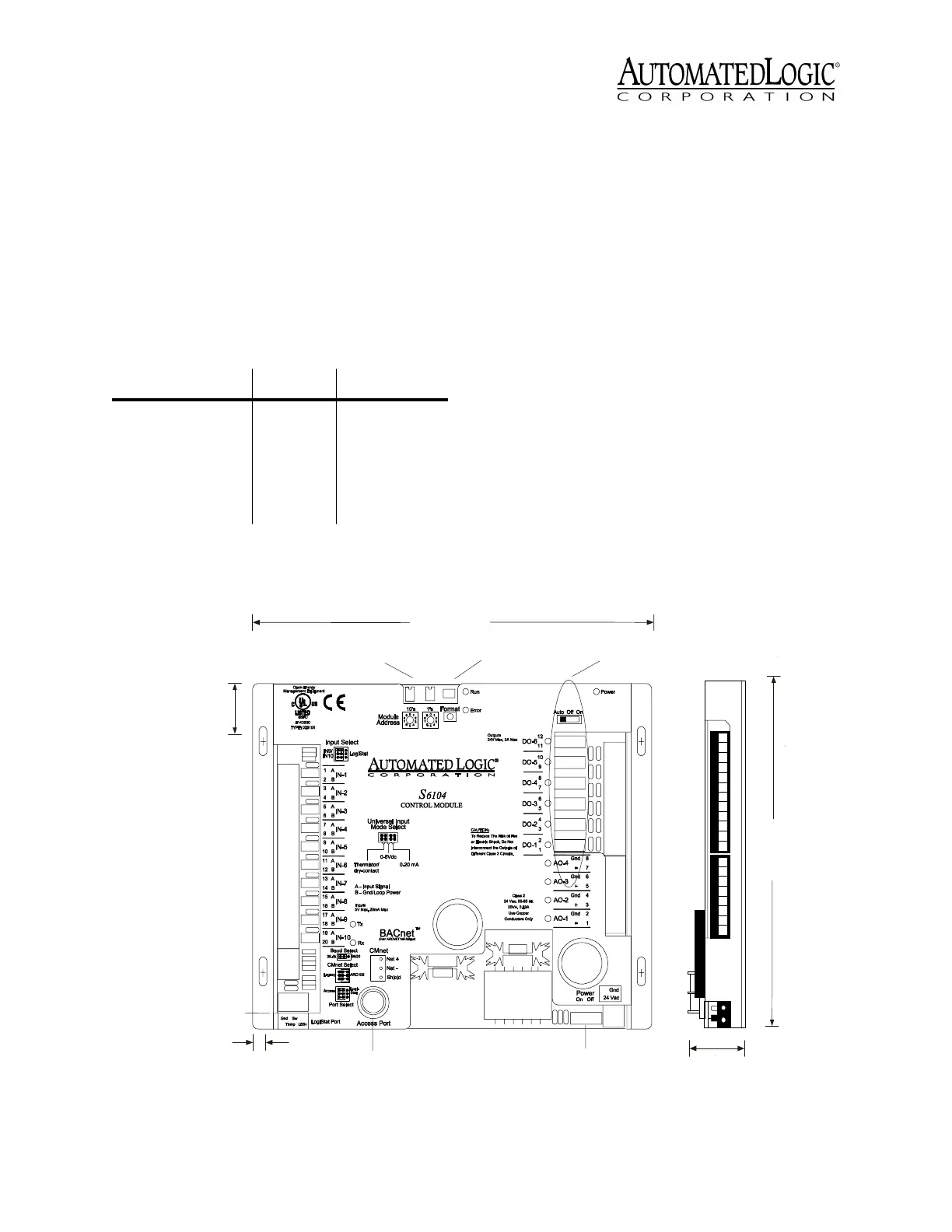

Figure 1. S6104 Dimensions and Layout
71/2"
19 cm
11/8"
2.858 cm
Dual Rotary
Address Switches
Digital Output Mode
(HOA) Switches
Power
Switch
Access
Port
87/8"
22.543 cm
11/4"
1/4"
.635 cm
Manual Format
Button
3.175 cm
LogiStat Port
