Automated Logic S6104 User Manual

Revised 7/30/02 • S6104 8 © 2002 Automated Logic Corporation
5. Check the Baud Select jumper on the
S6104 for the communication speed of the
Access Port (9600 or 38.4K). If the jumper
needs to be changed, turn the module’s
power off first. The baud rate change
registers when the module is turned on.
6. In SuperVision, define the connection type
using Table 3.
Inputs
The S6104 provides 10 universal inputs. If you
are wiring the S6104 module to a LogiStat or
LogiStat Plus sensor, inputs 9 and 10 can be
disabled, allowing temperature and setpoint
adjust inputs to be read through the LogiStat
Port instead (see “LogiStat Wiring” on
page 10). Refer to Table 4 for information
about wire length, gauge, and shielding.
NOTE
On an ARC156 network segment,
inputs can be read through a LogiStat,
LogiStat Plus, or LogiStat Pro. However, on a
legacy CMnet, inputs can only be read on a
LogiStat or LogiStat Plus.
• Thermistor: Precon type 2 (10 kohm at
77°F). Input voltages should range
between 0.489V and 3.825V for
thermistors.
• 0 to 5VDC: The output impedance must
not exceed 10 kohms. The input
impedance of the S6104 is
approximately 1Mohm.
• 0 to 20mA: The input resistance on the
A input is 250 Ohms. The B terminal
supplies a voltage source to power the
4-20mA transducer. The B terminal is
capable of supplying 18 to 24VDC, but
the total current of all B terminals must
not exceed 200mA. If the voltage
measured from the B terminal to Gnd is
less than 18VDC, you need to use an
additional external power supply.
• Dry Contact: A 5VDC wetting voltage is
used to detect contact position. This
results in a 0.5mA maximum sense
current when contacts are closed.

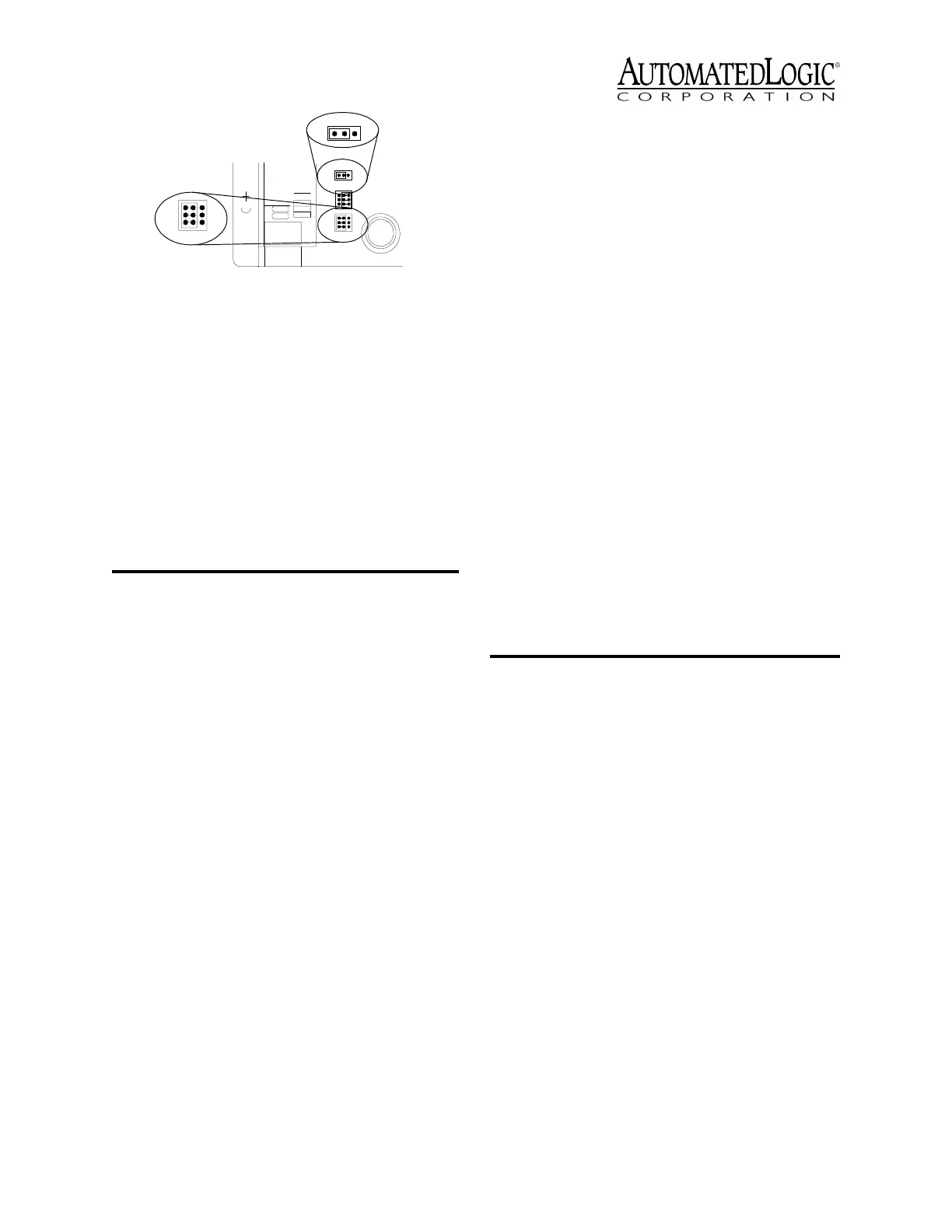

Figure 7. Port Select and Baud Selects
Table 3. Connection Types
SuperVision
Version
Type of
CMnet
Gateway
Present?
Use Connection
Type
3.0 any n/a Access Port
2.6 ARC156 yes Direct Connect
2.6 ARC156 no Direct Network
2.6 legacy n/a Direct Network
38.4K
9600
Baud Select
38.4K 9600
Logi-
Access
Stat
Legacy
Port Select
ARC156
Access Port
LogiStat Port
Temp LS5v
Gnd Sw
Logi-
Stat
Access
CMnet Select
Port Select
Baud Select
Table 4. Input wiring restrictions
Input
Maximum
Length
Minimum
Gauge Shielding
0 to 5VDC 50 feet
15 meters
24AWG shielded and
grounded to
module’s B or
Gnd terminal
Thermistor
Dry contact
50 feet
15 meters
24AWG shielded and
grounded to
module’s B or
Gnd terminal
0 to 20 mA 150 feet
46 meters
20AWG unshielded
LogiStat
Sensors
100 feet
30 meters
22AWG * unshielded
*Automated Logic Corporation recommends a specific
wire to connect the S6104 to the LogiStat. This 22AWG
solid copper wire is available from Magnum Cable
Corporation (part number A3LOGISTAT).
