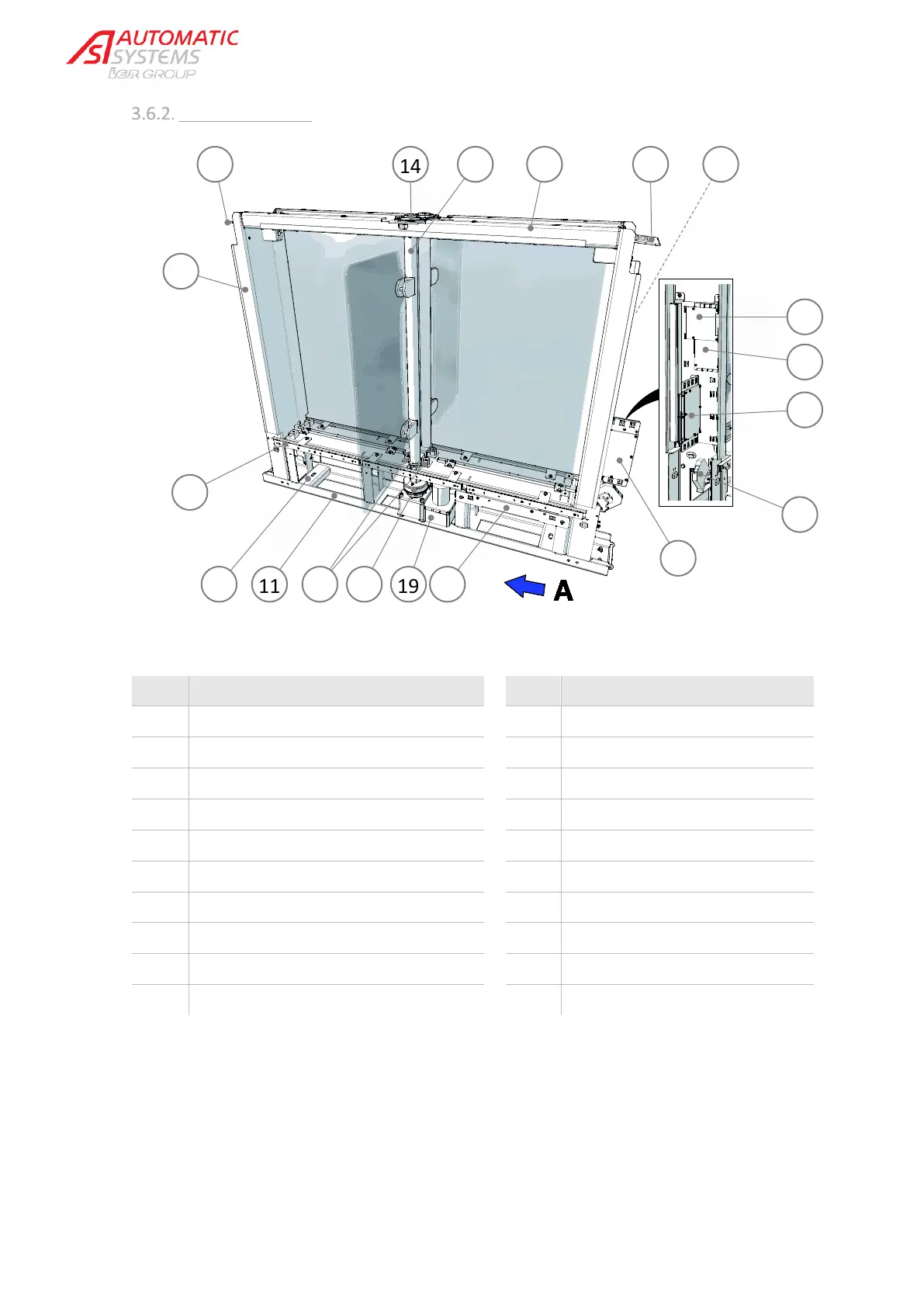

Intermediate unit
Ref.: Designation: Ref.: Designation:
11 Base frame 21 Motion transmission shaft (2x)
12 Frame upright 22 Fixing clamp (2x)
13 Frame top rail 23 24 VDC 14 A power supply
14 Bracket (2x) 24 DIRAS detection cell (6x)
15 CPU circuit board AS 1190 25 Brake (Available as option for ASC)
16 I/O circuit board AS 1612 26 Reader support (2x)
17 Motor control circuit board AS 1613 (2x) 27 Identification label
18 Main circuit breaker
19 Geared motor (2x)
20 End stops (4x)
12
14
18
17
19
15
11 22 20
24
13
16
23
17
21
25
26 26 27
