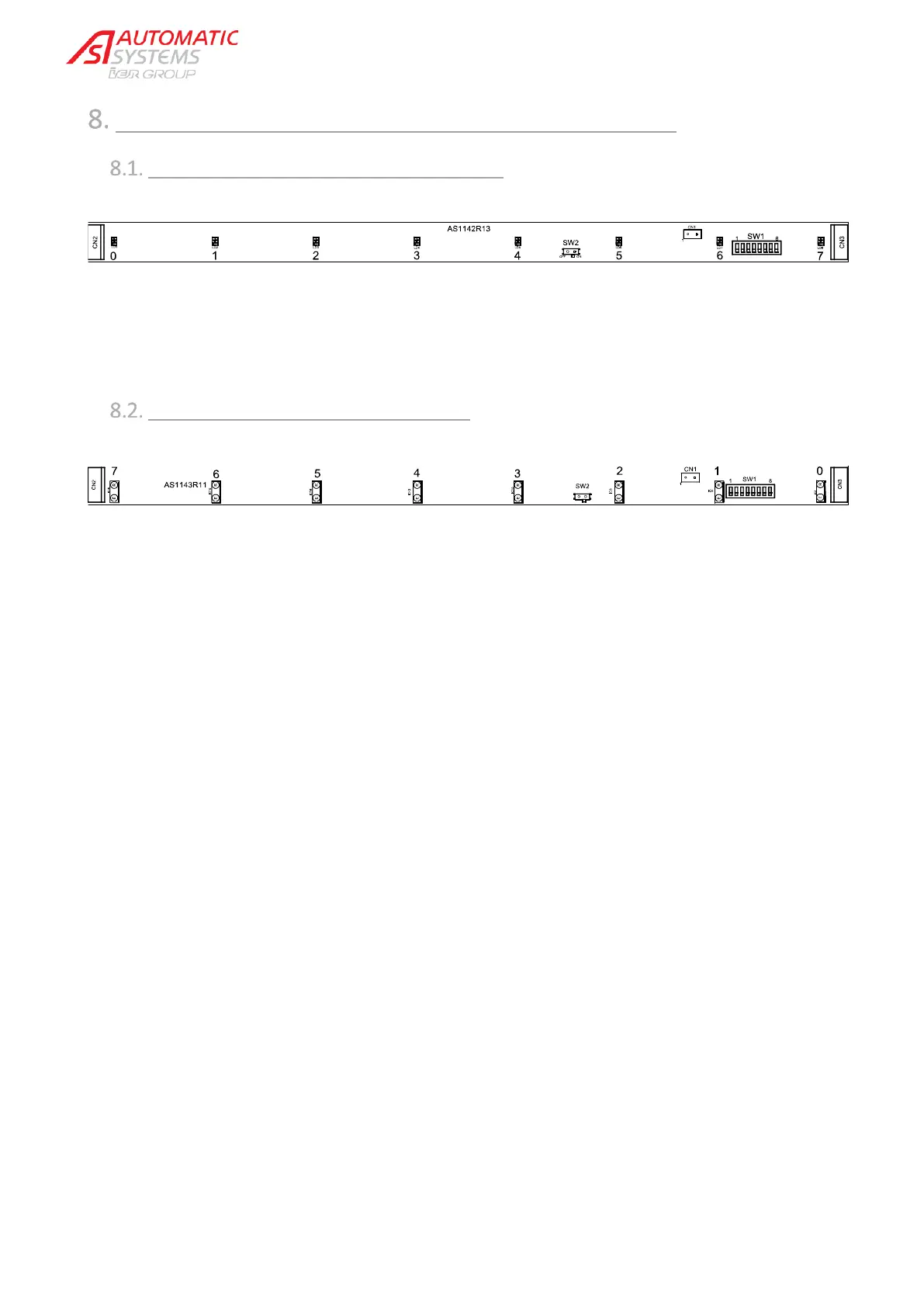

ASSIGNMENT OF CIRCUIT BOARD COMPONENTS
DIRAS TRANSMITTER CIRCUIT BOARD AS1142
LDx
:
transmitter cell
SW1
:
address of the circuit board in the CAN network ( see wiring diagrams).
SW2
:
end of CAN bus ( see wiring diagrams).
DIRAS RECEIVER CIRCUIT BOARD AS1143
ICx
:
receiver cell
(the Receiver side of the cell is used during the circuit board self-test)
SW1
:
address of the circuit board in the CAN network ( see wiring diagrams).
SW2
:
end of CAN bus ( see wiring diagrams).
