Automatic Systems SlimLane 9 Series User Manual

p. 17 / 98
SL 9xx-MT-EN


1
2
2
2
3
2
1
2
1
2
2
2
1
3

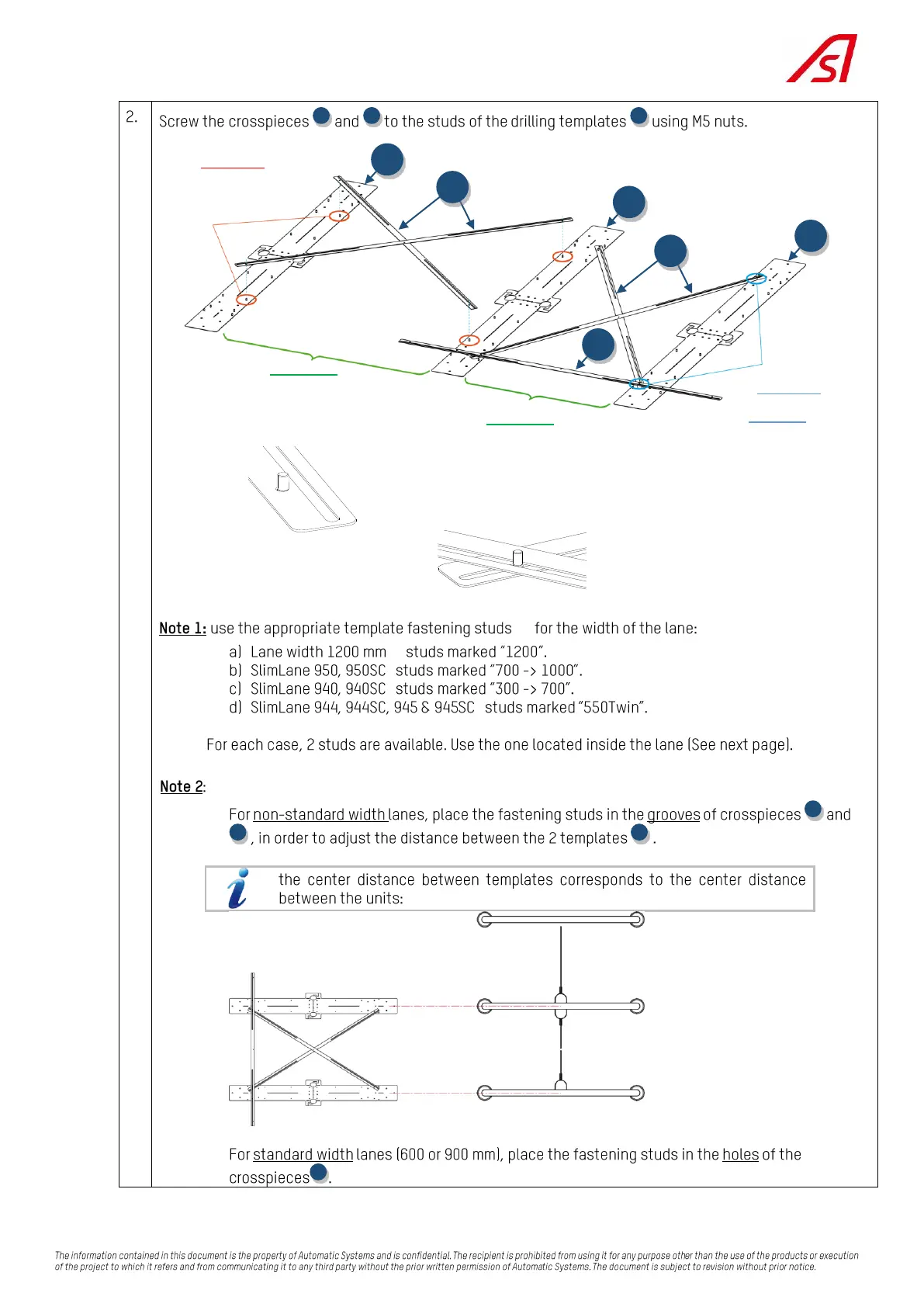

See Note 1:
Standard width
 place the studs in the
cross-brace holes.
See Note 2:
Non-standard width

place the studs in the cross-brace
grooves

use cross-brace  to ensure
parallelism between the 2 templates

2
3
1
2
See Note 1:
Internal studs for WIDE
lane
(700 to 1000 mm)
See Note 1:
External studs for
NARROW lane
(300 to 700 mm)
