Automatic Systems SlimLane 9 Series User Manual

p. 18 / 98
SL 9xx-MT-EN
Note:
Rep. A
,
B
,
C
and
D
 Note1 on the previous page.

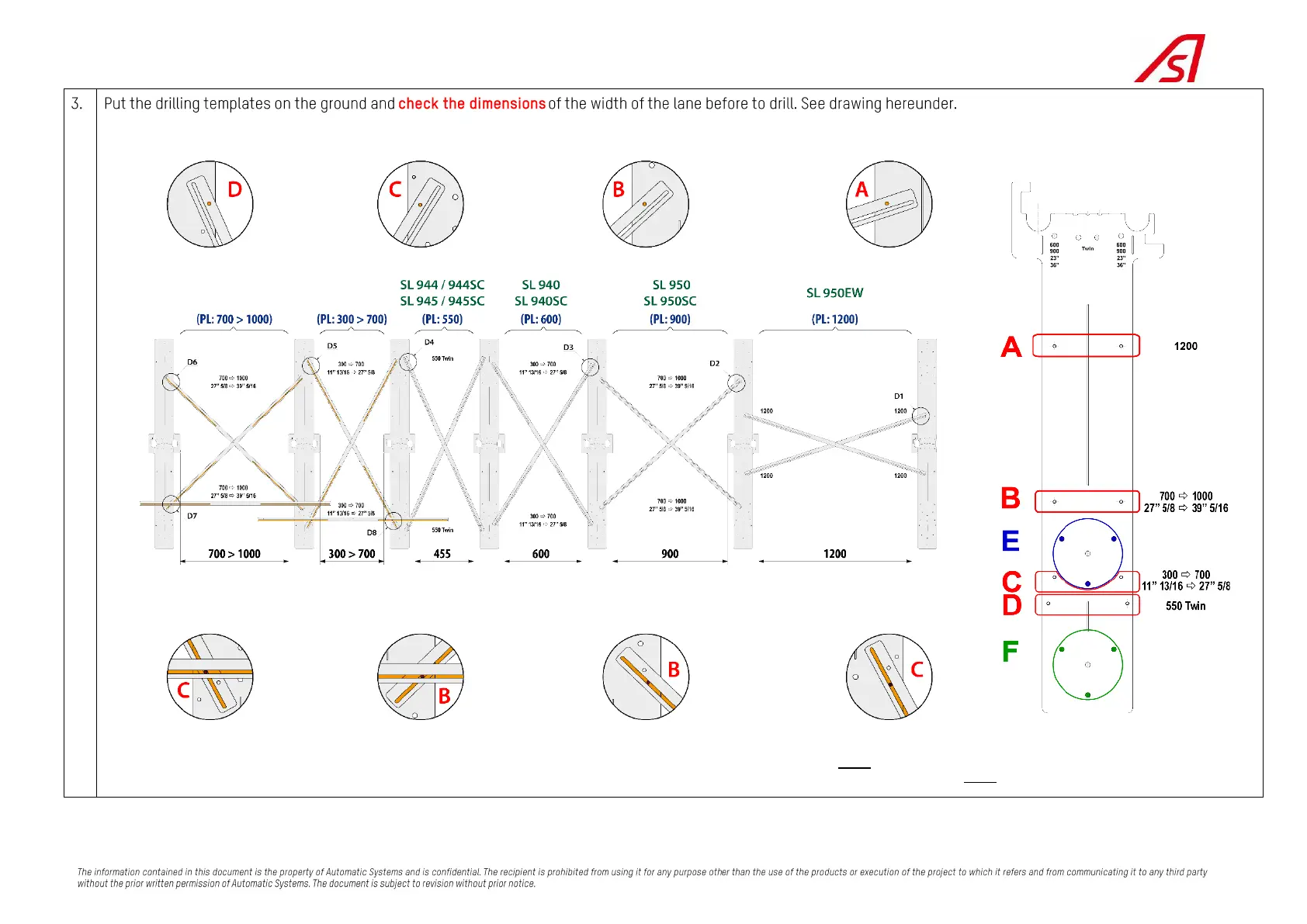

Place the cross-brace grooves in
the studs '300 > 700'
+ horizontal beam. (See Detail 8)
Detail D5
Detail D6
Detail D7
Detail D8
Detail D1
Detail D2
Detail D3
Detail D4
Place the studs '1200' in
the cross-brace holes.
Place the studs '700 > 1000' in
the cross-brace holes.
Place the studs '300 > 700' in
the cross-brace holes.
Place the studs '550 TWIN' in
the cross-brace holes.
Place the cross-brace grooves in
the studs '700 > 1000'
+ horizontal beam. (See Detail 7)
Place the horizontal beam
grooves in the studs '700 > 1000'.
Place the horizontal beam
grooves in the studs '300 > 700'.
