Automatic Systems TriLane TL Series User Manual

p. 10/46
TLxx-MT-EN-04
ZNCZC Direction from the uncontrolled area to the controlled area

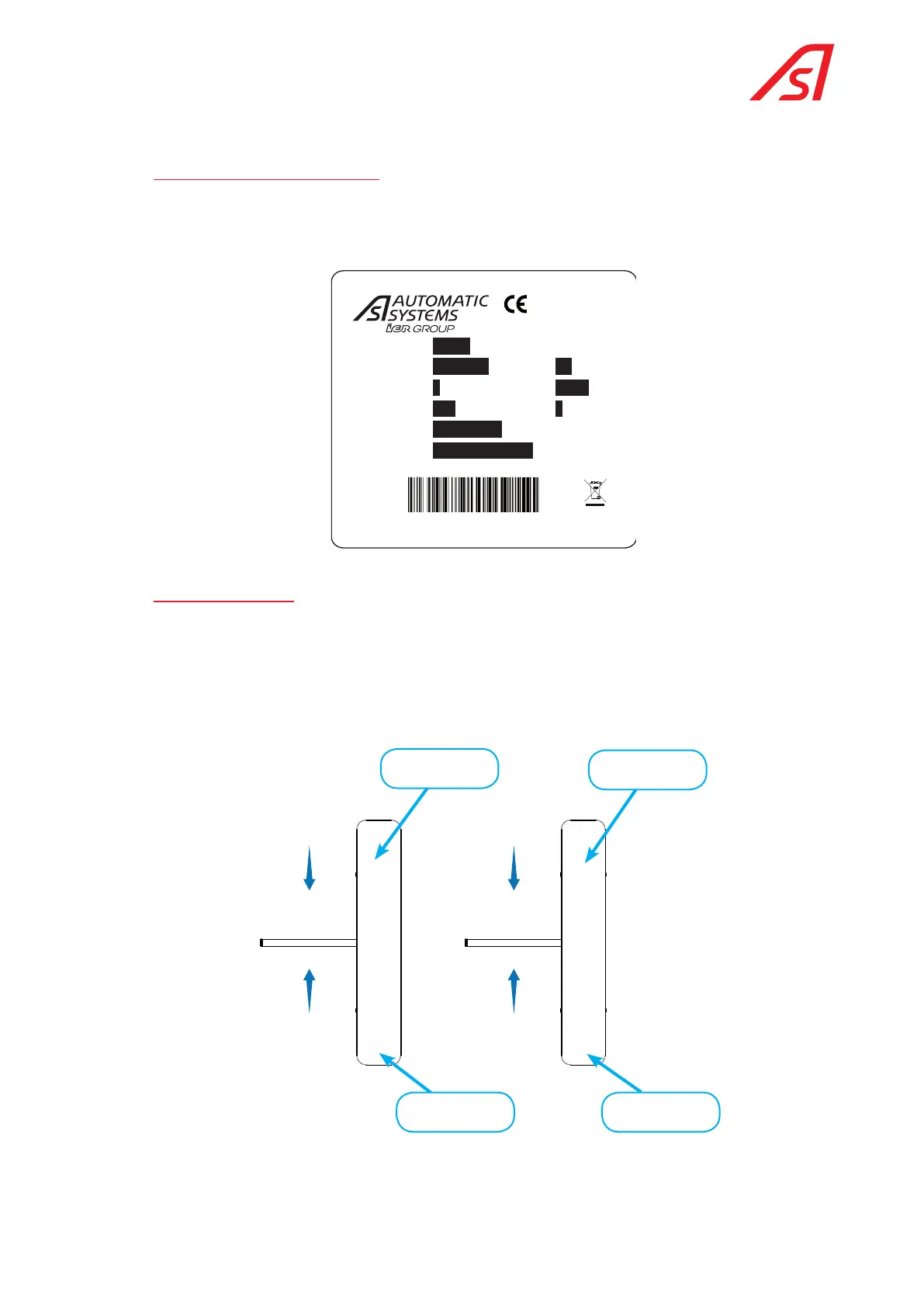

4.2. IDENTIFICATION PLATE
The name plate, an example of which is given below, contains technical information regarding the characteristics of the
equipment and its date of manufacture.
The serial number of the equipment is useful in the event of a technical support request.
Model
Mfg Date
Phases
Volts
kg
Hz
A
Item
Serial
SN
MADE IN BELGIUM www.automatic-systems.com
TL2P
xx/xx/18
230
E/TL2P/002
18-TL2P-B0000
1
2
65
50/60
4.3. CONVENTIONS
The figure below illustrates what is meant by passage in directions A and B. The optional reader, which is always placed
to the right of the passage in direction A, will generally be incorporated under the cover of the TriLane in the uncontrolled
area.
The optional reader in direction B (exit direction) will generally be placed inside the same housing, even when a battery of
several TriLane is installed, in order to avoid connections between housings and installing an additional equipment at the
end of the battery. However, other layouts are possible on request.
A
B
Controlled area
Non controlled area
A
B
Controlled area
Non controlled area
Possible reader
direction A
Possible reader
direction B
Possible reader
direction B
Possible reader
direction A
Fig. 1 Conventions for direction A and direction B
