Automationdirect.com GS1-10P2 - Input Power Connections

Chapter 2: Installation and Wiring
GS1 Series AC Drive User Manual
2–8
Input Power Connections

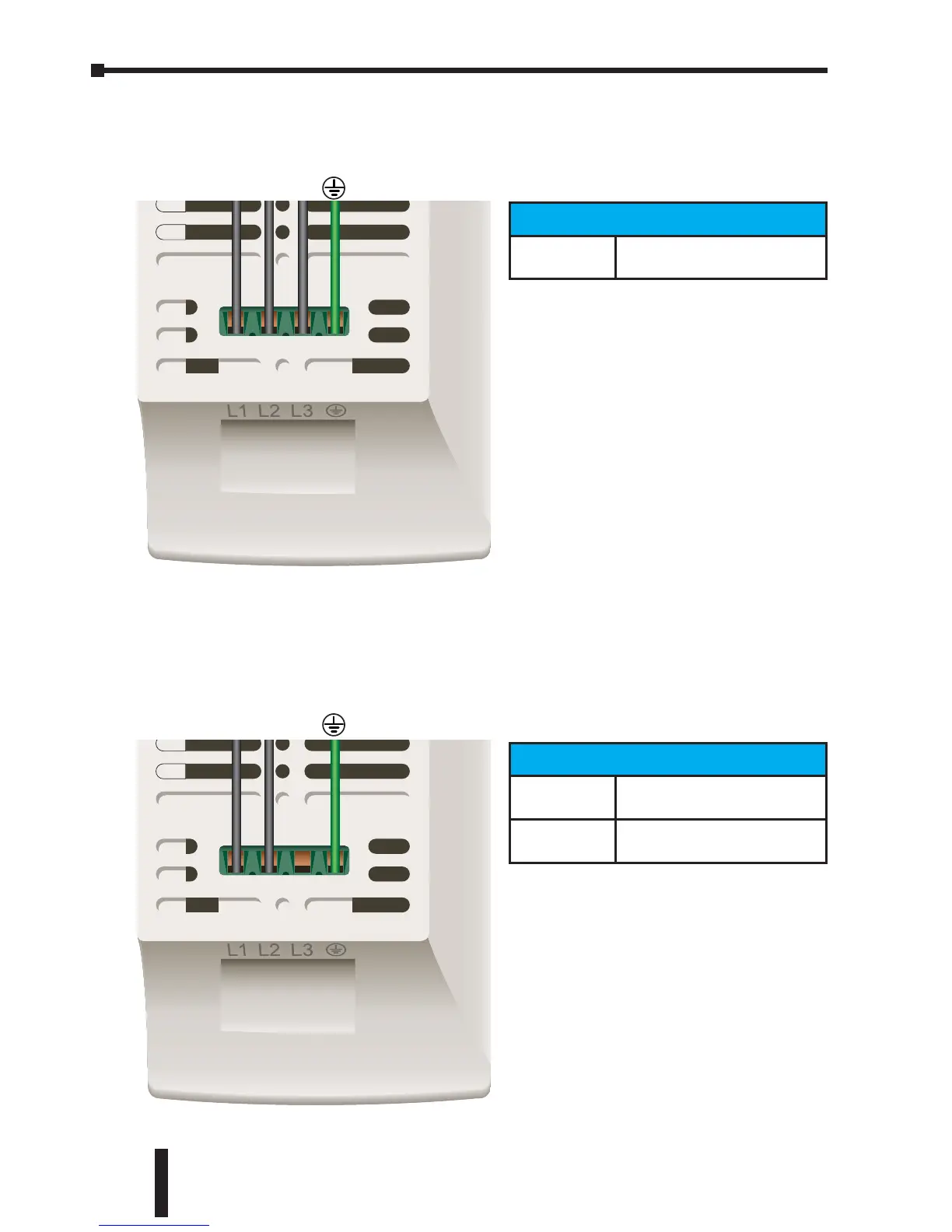

3-phase Input Power Connections
1-phase Input Power Connections*
L1 L2 L3
L1 L2
GS1 Top View
GS1 Top View
3-phase Input Power
200V Class
Three-phase: 200-240VAC ±
10%, 50/60Hz ±5%
1-phase Input Power*
100V Class
Single-phase 100-120VAC
±10%, 50/60Hz, ±5%
200V Class
Single-phase: 200-240VAC
± 10%, 50/60Hz ±5%
*Only models GS1-10P2, GS1-10P5, GS1-20P2,
GS1-20P5, and GS1-21P0 are rated for
single-phase input power.
