Chapter 2: Installation and Wiring

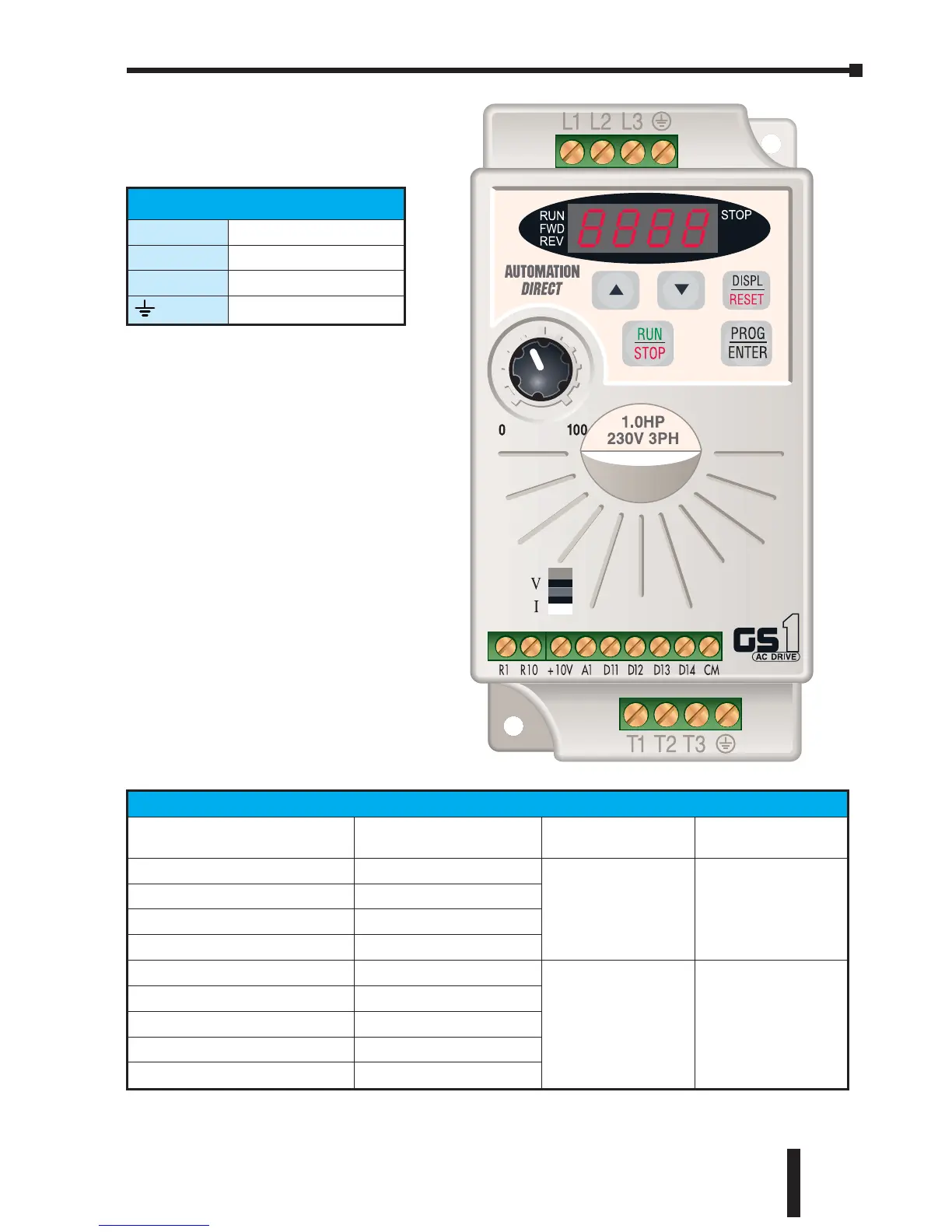

Main Circuit Wiring
*Wire type: 75°C, Copper only
Main Circuit Terminals
Terminal
Description
L1, L2, L3
Input Power
T1, T2, T3
AC Drive Output
Ground
Main Circuit Wiring Specifications
AC Drive Model
Max. Current
(Input/Output)
Wire Gauge Torque
GS1-10P2
6A/1.6A
12-16 AWG 5.5kgf-cm
GS1-10P5
9A/2.5A
GS1-20P2 (1-phase)
4.9A/1.6A
GS1-20P2 (3-phase)
1.9A/1.6A
GS1-20P5 (1-phase)
6.5A/2.5A
12-14 AWG 5.5kgf-cm
GS1-20P5 (3-phase)
2.7A/2.5A
GS1-21P0 (1-phase)
9.7A/4.2A
GS1-21P0 (3-phase)
5.1A/4.2A
GS1-22P0
9A/7.0A
