DC Injection Voltage Level Mem Addr 0113H(40276)
Range: 0 to 30% Default Setting: 0
•This parameter determines the amount of DC Braking Voltage applied to the motor
during start-up and stopping. When setting DC Braking Voltage, please note that
the setting is a percentage of the the rated voltage of the drive. It is recommended
to start with a low DC Braking Voltage Level and then increase until proper holding
torque has been attained.
DC Injection during Start-up Mem Addr 0114H(40277)
Range: 0.0 to 5.0 sec Default Setting: 0.0
•This parameter determines the duration of time that the DC Braking Voltage will be
applied to the motor during the AC drive start-up. DC Braking will be applied for
the time set in this parameter until the Minimum Frequency is reached during
acceleration.
DC Injection during Stopping Mem Addr 0115H(40278)
Range: 0.0 to 25.0 sec Default Setting: 0.0
•This parameter determines the duration of time that the DC braking voltage will be
applied to the motor during stopping. If stopping with DC Braking is desired, then
1-00 must be set to Ramp to Stop (00).
Start-point for DC Injection Mem Addr 0116H(40279)
Range: 0.0 to 60.0 Hz Default Setting: 0.0
•This parameter determines the frequency when DC Braking will begin during
deceleration.
1-22
1-21
1-20
1-19

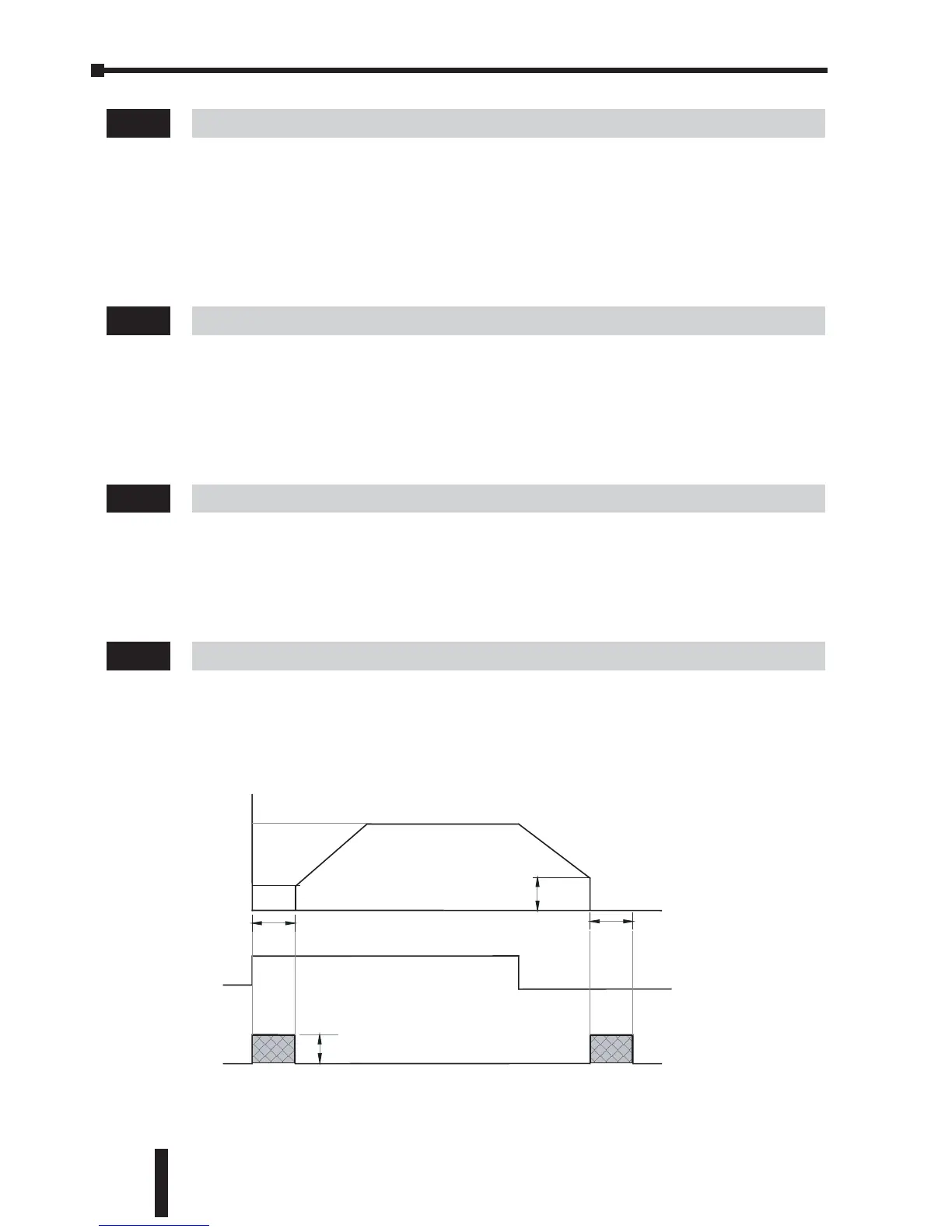

Chapter 4: AC Drive Parameters
GS1 Series AC Drive User Manual
4–16
Operation
Command
Min. Output
Frequency
Start-Point for DC Braking
time
DC Injection Voltage Level
Master
Frequency
ON OFF
1-22
1-20
1-21
1-19
