Settings 3 and 4: Multi-Speed Bits 1 and 2
The three Multi-Speed Bits are used to select the multi-speed settings defined by
parameters 5-01 to 5-03.
Note: In order to use the Multi-Speed settings, parameters 5-01 to 5-03 must be set.
Note: When all multi-speed inputs are off, the AC drive reverts back to the Command
Frequency (4-00).
Setting 9: Jog Command
This setting configures a Multi-function Input Terminal to give the Jog Command
when activated. 5-00 sets the Jog Speed.
Note: The Jog Command cannot be used when the motor is running. The motor must be
stopped to initiate this command.
GS1 Series AC Drive User Manual
4–23
Chapter 4: AC Drive Parameters

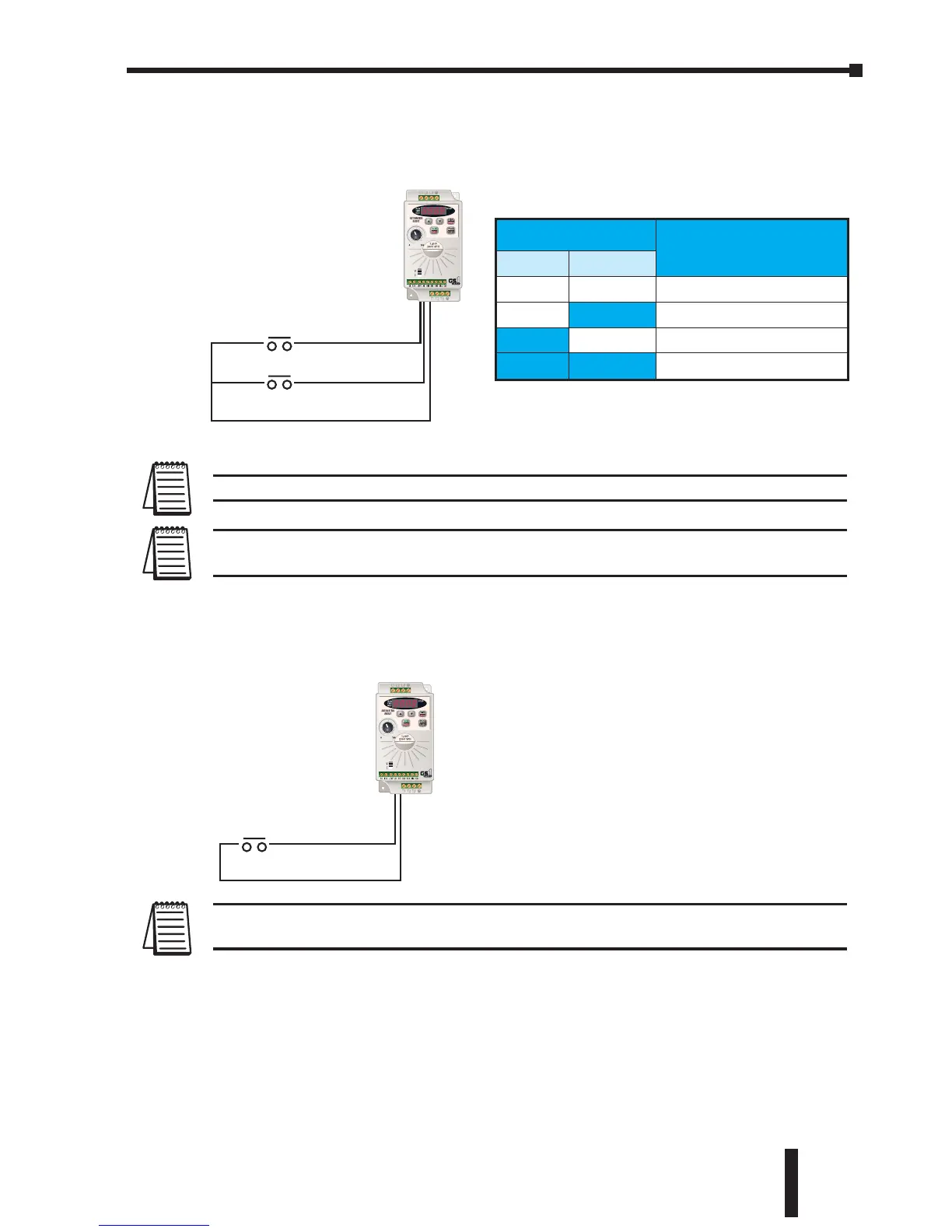

DI3-DI4
CM
03: Mult-speed Bit 1
DI3-DI4
04: Mult-speed Bit 2
DI3-DI4: Jog Command
"Close": Drive receives Jog Command signal
DI3-DI4
CM
Jog Command
Multi-Speed Bits
Speed Selection
Bit 2 Bit 1
OFF OFF 4-00: Source of Frequency
OFF
ON
5-01: Multi-Speed 1
ON
OFF 5-02: Multi-Speed 2
ON ON
5-03: Multi-Speed 3
