GS1 AC Drive Introduction
Unpacking
After receiving the AC motor drive, please check for the following:
• Make sure that the package includes an AC drive, the GS1 Series AC Drive User
Manual, and the GS1 Series AC Drive Quick Reference.
• Inspect the unit to insure it was not damaged during shipment.
• Make sure that the part number indicated on the nameplate corresponds with the
part number of your order.

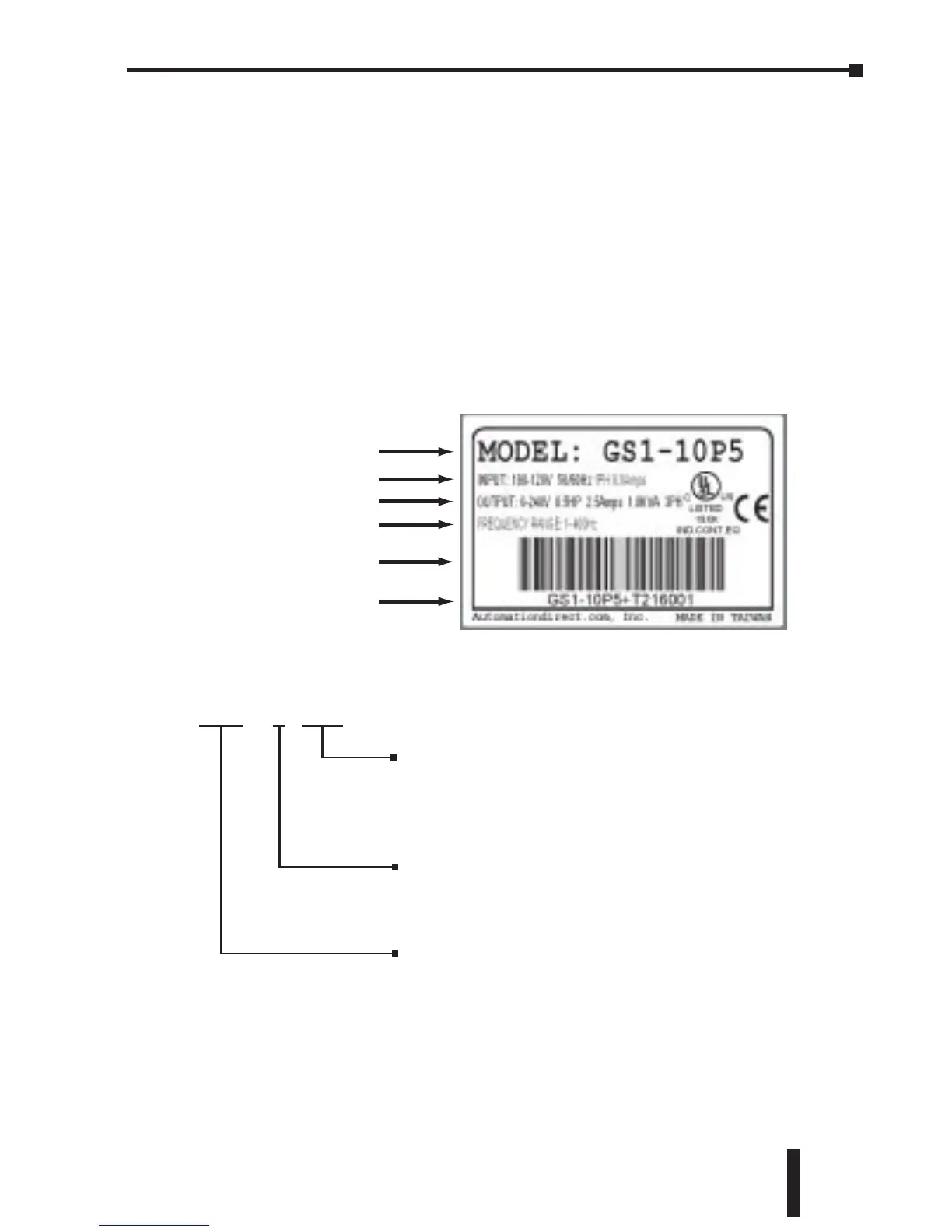

Nameplate Information:
Example of 0.5HP 120V AC drive
Model Explanation:
Chapter 1: Getting Started
AC Drive Model
Barcode
Output Frequency Range
Output Specification
Input Specification
Serial Number
GS1 - 1 0P5
Applicable Motor Capacity
0P2: 1/4HP 0P5: 1/2HP
1P0: 1HP 2P0: 2HP
Input Voltage
1: 100-120VAC
2: 200-240VAC
Series Name
