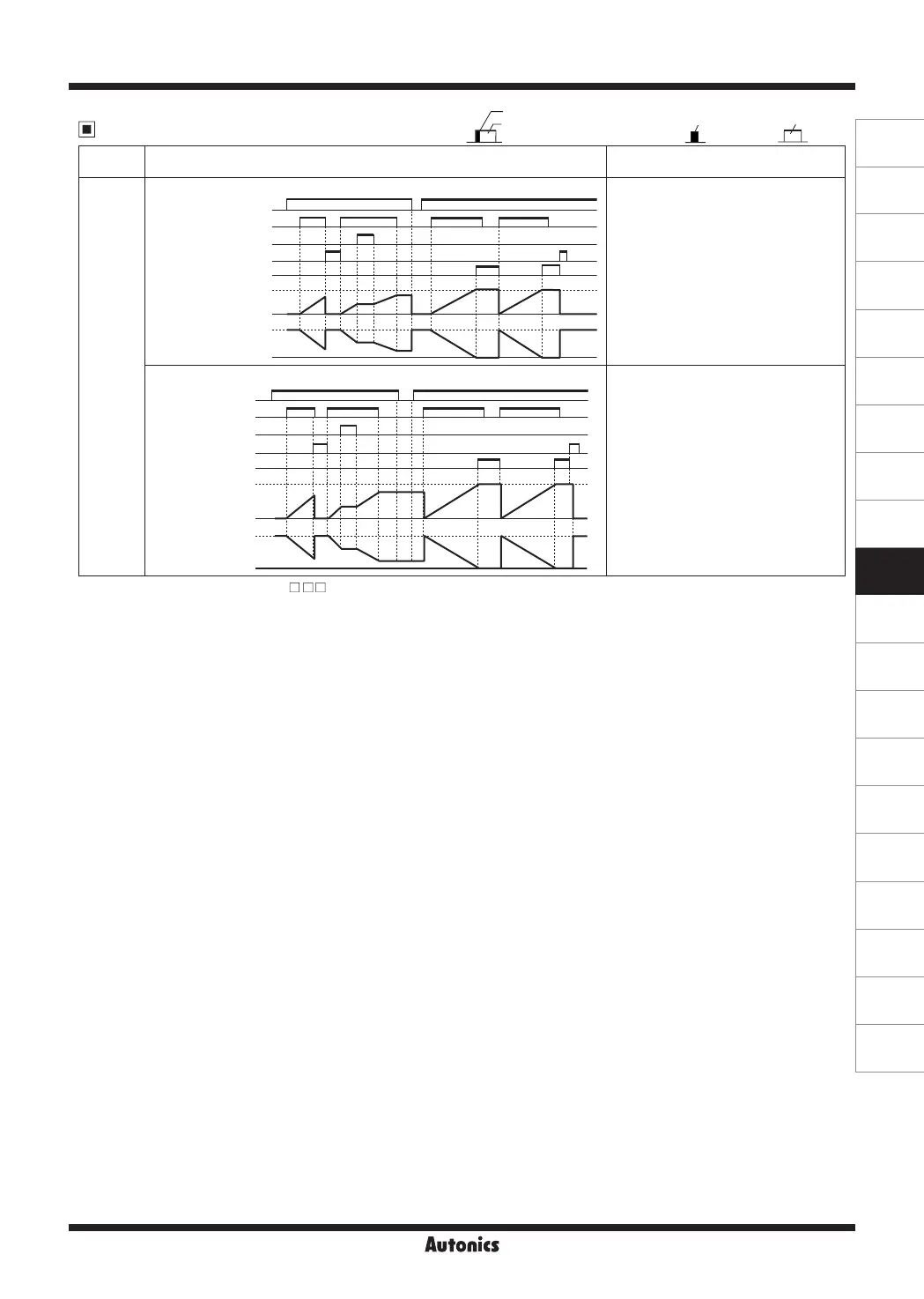

Output Operation Mode (Timer)
Retained output
One-shot output (0.01 to 99.99 sec)
Retained output
One-shot output
Output
mode
Time chart Operation
On Time
Display
[
ONtD
]
When memory protection setting is OFF
RESET
OUT2(OUT)
Setting time
Setting time
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
※
ON time indicate mode of INA signal.
1) Time reset start operates when INA
signal turns ON.
2) Time progress stops while INA signal is
OFF.
3) When INA signal is OFF, if INA input
time is greater than the setting time,
the display value flashes and the
operation stops until RESET signal
ON.
※
1
4) When time progress stops and power
turns OFF, the progressed time is reset.
When memory protection setting is ON
RESET
OUT2(OUT)
Setting time
Setting time
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
※
ON time indicate mode of INA signal.
1) Time reset start operates when INA
signal turns ON.
2) Time progress stops while INA signal is
OFF.
3) When time progress stops and power
turns OFF, the progressed time at the
moment of power OFF is memorized.
※
1: For free voltage input model (CX6 - F).
※
Power RESET: There is no memory protection. (resets the display value when power is off)
※
Power Hold: There is memory protection.
(memorizes the display value at the moment of power off, indicates the memorized display value when power is resupplied.)
※
When memory protection setting is OFF, it does not memorize the display value when power turns OFF.
(the display value is reset when power turns OFF)
※
When memory protection setting is ON, it memorizes the display value when power turns OFF.
When re-suppling the power, it displays the memorized value.
