J-30
CX Series

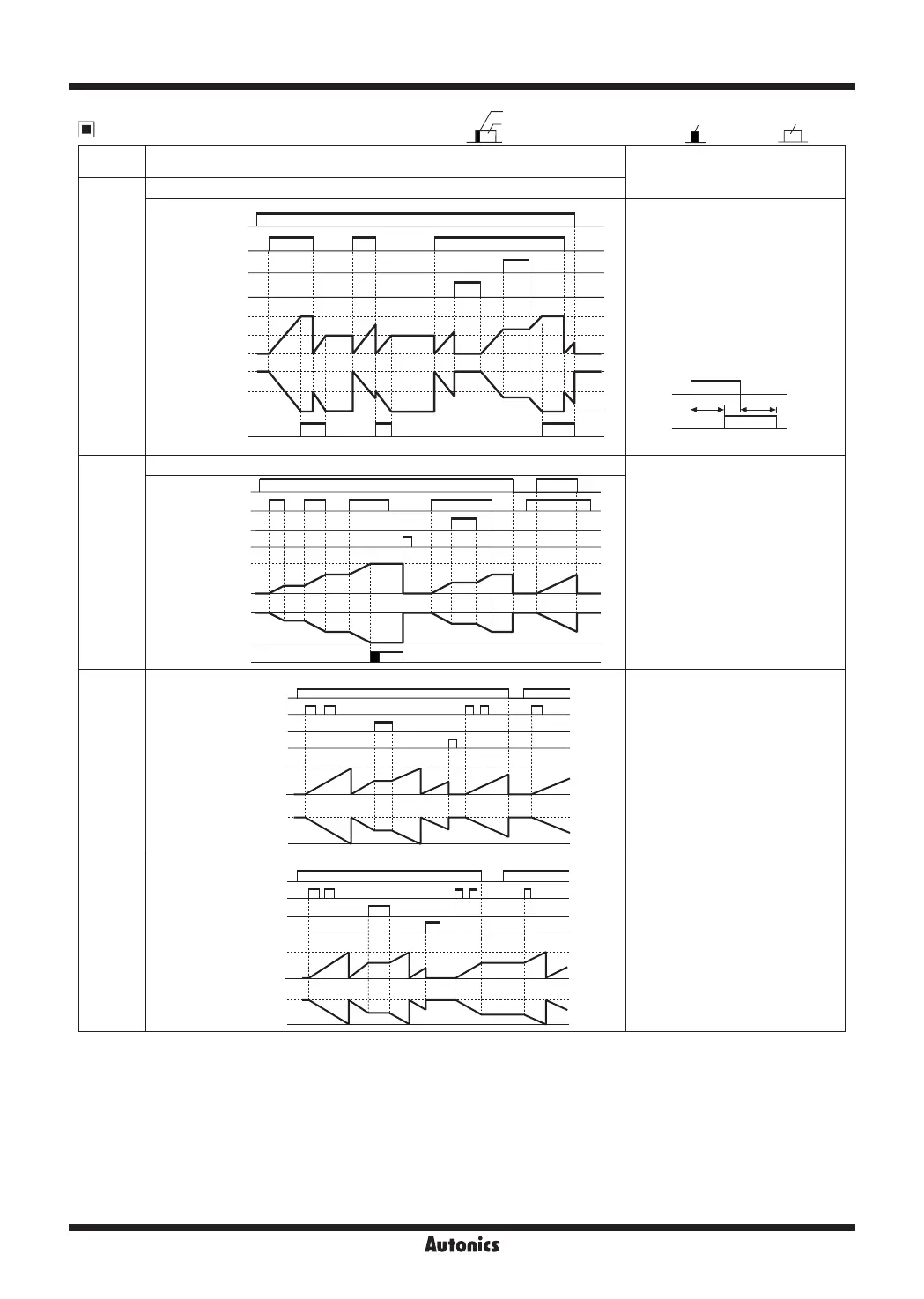

Output Operation Mode (Timer)
※
Power RESET: There is no memory protection. (resets the display value when power is off)
※
Power Hold: There is memory protection.
(memorizes the display value at the moment of power off, indicates the memorized display value when power is resupplied.)
※
When memory protection setting is OFF, it does not memorize the display value when power turns OFF.
(the display value is reset when power turns OFF)
※
When memory protection setting is ON, it memorizes the display value when power turns OFF.
When re-suppling the power, it displays the memorized value.
Output
mode
Time chart
Operation
NFD.1
[
NFd1
]
On-Off Delay1 (Power RESET)
RESET
On_Delay
On_Delay
Off_Delay
Off_Delay
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
OUT2(OUT)
1) When INA input turns ON, time
progresses and output turns ON after
On_Delay time.
2) When INA input turns OFF, time
progresses and output turns OFF
after Off_Delay time.
3) If INA input turns OFF within
On_Delay time, output will turn ON
and step 2 operate.
4) If INA input turns ON within
Off_Delay time, output will turn OFF
and step 1 operate.
INTG
[
INTG
]
Integration Time (Power RESET)
1) Time is progressing while INA input
is ON.
2) Time progress stops while INA input
is OFF.
3) When it reaches the setting time,
output is ON.
RESET
Setting time
Setting time
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
OUT2(OUT)
TOTAL
[
TOTAL
]
When memory protection setting is OFF
RESET
Max.
time range
Max.
time range
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
1) Time starts when INA input is ON.
2) When RESET signal is ON, the
display value is reset.
3) Time progress stops when INHIBIT
signal is ON.
4) The progressed time is reset when
power OFF.
When memory protection setting is ON
RESET
Max.
time range
Max.
time range
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
1)Time starts when INA input is ON.
2) When RESET signal is ON, the
display value is reset.
3) Time progress stops when INHIBIT
signal is ON.
4) The progressed time at the moment
of power OFF is memorized.
INA
OUT2
(OUT)
T1: On_Delay
T2: Off_Delay
T1 T2
Retained output
One-shot output (0.01 to 99.99 sec)
Retained output
One-shot output
