Autonics CX Series Manual

J-29
LCD Display Counter/Timer
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software

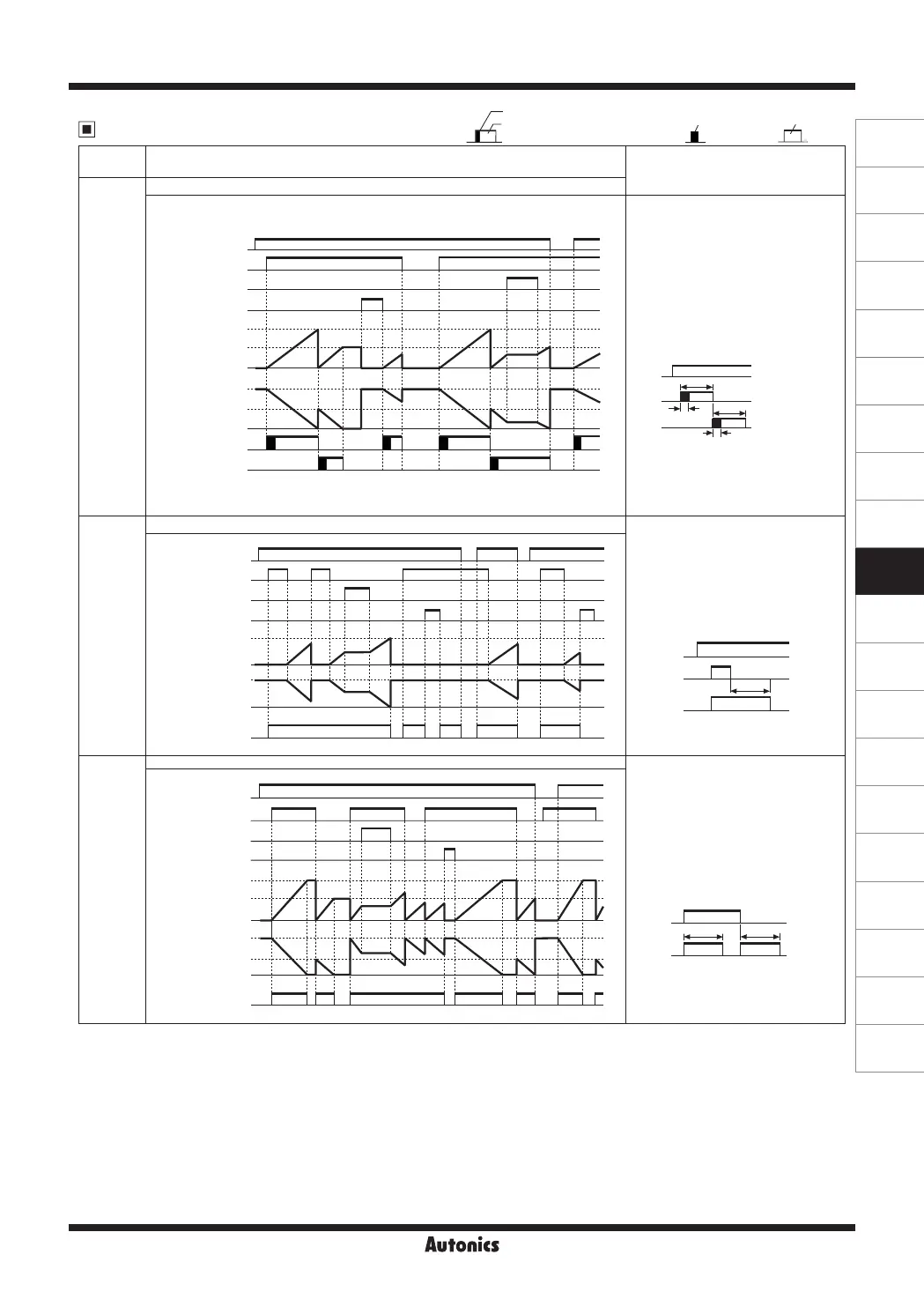

Output Operation Mode (Timer)
Output
mode
Time chart
Operation
INT.2
[
INt2
]
Interval 2 (Power RESET)
RESET
Setting time 1
Setting time 1
Setting time 2
Setting time 2
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
OUT2
OUT1
1) Time starts when INA signal is ON,
and resets when INA signal is OFF.
2) INA signal is ON, OUT1 output is ON
during T1 (HOLD) or t1.
3) When it reaches setting time 1,
display value resets and OUT2
output is ON during T2 (HOLD) or t2
output time.
※
Output turns OFF when reaching
the setting time even if one-shot is
longer than setting time.
OFD
[
OFD
]
Signal Off Delay (Power RESET) 1) If INA is ON, control output remains
ON. (except when power is off and
reset is on)
2) When INA signal is OFF, time
processes.
When it reaches setting time,
indication value and control output
are auto reset automatically.
RESET
Setting time
Setting time
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
OUT2(OUT)
NFD
[
NFD
]
On-Off Delay (Power RESET)
1) When INA input is ON, output is ON
and time is progressing, then output
is OFF after On_Delay time.
2) When INA input is OFF, output is ON
and time is progressing, then output
is OFF after Off_Delay time.
3) If INA input is OFF within On_Delay
time, step 2 starts.
4) If INA input is ON within Off_Delay
time, step 1 starts.
RESET
On_Delay
On_Delay
Off_Delay
Off_Delay
POWER
INA(START)
INH(INHIBIT)
0
0
Up
Display
Down
OUT2(OUT)
T1
t1
t2
T2
INA
OUT1
OUT2
T1: Setting time 1
T2: Setting time 2
t1: One-shot1
t1: One-shot2
(1-stage SET model has no
INt2
mode)
POWER
INA
OUT2
(OUT)
T: Setting time
T
INA
OUT2
(OUT)
T1: On_Delay
T2: Off_Delay
T1 T2
Retained output
One-shot output (0.01 to 99.99 sec)
Retained output
One-shot output
※
Power RESET: There is no memory protection. (resets the display value when power is off)
※
Power Hold: There is memory protection.
(memorizes the display value at the moment of power off, indicates the memorized display value when power is resupplied.)
