Time Range (Timer)
SW 4-digit 6-digit SW 4-digit 6-digit
99.99sec 99999.9sec 999.9min 99999.9min
999.9sec 999999sec
99hour
59min
99hour
59min
59sec
9999sec
99min
59.99sec
999.9hour
9999hour
59min
99min
59sec
999min
59.9sec
9999hour 99999.9hour
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
1 1
1 1
1 1
1 1
2 2
2 2
2 2
2 2
3 3
3 3
3 3
3 3

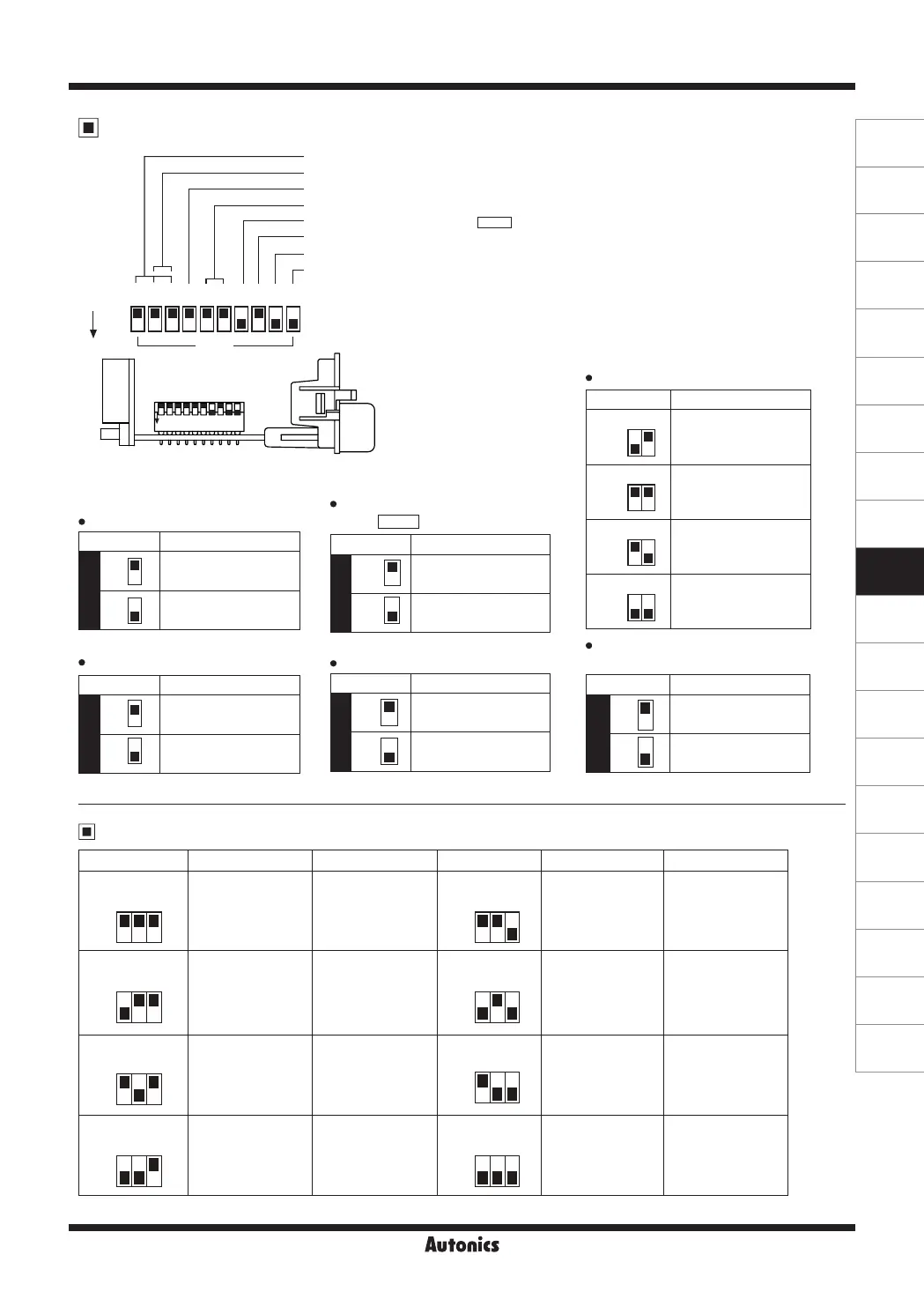

DIP Switch Setting
SW Function
OFF
ON
5 6
1cps
OFF
ON
5 6
30cps
OFF
ON
5 6
2kcps
OFF
ON
5 6
5kcps
SW
2 3 4 5 6 7 8 9
10
Time range (timer)
Input operation mode (counter)
Up/Down mode
Max. counting speed (counter)
Available/Unavailable front
RESET
key
Memory backup
Counter/Timer
Input logic (NPN/PNP)
OFF
ON
1
Up/Down mode
SW Function
4
OFF
ON
Up mode
OFF
ON
Down mode
Memory backup
SW Function
8
OFF
ON
Memory backup
OFF
ON
No memory backup
SW Function
10
OFF
ON
PNP
(voltage input)
OFF
ON
NPN
(no-voltage input)
Available/Unavailable
front
RESET
key
SW Function
7
OFF
ON
Unavailable front
RESET key
OFF
ON
Available front
RESET key
Counter/Timer
SW Function
9
OFF
ON
Timer mode
OFF
ON
Counter mode
Max. counting speed (counter)
Input logic
(CP1, CP2, INHIBIT, RESET input)
Factory default
1 2 3 4 5 6 7 8 9 10
ON
