Dual PID Auto Tuning Control
This unit has output for control and sub(alarm) output. Sub output is optional. (This alarm output is relay contact(1a) and
operates regardless of output for control.) Alarm output operates when the temperature of target is getting higher or lower
than setting value.
Select one among 6 alarm operations [
AL-1
/
2
/
3
/
4
/
5
/
6
]
of event 1, 2[
EU-1
,
EU-2
] at parameter 2 group and set alarm
temperature (deviation or absolute temperature) in AL1, AL2 alarm temperature[
AL1
,
AL2
] at parameter 1 group.
● Since
EU-1
and
EU-2
operate separately, both
EU-1
and
EU-2
can be used as a high or low 2nd alarm operation.
● When selecting
LBA
or
SBA
function in
EU-1
,
EU-2
of parameter 2 group, alarm cannot be operated.
Alarm
Alarm operation
Alarm option
Mode Name Description
AL-A
Standard alarm If it is an alarm condition, alarm output is ON. If it is a clear alarm condition, alarm output is OFF.
AL-B
Alarm latch If it is an alarm condition, alarm output is ON and maintains ON status.
AL-C
Standby sequence
First alarm condition is ignored and from second alarm condition, standard alarm operates.
When power is supplied and it is an alarm condition, this rst alarm condition is ignored and from the
second alarm condition, standard alarm operates.
AL-D
Alarm latch and
standby sequence
If it is an alarm condition, it operates both alarm latch and standby sequence. When power is supplied
and it is an alarm condition, this rst alarm condition is ignored and from the second alarm condition,
alarm latch operates.

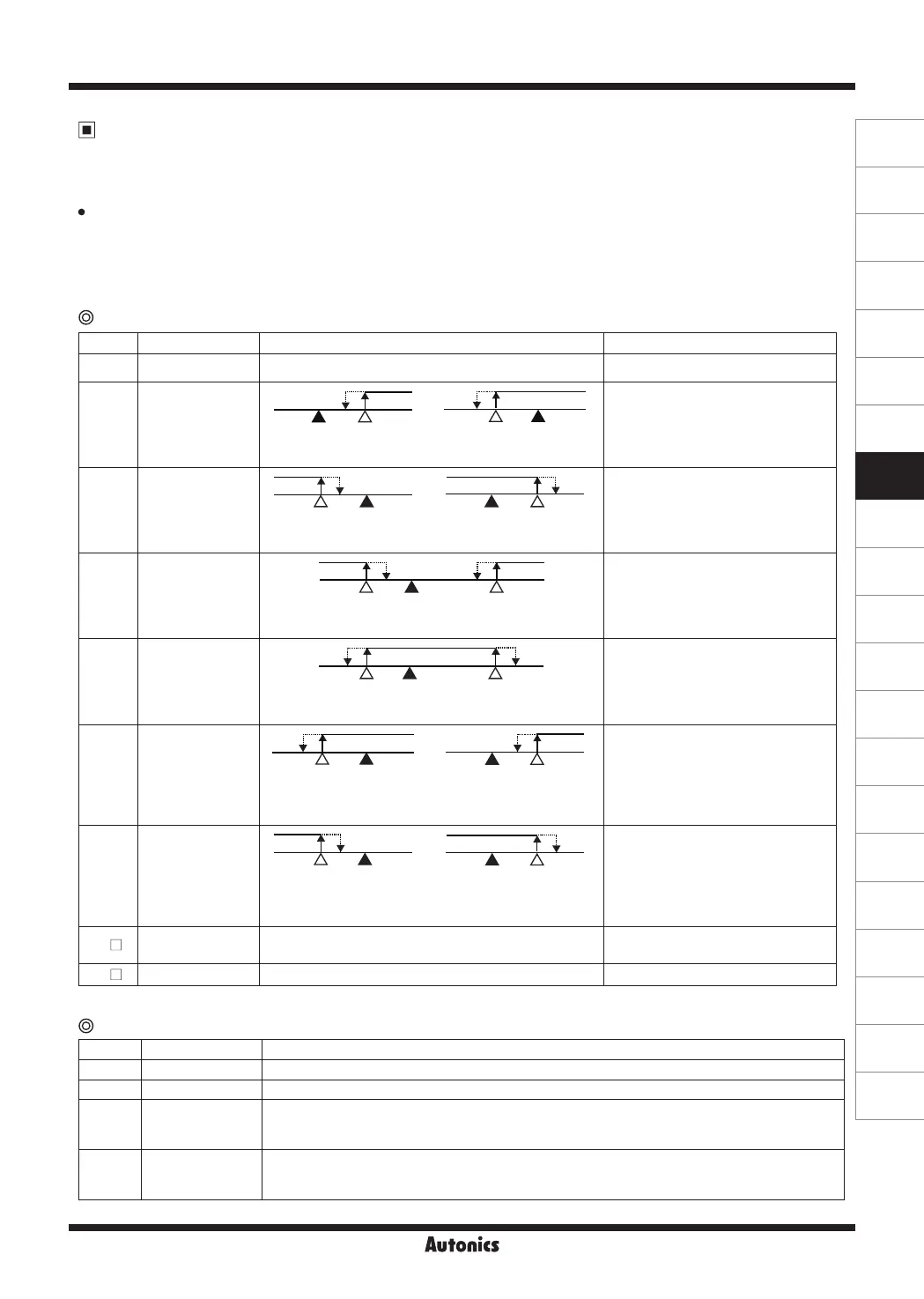

Mode Name Alarm operation Description
AL-0
- - No alarm output
AL-1
Deviation
high-limit
alarm
SV
100℃
PV
110℃
OFF ONH
PV
90℃
SV
100℃
OFF ONH
If deviation between PV and SV as high-
limit is higher than set value of deviation
temperature, the alarm output will be ON.
High deviation: Set as 10℃ High deviation: Set as -10℃
AL-2
Deviation
low-limit
alarm
PV
90℃
SV
100℃
OFFON H
SV
100℃
PV
110℃
OFFON H
If deviation between PV and SV as low-
limit is higher than set value of deviation
temperature, the alarm output will be ON.
Lower deviation: Set as 10℃ Lower deviation: Set as -10℃
AL-3
Deviation
high/low-limit
alarm
PV
90℃
PV
120℃
SV
100℃
OFFON ONH H
If deviation between PV and SV as
high/low-limit is higher than set value of
deviation temperature, the alarm output
will be ON.
Lower deviation: Set as 10℃, High deviation: Set as 20℃
AL-4
Deviation
high/low-limit
reserve alarm
PV
90℃
PV
120℃
SV
100℃
OFF OFFONH H
If deviation between PV and SV as
high/low-limit is higher than set value of
deviation temperature, the alarm output
will be OFF.
Lower deviation: Set as 10℃, High deviation: Set as 20℃
AL-5
Absolute
value high
limit alarm
PV
90℃
SV
100℃
OFF ONH
SV
100℃
PV
110℃
OFF ONH
If PV is higher than the absolute value,
the output will be ON.
Absolute-value Alarm:
Set as 90℃
Absolute-value Alarm:
Set as 110℃
AL-6
Absolute
value low
limit alarm
PV
90℃
SV
100℃
OFFON H
SV
100℃
PV
110℃
OFFON H
If PV is lower than the absolute value,
the output will be ON.
Absolute-value Alarm:
Set as 90℃
Absolute-value Alarm:
Set as 110℃
SBa
Sensor break Alarm -
It will be ON when it detects sensor
disconnection.
LBa
Loop break Alarm - It will be ON when it detects loop break.
※
H: Alarm output hysteresis [
AHYS
]
