Tri-Sensor
(#909-GO1.5)
Directional Flow Indicator
Direction of Water Flow
Temperature Sensor Post
Salt Sensor Blades
Tri-Sensor O-Ring (#19028)
Flow Switch Paddle
Section 4c –SERVICE and MAINTENANCE

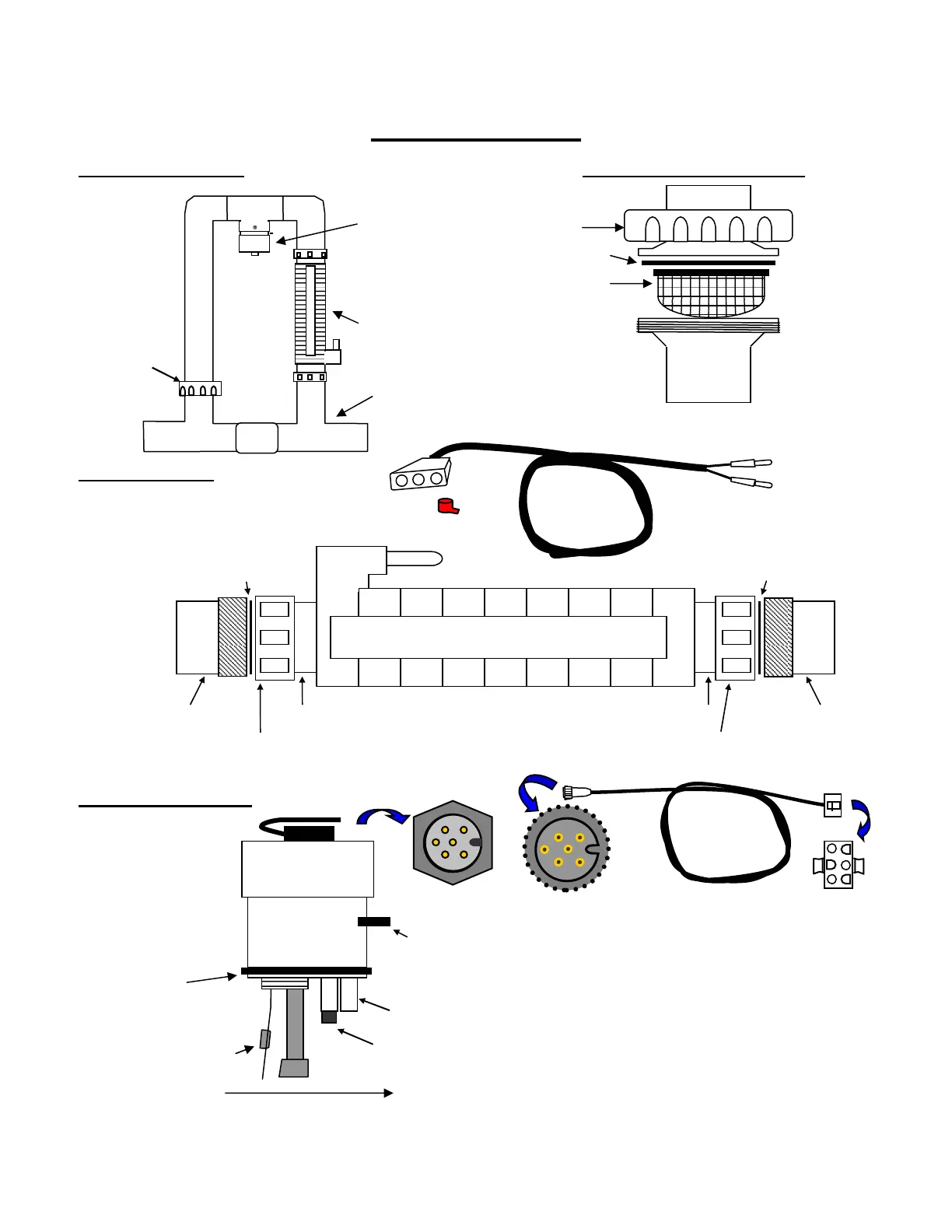

Parts Explosion
Manifold Assembly: Manifold Union w/Strainer:
(#19065)
Upper manifold
w/Tri-sensor TRI-SENSOR Union Nut
(#941R)
Union O-Ring (#19014)
Strainer (#19064)
CELL w/ UNIONS
MANIFOLD
UNION
w/Strainer
MANIFOLD BASE w/Check Valve
(#941)
Electrolytic Cell:
(Cell Unions and Cord ordered separately)
Red Cap Plug for SC-36 and SC-48 cell cord (#19050) 12’ (3.6m) Cell Cord (# 952-ST/DIG)
UNION COMPLETE (#19070)
Union O-Ring (#19013) Union O-Ring (#19013)
Cell (#’s SC-36, SC-48, SC-60)
1.5” Half union (#312-C) 2” Slip Union (#312-B) 2” Slip Union (#312-B) 1.5” Half Union (#312-C)
(38 mm) (51 mm) (51 mm) (38 mm)
Nut only for 2” Slip Union (#312-A) Nut Only for 2” Slip Union (#312-A)
(51 mm) (51 mm)
Tri-Sensor Assembly:
(Cord Ordered Separately)
View of locking
Quick connect heads 12’ (3.6m) Tri-Sensor Cord (# 956-1)
To Next Page
