Autostacker™ Parking Lift 17 P/N 5900248 — Rev. B — May 2021
Not all components shown. View is front of Autostacker facing towards Rear.
2. Attach one end of the Bottom Connector Tube to a Leg Base using four Bolts from the Parts Box.
3. Use a Forklift or Shop Crane to lift the two Leg Assemblies onto the lowest Safety Lock (which is
roughly 52 inches from the ground).
4. Take three Bolts from the Parts Box, then use them to connect one end of the Top Connector
Tube to the corresponding end of a Platform arm.
Tip The Top Connector Tube is heavy; you need at least two people to connect it (one
person to hold the tube in place, one to connect the tube using the Bolts) or use a
Forklift or Shop Crane to hold it in place while you connect it.
5. Take three more Bolts and use them to connect the other end of the Top Connector Tube to the
corresponding end of a Platform Arm.

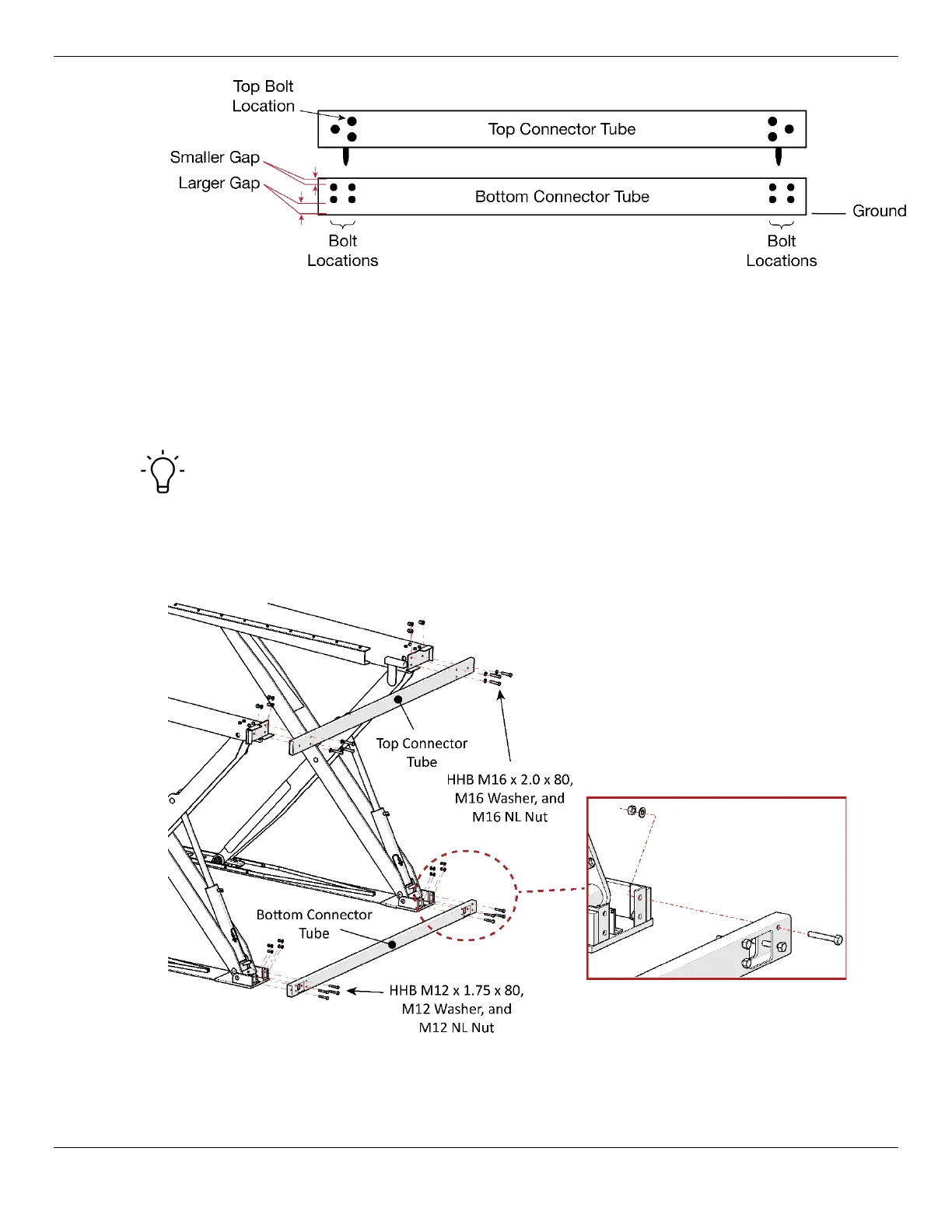

Drawing shows how to connect the Top and Bottom Connector Tubes to the Platform Arms. Not
all components shown, some components exaggerated for clarity.
