Autostacker™ Parking Lift 8 P/N 5900248 — Rev. B — May 2021

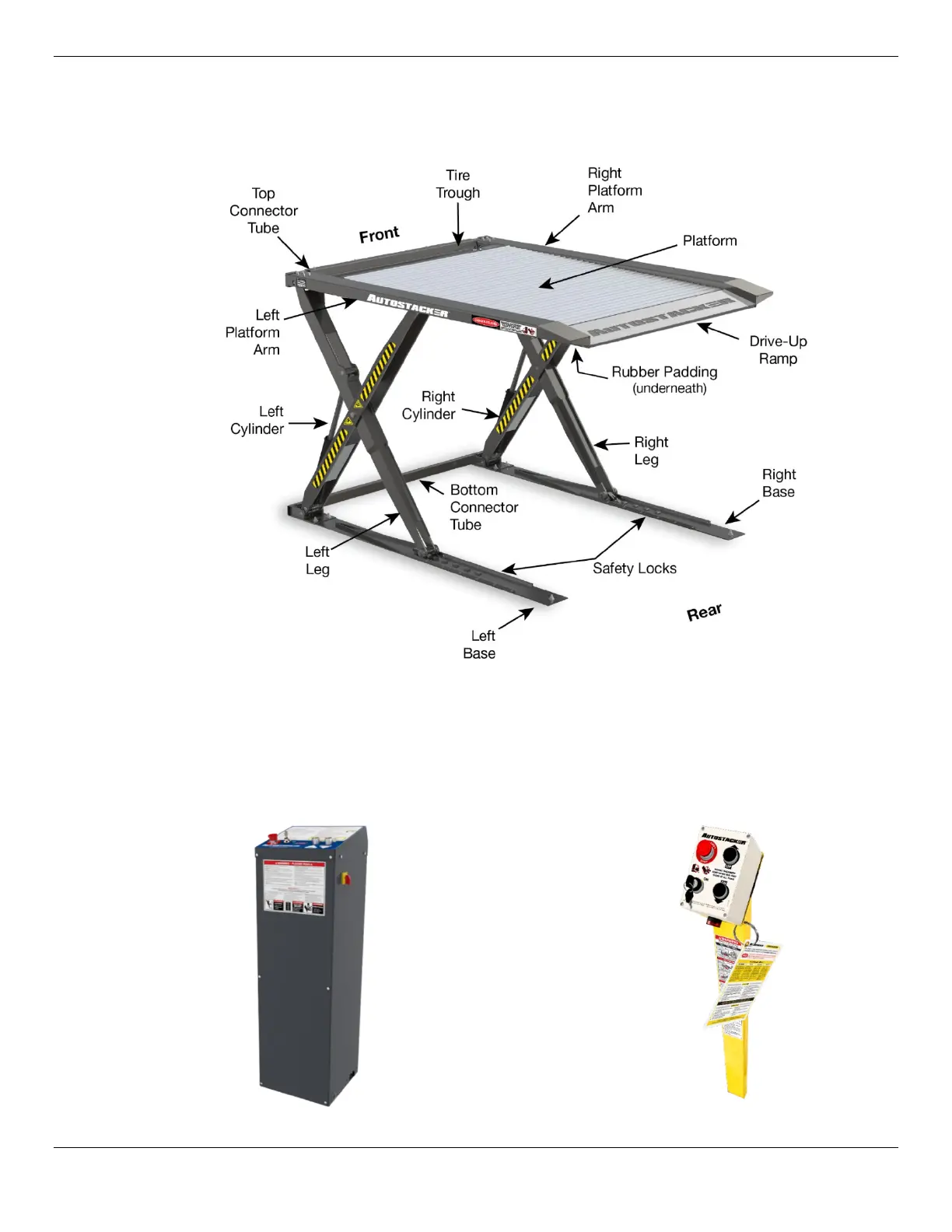

Components
Autostacker components include:
The following drawing shows the two possible locations for the Lift Controls:
• Console. Positioned at the Front of the Lift, on either side. For a Single-Lift configuration.
• Control Stand. Can be positioned at the Front or Rear of the Lift. Separate installation for either
orientation. For a Multi-Lift configuration.
Console (Single-Lift):
Control Stand (Multi-Lift):
