Autostacker™ Parking Lift 31 P/N 5900248 — Rev. B — May 2021
Wiring a Power Disconnect Switch
⚠ DANGER All wiring
must
be performed by a licensed, certified Electrician. Do not perform
any
maintenance or installation on the Lift without first making sure that main
electrical power has been disconnected from the lift and
cannot
be re-energized
until all procedures are complete.
⚠ WARNING User-supplied wiring connects to the wiring
inside
the Electrical Box; remove the
front cover to access the inside. Do not accidentally connect to the electrical
components on the underside of the Console Top.

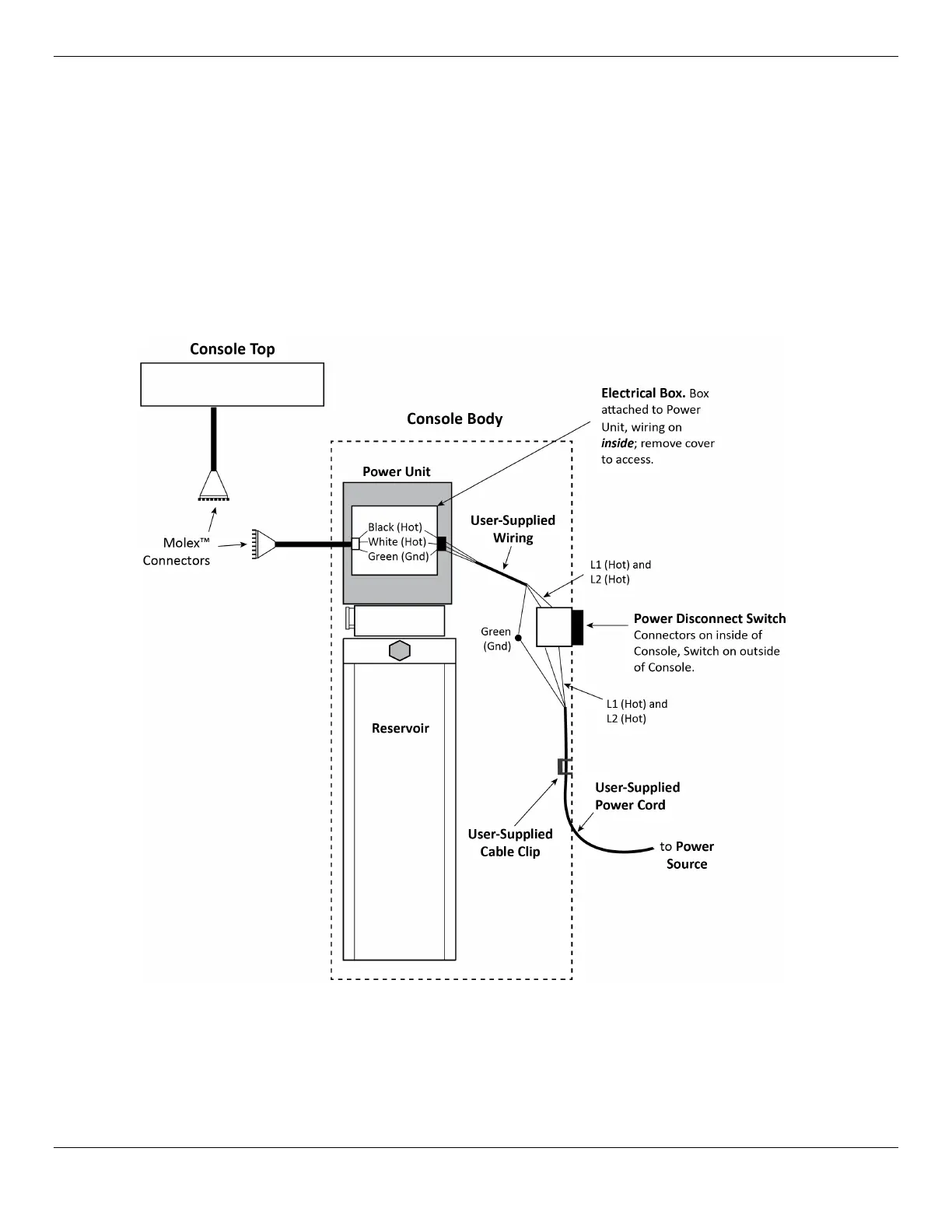

The following diagram shows the components related to installing a Power Disconnect Switch.
Drawing not to scale. Not all components shown. Only connect Molex connectors to each other.
