Autronica Autro Safe Connecting

Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 17

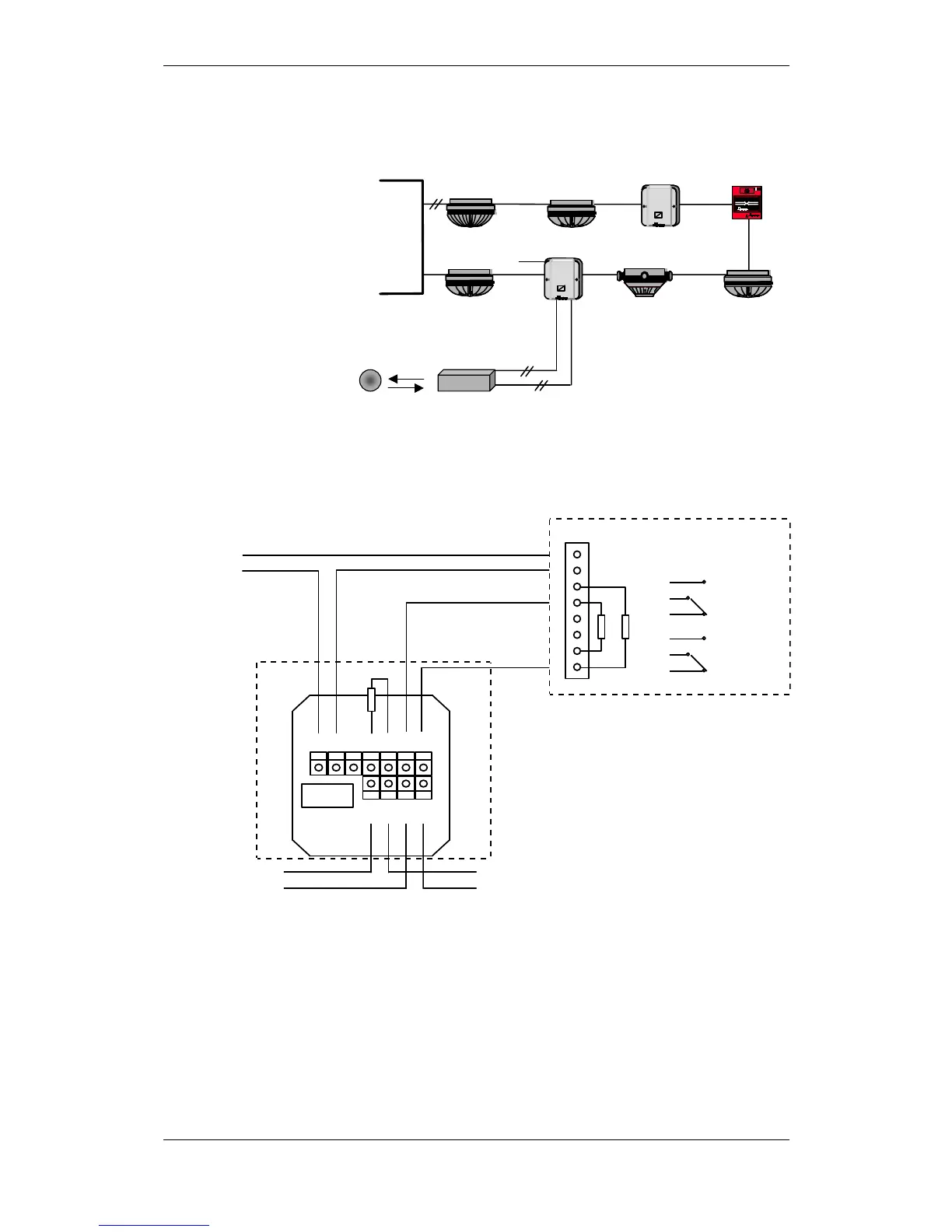

3.9 AutroBeam 25 Infrared Beamdetector
24 VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-320
AutroBeam 25
Alarm
signal
BN- 320
BRANNALARM
Tilpasningsenh et
FIR E AL ARM
Interface un it
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenh et
FIR E AL ARM
Interface un it
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
Loop
Driver
Module
Reflector
1 2 3 4
11 10 9 8 7 6 5
C NC NO - + - +
+ + - -
Main loop in +
-
2k
+
-
24VDC
1
2
3
4
5
6
7
8
2k
910
+
-
24V
5
3
7
4
8
6
AutroBeam 25
ALARM
RELAY
FAULT
RELAY
+
Main loop out
-
BN-320
