Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS
Page 16

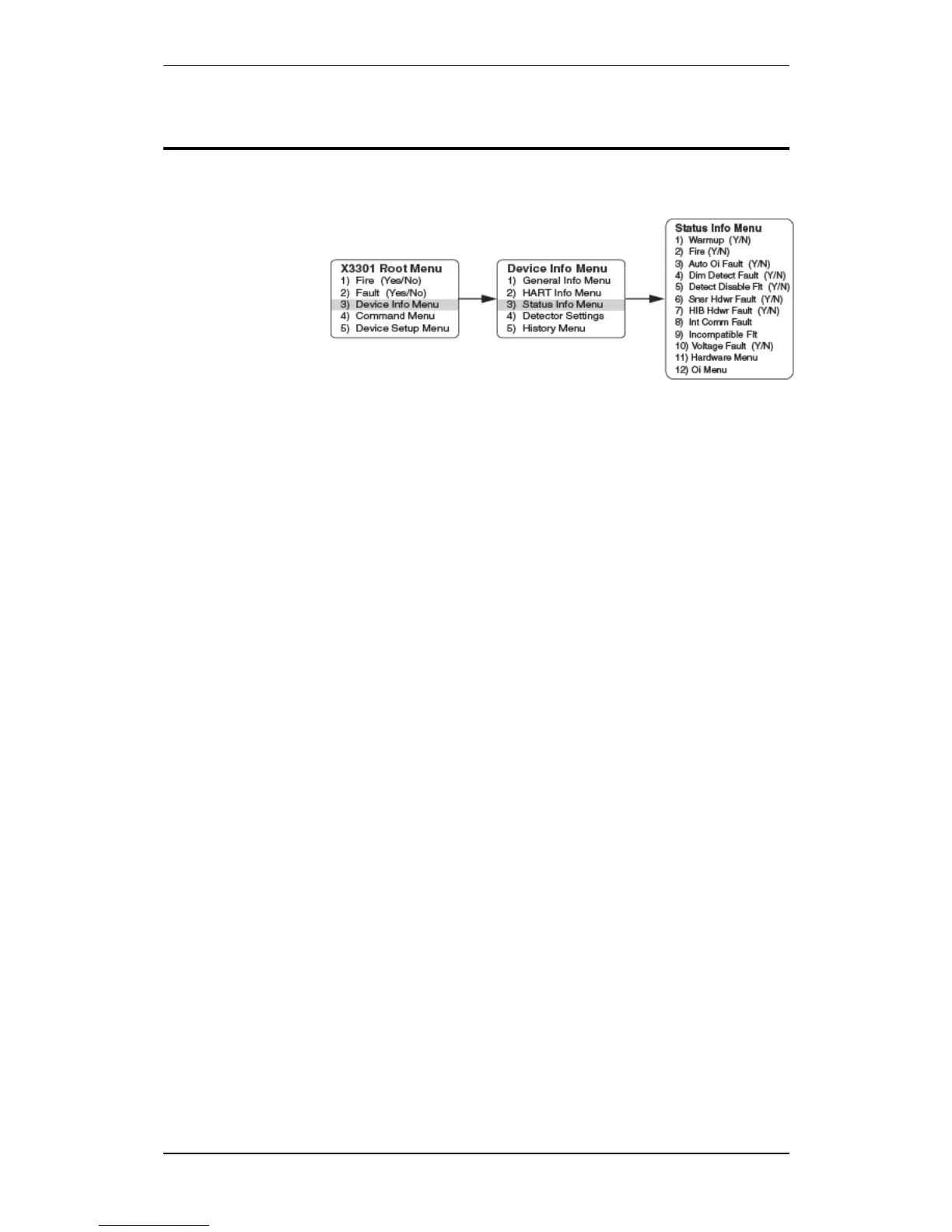

12. Status Info Menu
This menu (read only) shows extensive status information about the
detector.
1) Warmup (Y/N) Device is in the power-up time delay (warm-up)
mode.
2) Fire (Y/N) Indicates “Y” if the device is in a fire alarm status —
analog output is at 20 mA, fire alarm relay is actuated and LED is red.
3) Auto Oi Fault (Y/N) Automatic Oi Fault. Check viewing windows
and Oi reflector plate for cleanliness.
4) Dim Detect Fault (Y/N) Diminished Detection Fault. Excessive
background IR radiation. Eliminate IR interference and/or re-
aim/orient detector.
5) Detect Disable Flt (Y/N) Flame detector function has been
disabled. Check viewing windows for cleanliness and/or presence of
excessive background IR signal.
6) Snsr Hdwr Fault (Y/N) Sensor hardware fault.
7) HIB Hdwr Fault (Y/N) HART Interface Board hardware fault.
8) Int Comm Fault Internal communication fault.
9) Incompatible Flt Sensor module firmware version is not
compatible with HART Interface Board.
10) Voltage Fault (Y/N) Detector operating voltage is out of tolerance.
11) Hardware Menu Refer to sub-menu.
12) Oi Menu Refer to sub-menu.
