AUX Light Commercial Air Conditioners T1,50Hz, R410a,ON/OFF
31

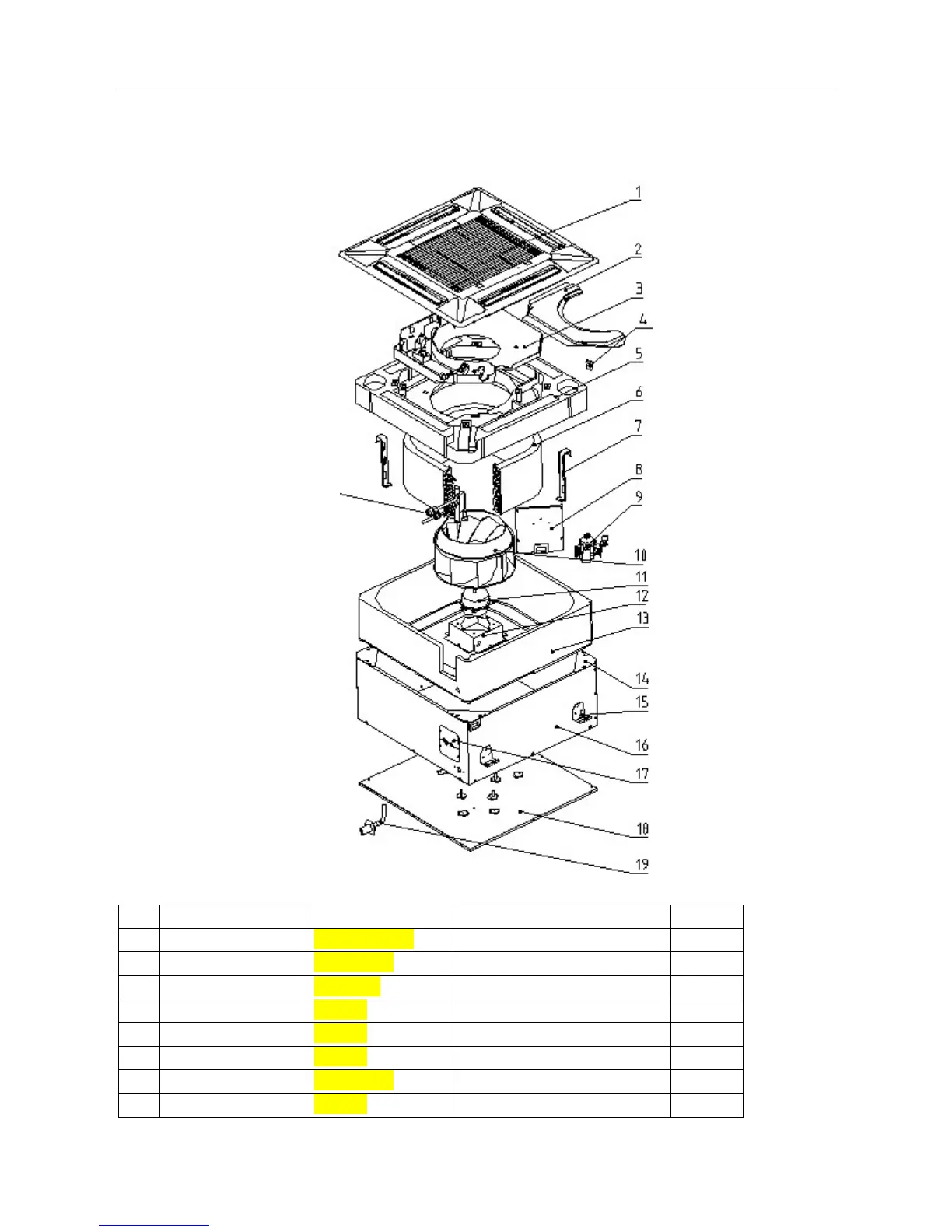

7.Explode view
ALCA-H12/4R1AA, ALCA-H18/4R1AA
ALCA-H12/4R1AAALCA-H18/4R1AA
N0.
Materiel No.
Chinese name
Part Name
Quantity
1
面板 MB13(英文)
Panel MB13
1
1.1
回风格栅组件
Return-air grille assembly
1
1.2
空气过滤网
Air filter net
1
1.3
导风叶片
guide wind vane
4
1.4
步进电机
Step motor
4
1.5
显示灯板
Display board
1
1.6
面板围框组件
Panel frame assembly
1
2
电控盒盖
Cover for electric components
1
