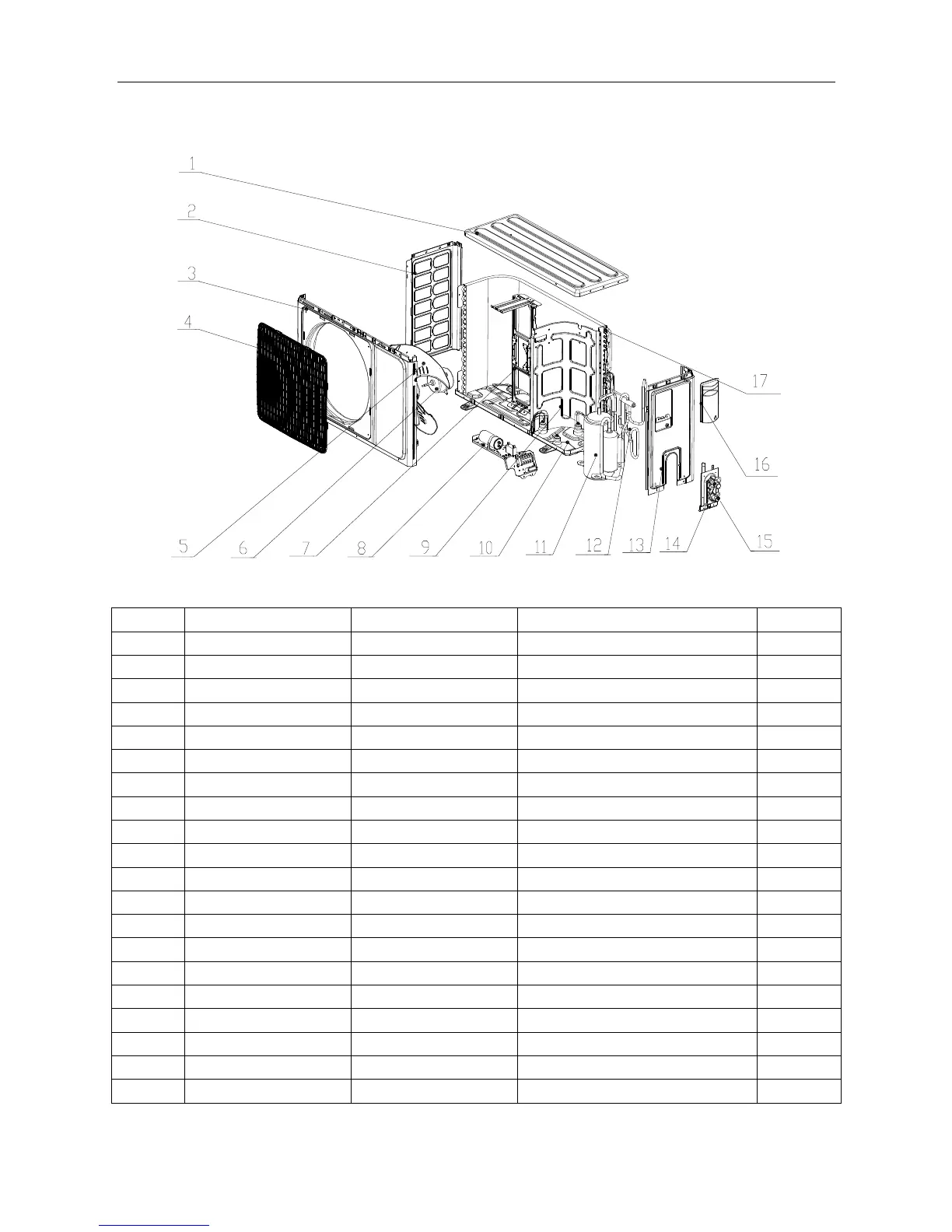

6. Explore View
AL-H12/4R1D(U) AL-H18/4R1D(U)
AL-H12/4R1D(U), AL-H18/4R1D(U)
No.
Parts No.
Chinese Name
Part Name
Quantity
1
顶盖板
Top Cover
1
2
左侧板
Left side panel
1
3
前面板
Front Panel
1
4
网罩
Grille
1
5
风叶
Fan
1
6
电机
Fan Motor
1
7
电机支架
Motor Bracket
1
8
电气总成
Control Box Assembly
1
8.1
压缩机电容
Compressor capacitor
1
8.2
风机电容
Fan motor capacitor
1
8.3
端子板
Terminal Block
1
9
隔风立板
Barrier
1
10
底盘组件
Base pan assembly
1
11
压缩机
Compressor
1
12
四通阀组件
4way assembly
1
13
右侧板
Right side panel
1
14
截止阀 1/2in
Stop valve
1
15
截止阀 3/8in
Stop valve
1
16
电器盖板
Control cover
1
17
冷凝器总成
Condenser assembly
1
