AUX ALCA-H**R1AA User Manual

AUX-Light CAC 50Hz R410A Trouble shooting
100

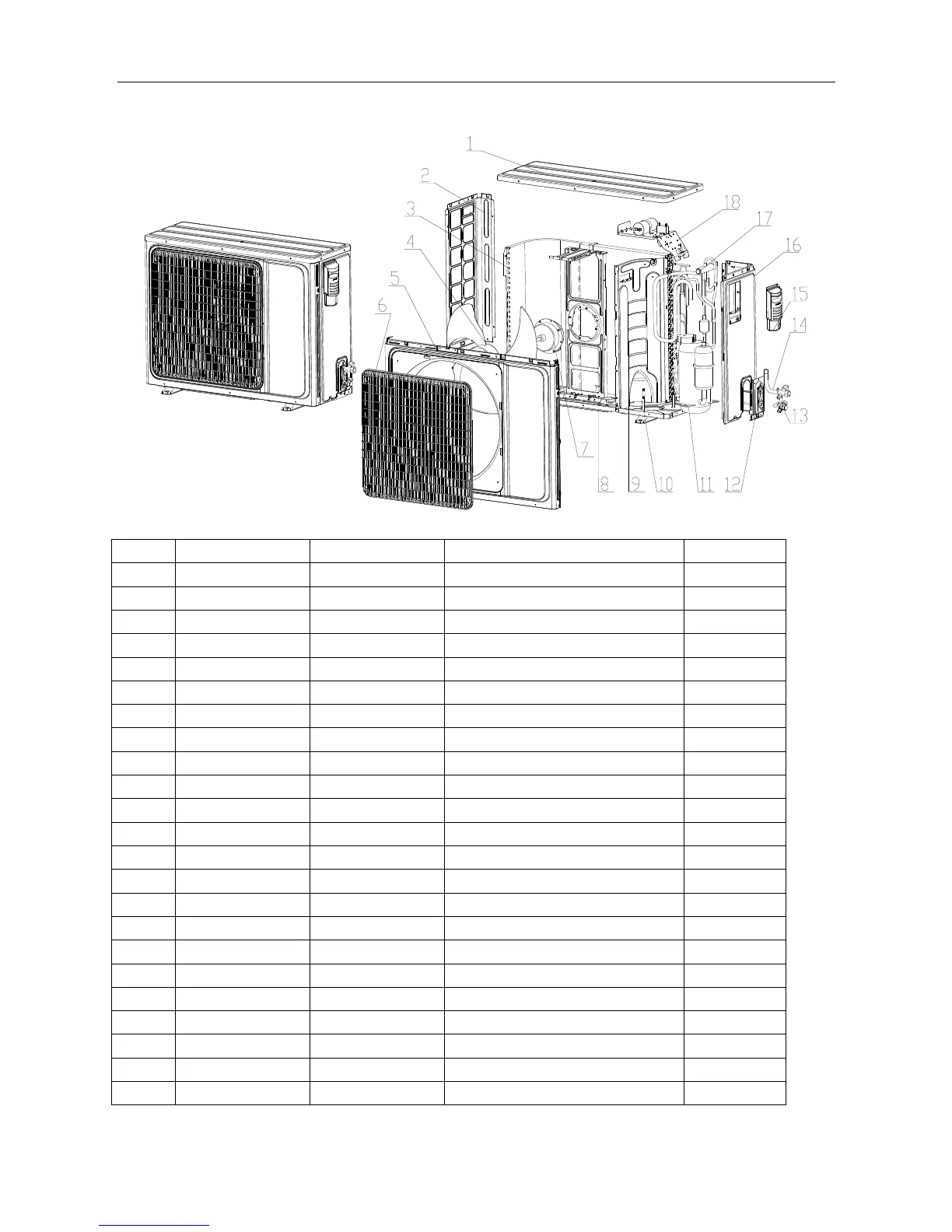

AL-H24/4R1D(U)
AL-H24/4R1D(U)
NO.
Parts No.
Chinese name
Parts name
Quantity
1
顶盖板
Top cover
1
2
左侧板
Left-hand board
1
3
冷凝器总成
Condenser assembly
1
4
轴流风叶
Axial flow fan
1
5
大面板
Big panel
1
6
网罩
Grille
1
7
室外电机
ODU fan motor
1
8
电机架
Motor support
1
9
隔风立板
Partition board
1
10
底盘组件
Chassis parts
1
11
压缩机及附件
Compressor
1
12
阀板
Vavle board assembly
1
13
截止阀 5/8 inch
Stop valve
1
14
截止阀 3/8 inch
Stop valve
1
15
电器盖板
E-parts cover
1
16
右侧板
Right side panel
1
17
四通阀组件
Four-way valve assembly
1
18
电器架总成
E-parts bracket assembly
1
18.1
交流接触器
Relay contact
1
18.2
压缩机电容
Capacitor,compressor
1
18.3
风机电容
Capacitor,fan motor
1
18.4
温度传感器 0.5m
Sensor 0.5m
1
18.5
温度传感器 1m
Sensor 1m
1
