AUX ALCA-H**R1AA User Manual

AUX-Light CAC 50Hz R410A Trouble shooting
101

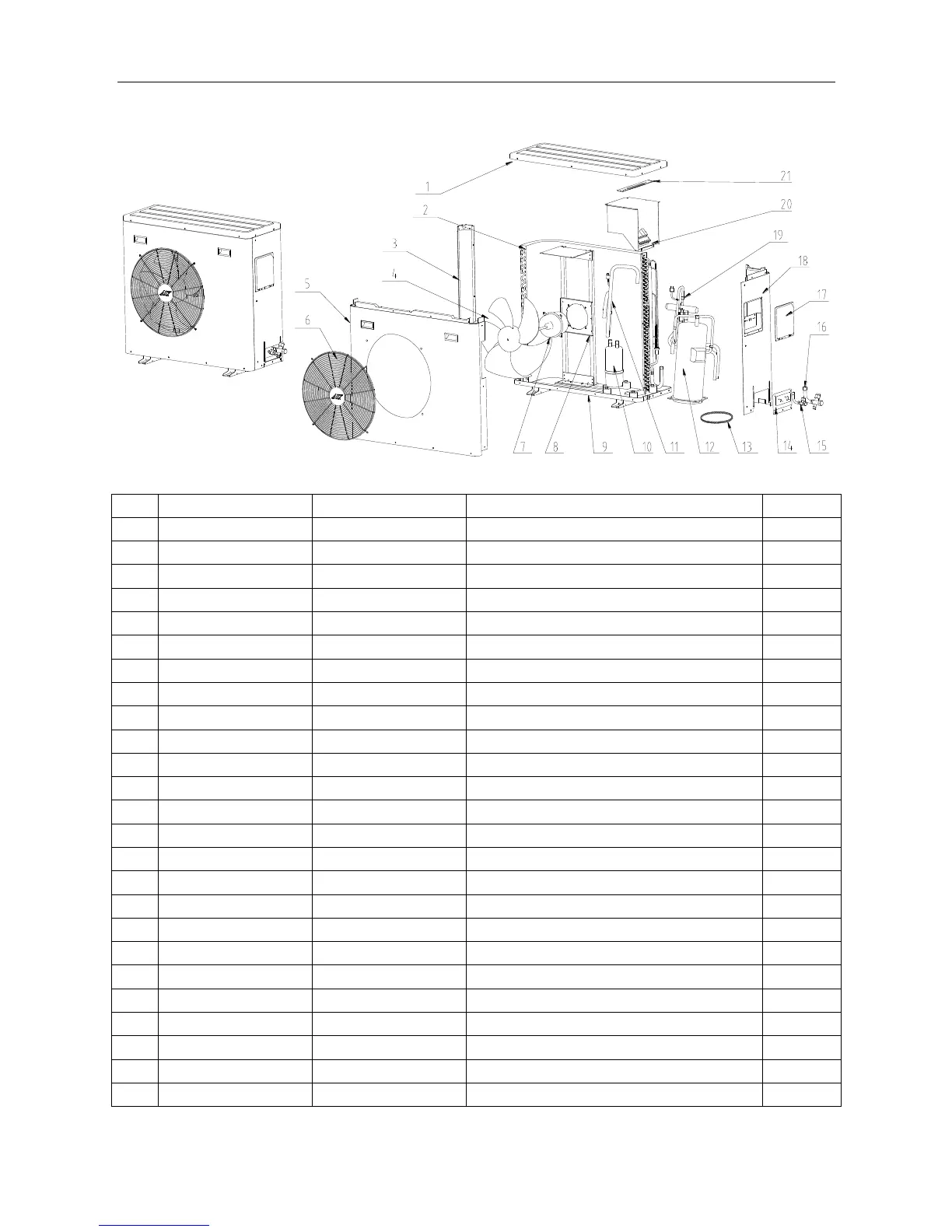

AL-H36/4R1(U),AL-H36/5R1D(U)
AL-H36/4R1(U),AL-H36/5R1D(U)
No.
Parts No.
Chinese Name
Part Name
Quantity
1
顶盖板
Top cover board
1
2
冷凝器总成
condenser assembly
1
3
左侧板
Left-hand board
1
4
电机架组件
Motor bracket assembly
1
5
室外风扇电机
Outdoor Motor
1
6
轴流风叶
Axial-flow wind leaves
1
7
面板
Big panel
1
8
面板网罩
Net for big panel
1
9
压缩机消音棉
Compressor muffler cotton (cylinder)
1
10
底盘组件
Chassis assembly
1
11
压缩机消音棉
Compressor muffler cotton top cylinder
1
12
气液分离器
Flash chamber assembly
1
13
回气管组件
Return air pipe assembly
1
14
压缩机
Compressor
1
15
四通阀管路组件
Four-way valve assembly
1
15.1
四通阀
Four-way valve loop
1
15.2
四通阀线圈
Four-way valve loop
1
15.3
消音器
Muffler
1
15.4
高压开关
High Pressure Switch
1
16
右侧板
Right-hand board
1
17
阀板
Stop valve board
1
18
截止阀组件 3/8in
Stop valve 3/8in
1
19
截止阀组件 5/8in
Stop valve 5/8in
1
21
电控总成
Electric assembly
1
21.1
电容
Capacitor for fan motor
1
