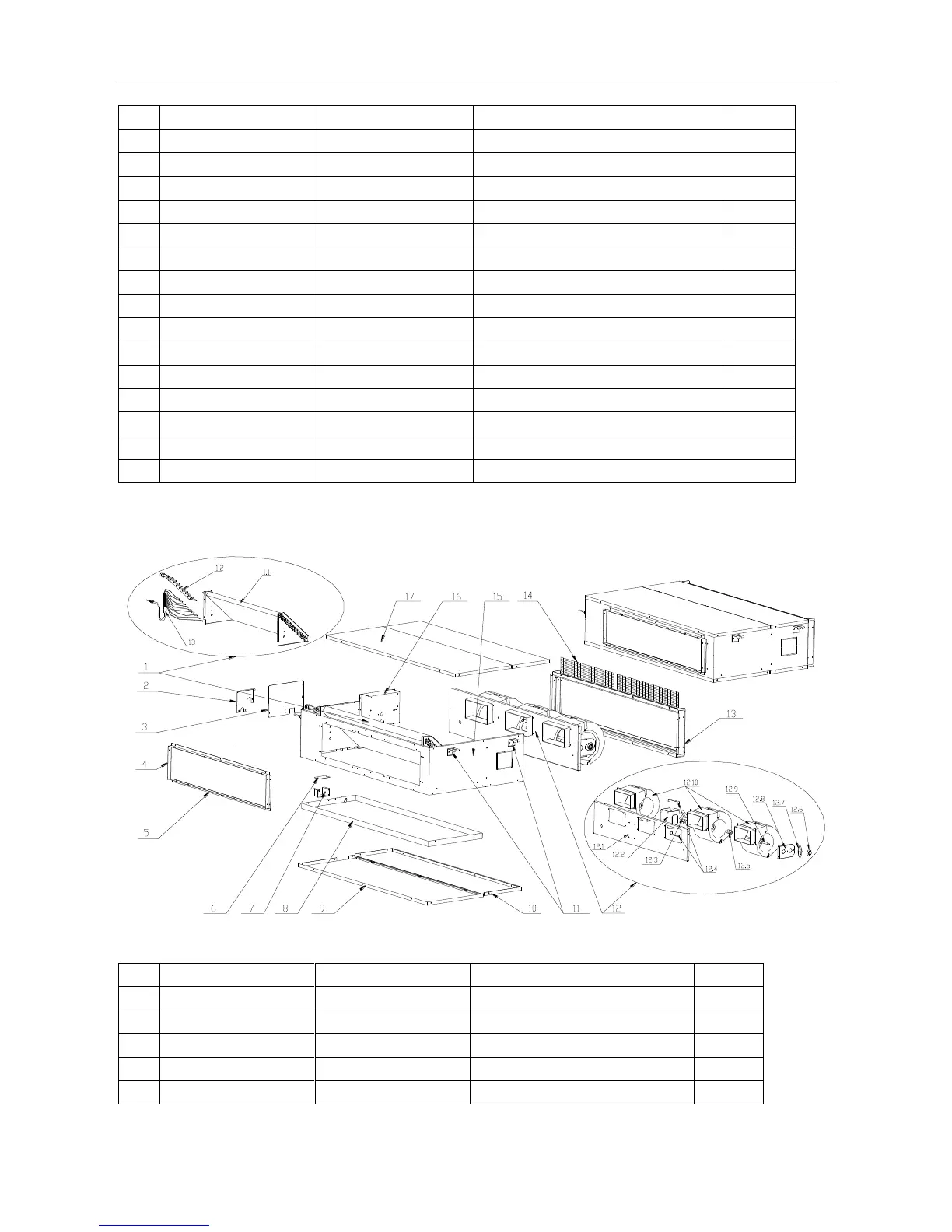

AUX ALCA-H**R1AA User Manual

AUX-Light CAC 50Hz R410A Universal outdoor unit
81
13
空气过滤网
Air filter
1
14
过滤网滑道组件
slideway assembly
1
14.1
左右滑道组件
Left&Right slideway assembly
2
14.2
上下滑道组件
Up&down slideway assembly
2
14.3
左右过滤器法兰
Left&Right france
2
14.4
上下过滤器法兰
Up&down france
2
15
围板
Cabinet
1
16
电控盒总成
Electronics Box assembly
1
16.1
控制板
PCB board
1
16.2
变压器 QC2-E1
Transformer
1
16.3
回风温度传感器
Sensor 5K3470 1
1
16.4
盘管温度传感器
Sensor 5K3470 2
1
16.5
端子板 7 位
Terminal board
1
16.6
电控盒组件
Electric components box
1
17
顶盖板
Top cover board
1
18
回风盖板 B
Air inlet cover board B
1
ALMD-H48/5R1D, ALMD-H60/5R1D
ALMD-H48/5R1D, ALMD-H60/5R1D
N0.
Parts No.
Chinese name
Part Name
Quantity
1
蒸发器总成
Evaporator Assembly
1
1.1
蒸发器组件
Evaporator assembly
1
1.2
蒸发器集气管组件
Evaporator out pipe assembly
1
1.3
蒸发器进液管组件
Evaporator in pipe assembly
1
2
阀板
Valve board
1

AUX ALCA-H**R1AA Specifications

General

Brand	AUX
Model	ALCA-H**R1AA
Category	Air Conditioner
Language	English
