6. Duct

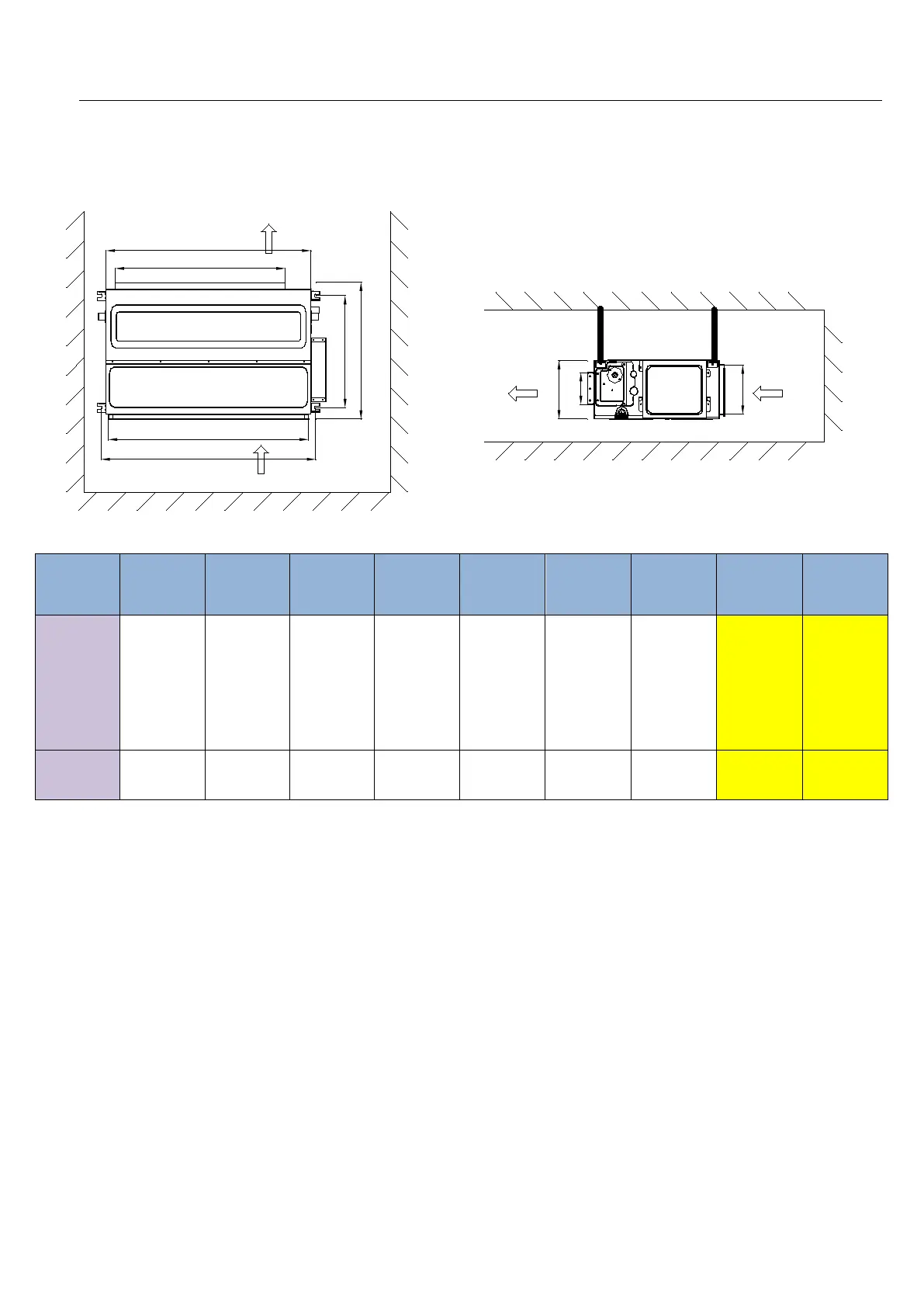

6.1 Installation spacing
6.2 Indoor unit suspension
Warning
：
Must seriously fasten bolts and nuts. The loosening would lead to air conditioner falling
and so on.
As shown, the indoor unit should be leaning to the drain hole to be convenient for drainage.
H
Air Outlet
Air Return
Air Outlet
I
G
C
D
Air Return
A
B
E
F
Model
A
（
mm
）
B
（
mm
）
C
（
mm
）
D
（
mm
）
E
（
mm
）
F
（
mm
）
G
（
mm
）
H
（
mm
）
I
（
mm
）
07K
09K
12K
583 700 684 734 383 470 168 110 200
18K 832 1000 977 1048 383 470 168 110- 200
