①
●Disassembly

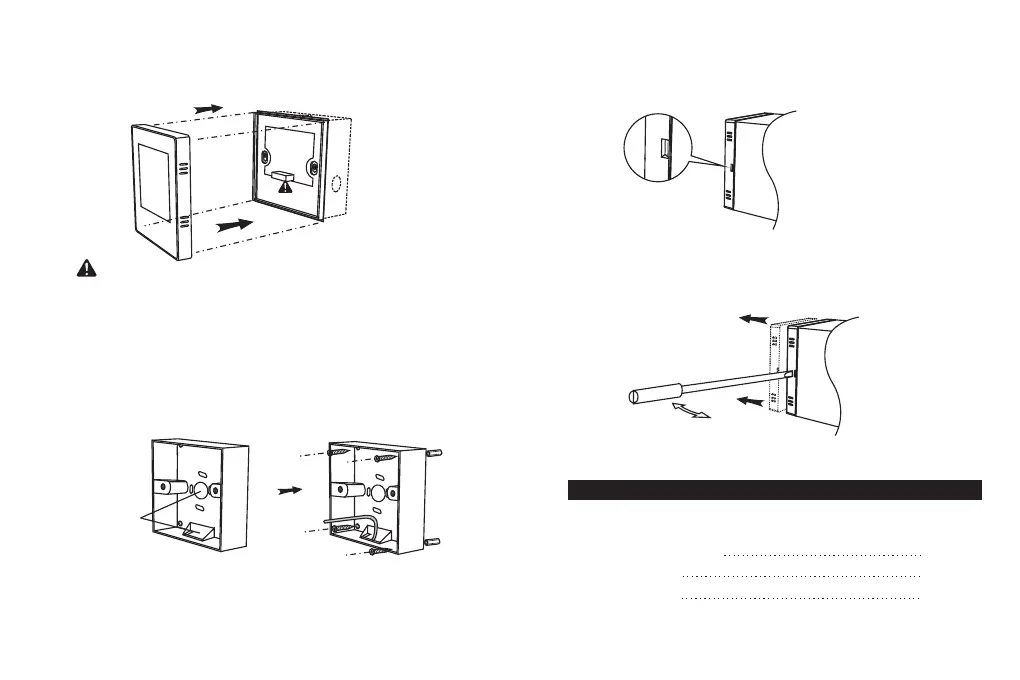

Use a flattened screwdriver to aim at the buckle beside the gap
and carefully pry the buckle, and then grasp the front panel with
both hands, so that the front panel of the amplifier is as parallel
as possible to the base. Be careful not to damage the pins on the
base.
②
Screwdriver
Package List
Digital power amplifier
Remote Control
1
Component quantity
1
1
- 16 -
Connect the front panel of the Bluetooth digital amplifier in
parallel with the fixed base, and close it tightly and carefully
and check the stability.
* Please arrange the alignment with the open position of the box
Put the connector through the reser ved holes around the box,
and put the mounting box into the wall groove by using four
self-tapping screws to fix the mounting box firmly in the wall
groove.
①
● Note on box installation：the depth of the box must not be
less than 40mm。
*reser ved
holes
⑤
Note: When the front panel and the base is fastened, insert the pin
into the front panel hole. The needle can not be bent or damaged,
otherwise it will cause serious damage to the amplifier.
groove in the wall
②
- 15 -
groove in the wall
Please refer yo step 3,step 4 and step 5 of the mounting box
installation to complete the installation.
Find the gap of the combination position between the right of front
panel of amplifier and the base.
