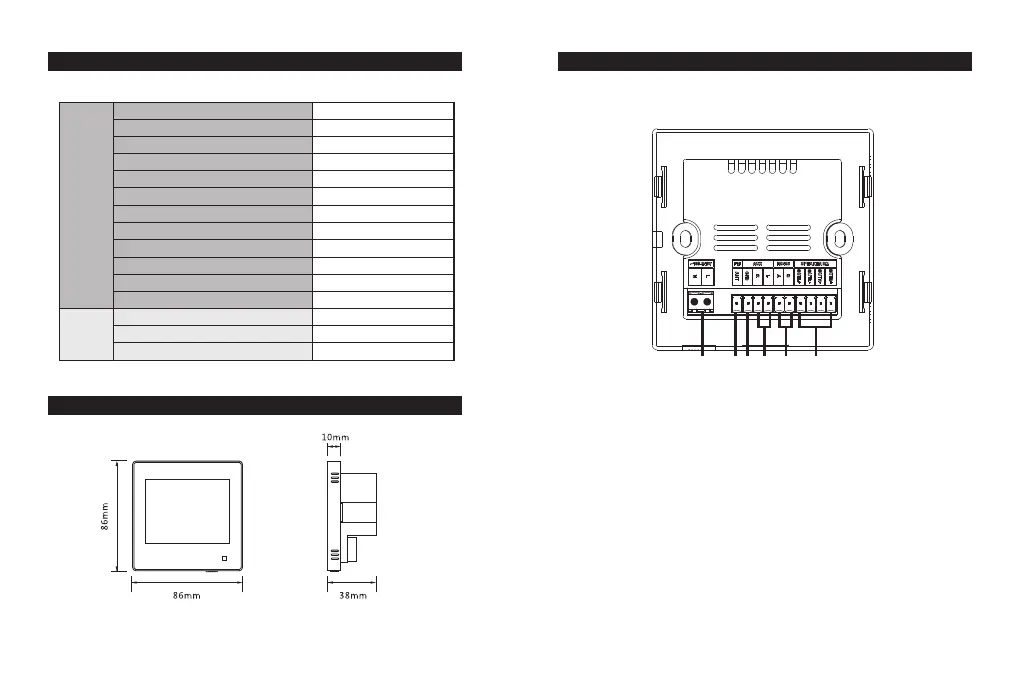

Installation and connection
Coonection port description：
① ~100-240VPower input
② Fmantenna
③ Signal ground line
④ Audio input 1 (2 × 0.3mm² dual shielded audio cable)
⑤ RS485 interface⑥ Amplifier output (oxygen-free copper)
Note: All wire connections must not be exposed .
① ⑤ ⑥③② ④
Rear of the amplifier
- 12 -
Parameters
Power Supply Input
2 ×10W
Output Power
~100-240V/50/60Hz
Rated Impedance 8Ω
Total Harmonic Distortion ≤0.03% (1KHz, 1W, 8Ω)
Signal to Noise Ratio >81dB
Frequency Response 20Hz – 20KHz
Product size 86×86×38mm
Bluetooth input
BT4.1
Remote control effective firing area angle 60°
Effective remote control distance 10m
Remote control batter y
CR2032
Auxiliar y input sensitivity (adjustable) AUX
AUX: 1.0V / 500mV
Audio format MP3，WMA，WAV，FLAC etc
Storage type SD 、USBcard
Product Size
- 11 -
Control inter face
RS485
Remote
control
Controller
