14 Installation (for qualified installers only)

Travis Industries 4122104 93508117

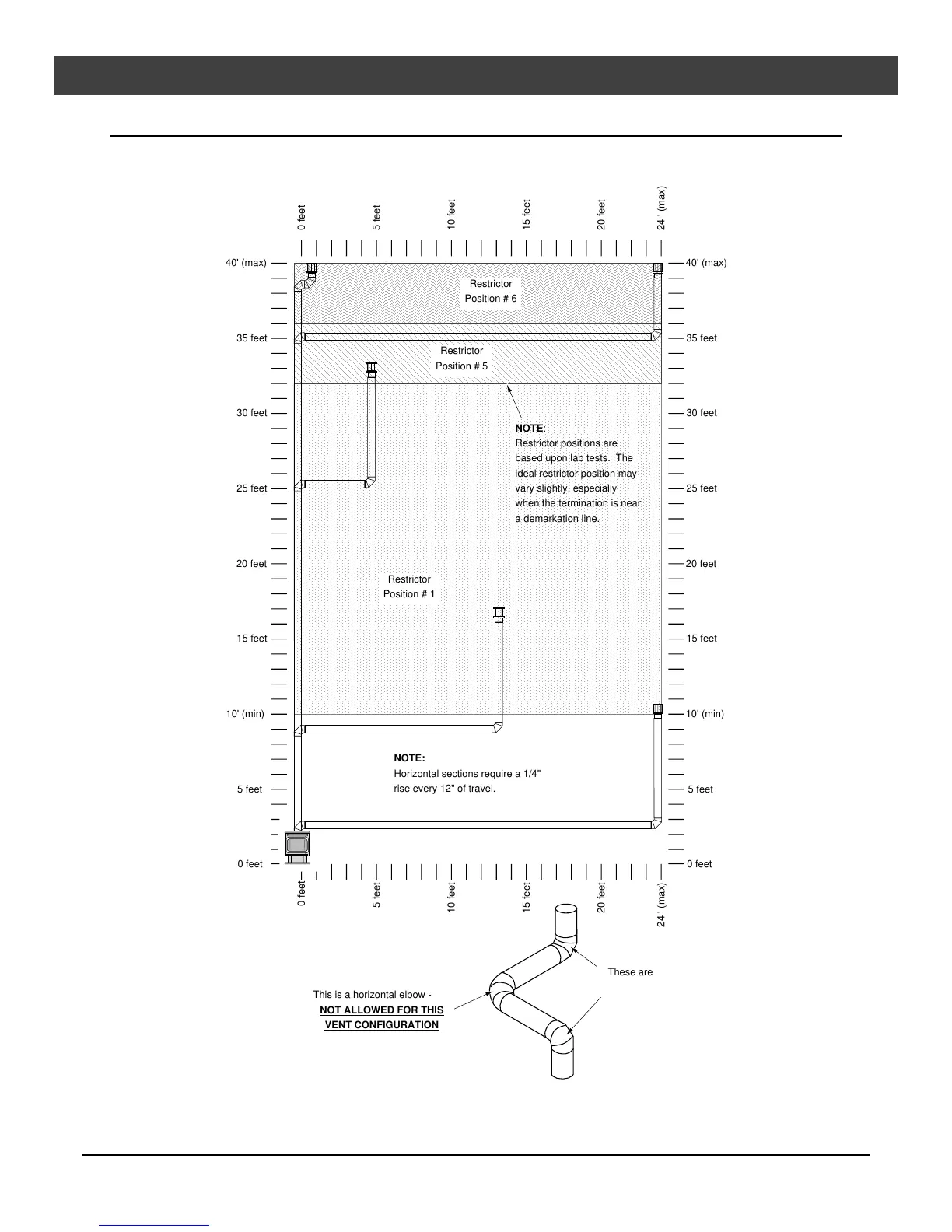

Vertical Terminations with Two 90° Elbows

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor

position.

AAAAAAAAAAAAAAAAAAAAA

5 feet

10' (min)

15 feet

20 feet

25 feet

30 feet

0 feet

40' (max)

5 feet

0 feet

5 feet

10' (min)

15 feet

20 feet

25 feet

30 feet

40' (max)

Restrictor

Position # 5

NOTE:

Restrictor positions are

based upon lab tests. The

ideal restrictor position may

vary slightly, especially

when the termination is near

a demarkation line.

Restrictor

Position # 6

10 feet

15 feet

20 feet

24 ' (max)

0 feet

5 feet

10 feet

15 feet

20 feet

24 ' (max)

35 feet35 feet

Restrictor

Position # 1

NOTE:

Horizontal sections require a 1/4"

rise every 12" of travel.

This is a horizontal elbow -

NOT ALLOWED FOR THIS

VENT CONFIGURATION

These are

vertical elbows.
