Installation (For Qualified Installers Only) 13
© Travis Industries 4080725 100-01154

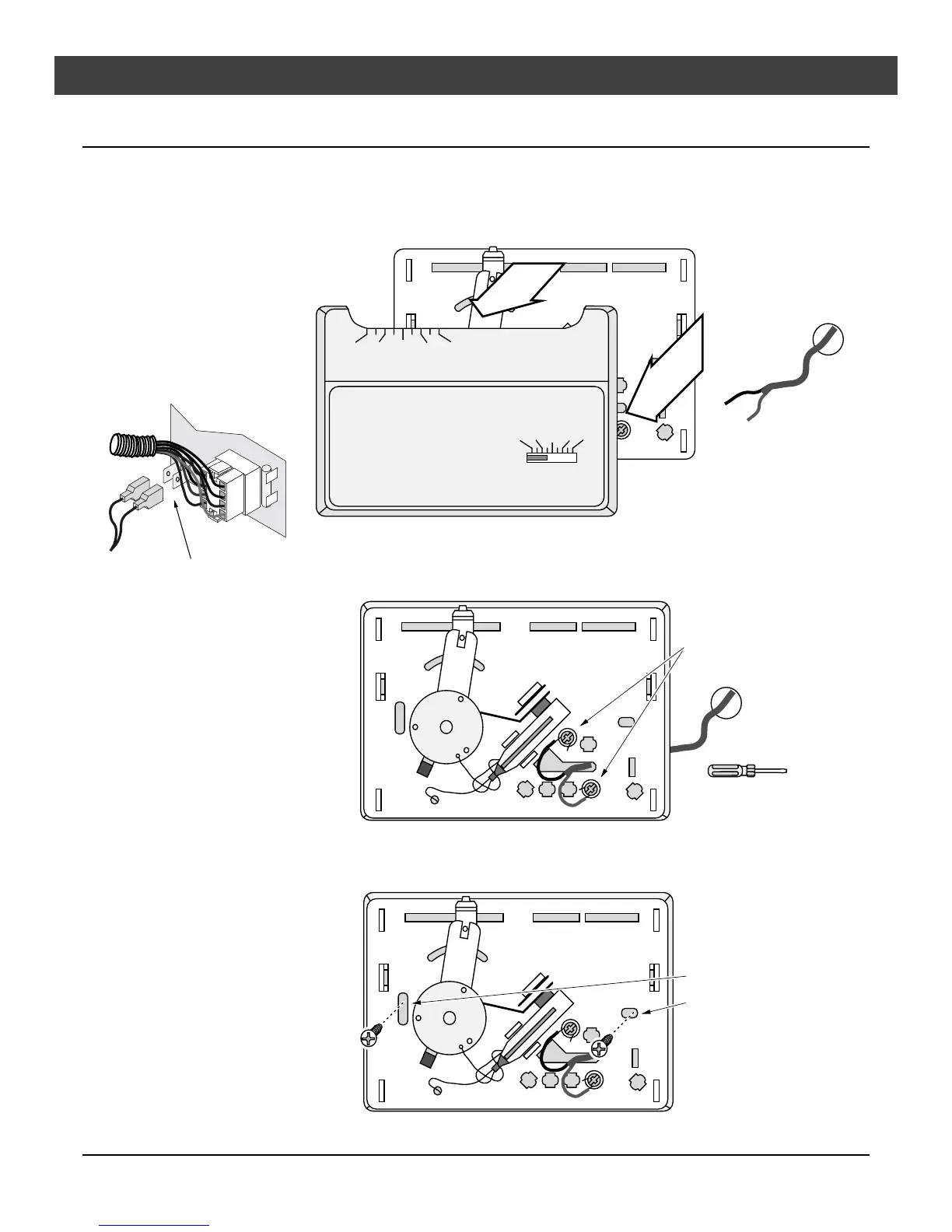

Thermostat Installation
! Do not connect 120 VAC to the thermostat circuit of this heater (do not use a
household thermostat used for a wall-board or other electical heater).
A thermostat is included with this heater (part # 99300650). Follow the directions below to install.
1 Attach the thermostat
wire to the circuit board
(see the illustration
below). Route the wire
through the back of the
heater (away from any hot
or moving components).
Attach the quick-connects
to the two posts near the
molex connector on the
circuit board (orientation
does not mater).
2 Determine a location for
the thermostat that is
within range of the 20'
length of thermostat wire.
It should be centralized in
the room and away from
the heater. The wire may
be routed externally on
the wall or behind the wall
(preferred).
3 Follow the directions to
the right to attach the
thermostat and
thermostat wires.
50 60 70 80 90
50 60 70 80 90
Robertshaw
Run the thermostat wires
through the wall (cut off excess
wire, leaving 6” of slack).
Pull the cover off the thermostat
Expose 1/2” of wire and
attach to these two posts.
Standard
Screwdriver
Attach the thermostat to
the wall through these
two holes.
To Next Page
