Avalon Stove - Sweeping Ash into Ashpan

32 Maintenance
© Travis Industries 4080725 100-01154
Weekly Maintenance (or every 5 bags of pellets) - continued

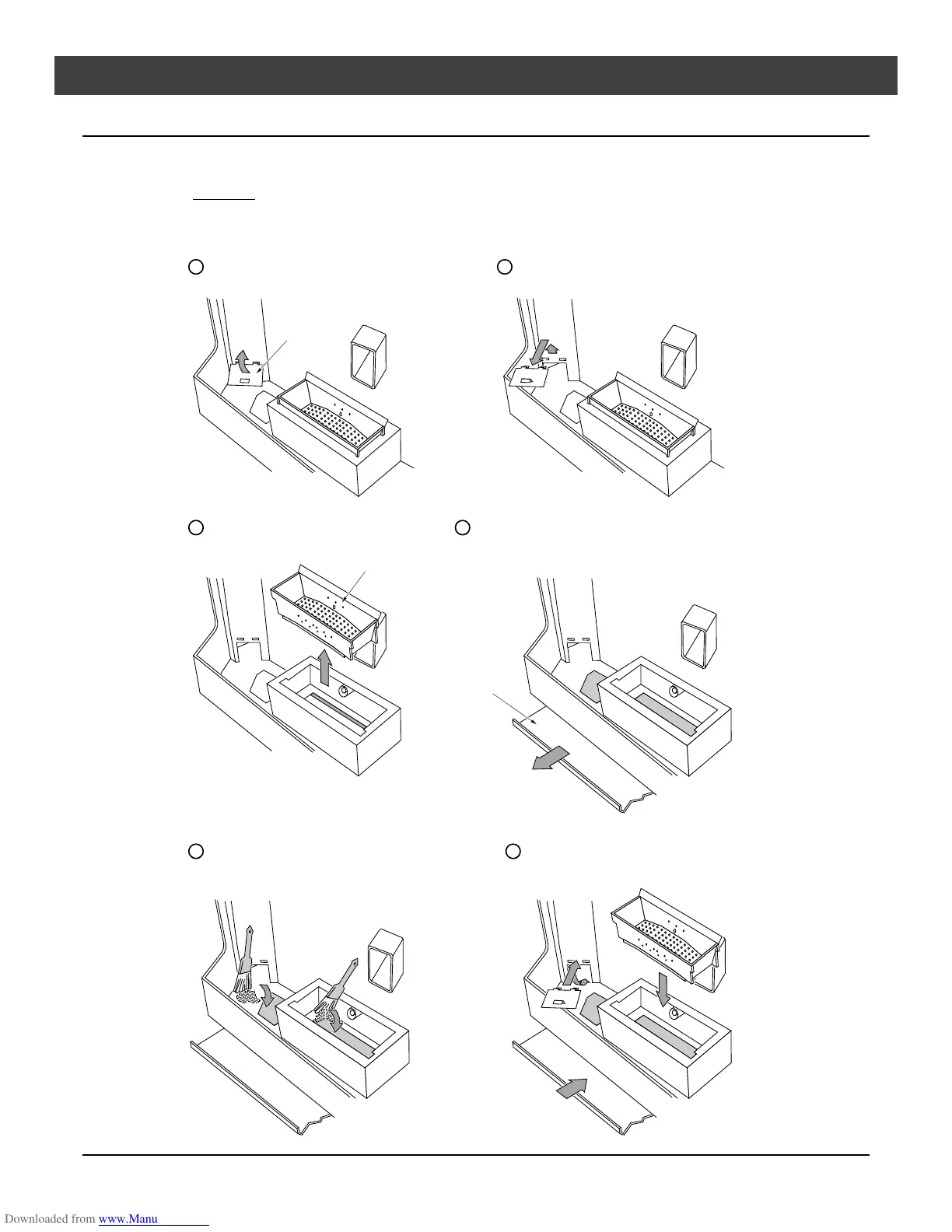

Sweep Ash Into Ashpan
Swing the side ash trap door up.
Lift it up and away from the firebox.
Repeat for the opposite side.
Lift the firepot out of its holder.
Slide the ash pan trap door forward to expose the ash
dumps (the door can be removed and cleaned if necessary)
Brush all flyash into the ash dumps, including
the flyash inside the firepot holder.
Replace the ash trap doors and firepot.
Slide the ash pan trap door forward.
WARNING:
The firebox becomes very hot during operation. Let the stove cool completely before conducting service.
a
f
e
d
c
b
Ash Pan
Trap Door
Firepot
Ash Trap
Door
